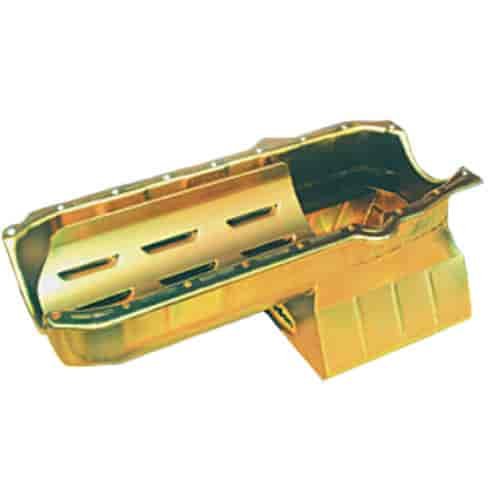

Small Block Chevy Oil Pan 1955-79 Small Block

Name: Small Block Chevy Oil Pan 1955-79 Small Block
Brand: MILODON
SKU: 697-30908
Price: 419.95 USD
Availability: InStock

^$419⁹⁵

1 left in stock

Ships Tomorrow

Lowest Price Guarantee

Chevy

1955-79 Small Block
Low Profile Stoker
Left Hand Dipstick
6-Quart Capacity Plus Filter
8-1/4'' Deep Sump

Using the same design as the 697-30900, this 'Stroker' version will accommodate a 4' stroke with steel Eagle style rods. The pan front is deeper to allow the use of a full-length louvered style windage tray fastened in the pan, yet will fit stock crossmember cars without modification and allows the use of stock style starter and oil filter. Use oil pump pickup 697-18301 with Melling 689-M99HV oil pump, Milodon oil pump pickup 697-18314 with 697-18750 oil pump,
Oil pump shaft 697-23050,
Oil pan gasket 697-40100,
Rear pan baffle 697-32500,
Dipstick 697-22000.

Deep-Sump Oil Pans Maximize Engine Performance

Milodon Street/Strip Oil Pans are designed to provide maximum performance for your vehicle. These well-engineered oil pans release additional horsepower, increase engine life and oil control. Deep sumps provide ample oil supply and low profiles provide maximum ground clearance (clears stock chassis, steering, and most headers as listed). Street/Strip Oil Pans are a necessity where high-volume oil pumps and increased RPM ranges are used.

Street/Strip: Low-Profile
Low-profile "triangulated" sump design gives both adequate ground clearance and sufficient oil capacity for any high-performance use. This pan is equally suited for use on the street or strip. Oil control baffles 100% subdue oil movement and provide increased horsepower.

Street/Strip: Low-Profile Stroker
High-horsepower output design, front of the oil pan is deeper to allow the use of a full-length, competition-style tray (Tray is attached in the pan by quick-release fasteners to allow easy removal). The pan fits stock cross members without modification, as well as stock starters and oil filters.

Street/Strip: Street Performance
Appearing stock on the outside contains sufficient horizontal baffling to 100% control oil movement. Pan mounted windage tray provides increased power yet requires no mounting to the block. A complete low-cost performance package with a magnetic drain plug.

Part TypeOil Pan

Product LineMilodon Street/Strip Oil Pans

BrandMILODON

Package Height8.8

Package Width12.9

Package Length25.5

Weight14.65 PG

Part CategoryPerformance Parts

Oil Pan Capacity6 quarts

Hardware IncludedNo

Dipstick ProvisionYes

BaffledYes
