MILODONPART NUMBER: 697-30914

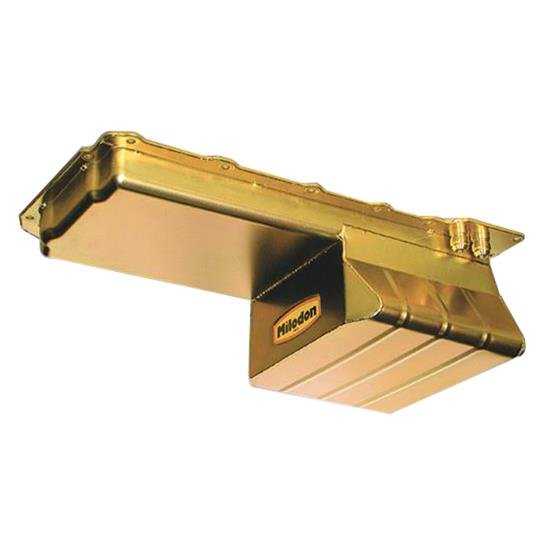

Chevy LS-Series Oil Pan LS1/LS2/LS6/LS7

Name: Chevy LS-Series Oil Pan LS1/LS2/LS6/LS7
Brand: MILODON
SKU: 697-30914
Price: 469.95 USD
Availability: InStock

^$469⁹⁵

Ships on 09/11/2026

Lowest Price Guarantee

Chevy

LS1/LS2/LS6/LS7
Fits Early Camaro, Chevelle, Nova, 55-57 Chevy
7-Quart Capacity

Use with
Pickup 697-18290
Oil Filter, Remote 697-21575
Dipstick 697-22006
Windage Tray 697-32150

Part TypeOil Pan

BrandMILODON

Package Height8.6

Package Width12.5

Package Length25.5

Weight12.64 PG

Part CategoryPerformance Parts

Oil Pan Capacity7 quarts

Hardware IncludedNo

Dipstick ProvisionNo

BaffledYes

Sump StyleWet

Pickup IncludedNo

Drain Plug Thread Size (In.)1/2-20

QuantitySold individually

Oil Pan FinishGold iridited

Kickout PositionDriver and passenger side

Oil Pan MaterialSteel

Maximum Stroke With Oe Rod4.25 in (107.95 mm)

Gaskets IncludedNo

Oil Pan Depth6 in (152.4 mm)

Rear Main Seal Style1-piece

Sump LocationRear

Crank Scraper IncludedNo

Windage Tray IncludedNo

Part FitmentSemi Universal

Kicked OutYes

Stroker ClearancedYes

Vendor Part Number30914

Package Qty1

Package TypeEA
