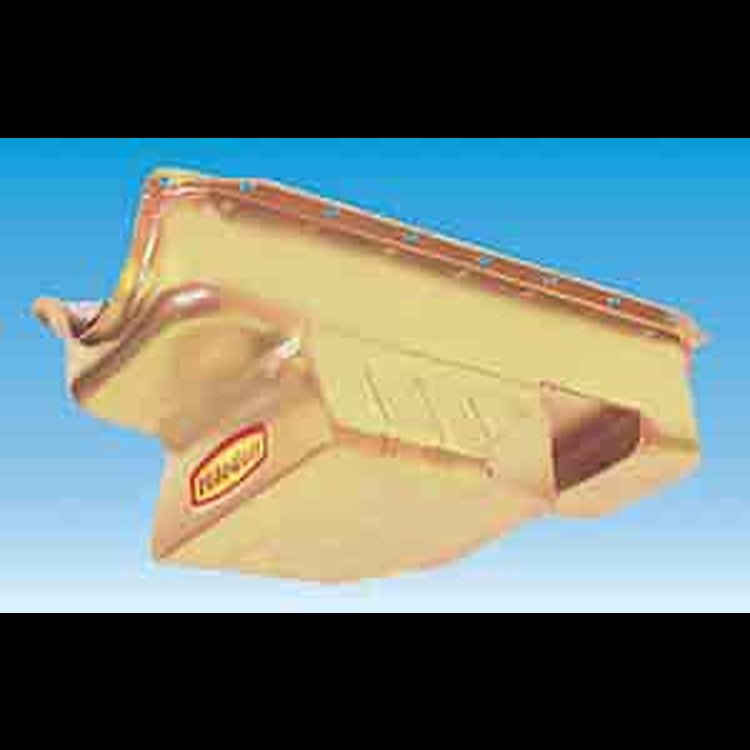

Small Block Chrysler Oil Pan 318/340ci

Name: Small Block Chrysler Oil Pan 318/340ci
Brand: MILODON
SKU: 697-30936
Price: 529.95 USD
Availability: InStock

^$529⁹⁵

Ships on 09/08/2026

Lowest Price Guarantee

Chrysler

318/340ci
7-Quart Capacity Plus Filter
7-3/4'' Deep Sump

Designed for 318 & 340 Chrysler engines where superior oil control and increased ground clearance is desired. Features increased oil capacity, which is an absolute must to handle the demands of higher RPM, while increasing oil control by raising the rear pan floor. Highly efficient horizontal baffles are used for oil control while the sump rear features added large tube header clearance. Due to pan being moved up toward crank, there is no room for a windage tray.
Oil Pump and Pick-Up Required:
Pick-Up: 697-18346
Oil Pump, high volume, Melling: 689-M72HV
Oil Pan Gasket - 318, 340: 697-40600
Oil Pan Bolts, vibration resistant: 697-85020
Oil Pan Studs, vibration resistant nuts: 697-81320
Dipstick: 697-22060

Deep-Sump Oil Pans Maximize Engine Performance

Milodon Street/Strip Oil Pans are designed to provide maximum performance for your vehicle. These well-engineered oil pans release additional horsepower, increase engine life and oil control. Deep sumps provide ample oil supply and low profiles provide maximum ground clearance (clears stock chassis, steering, and most headers as listed). Street/Strip Oil Pans are a necessity where high-volume oil pumps and increased RPM ranges are used.

Street/Strip: Low-Profile
Low-profile "triangulated" sump design gives both adequate ground clearance and sufficient oil capacity for any high-performance use. This pan is equally suited for use on the street or strip. Oil control baffles 100% subdue oil movement and provide increased horsepower.

Street/Strip: Low-Profile Stroker
High-horsepower output design, front of the oil pan is deeper to allow the use of a full-length, competition-style tray (Tray is attached in the pan by quick-release fasteners to allow easy removal). The pan fits stock cross members without modification, as well as stock starters and oil filters.

Street/Strip: Street Performance
Appearing stock on the outside contains sufficient horizontal baffling to 100% control oil movement. Pan mounted windage tray provides increased power yet requires no mounting to the block. A complete low-cost performance package with a magnetic drain plug.

Part TypeOil Pan

Product LineMilodon Street/Strip Oil Pans

BrandMILODON

Package Height8.3

Package Width12.3

Package Length25.5

Weight10.82 PG

Part CategoryPerformance Parts

Oil Pan Capacity7 quarts

Hardware IncludedNo

Dipstick ProvisionNo

BaffledYes
