Vehicle Info NeededMILODONPART NUMBER: 697-30980

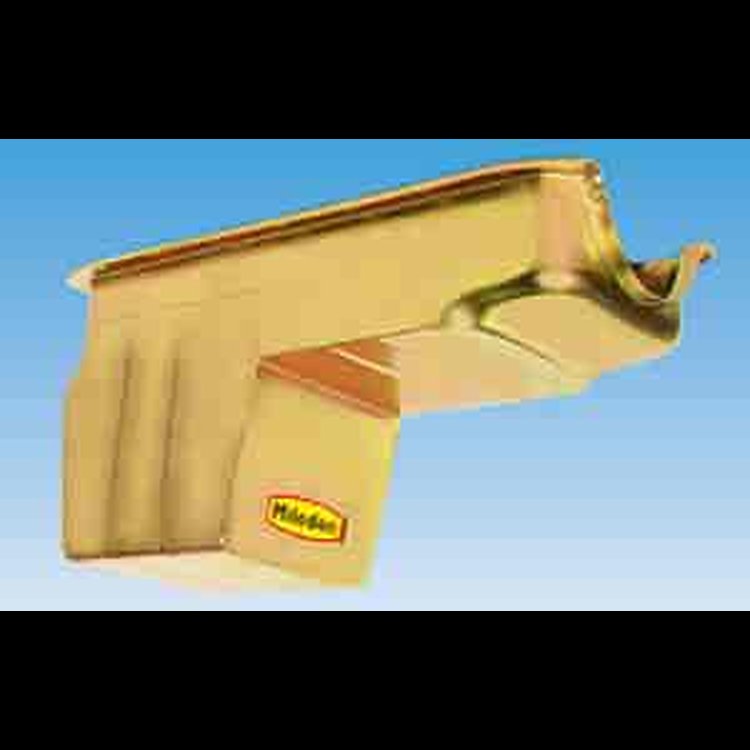

Off-Road Oil Pan Small Block Chrysler 318-340
$52995
Ships on 09/09/2026
Lowest Price GuaranteeChrysler
- Off-Road Oil Pan
- Small Block Chrysler 318-340
- 2WD & 4WD
- 8 Quarts & Filter
- 10-3/4'' Deep Sump
This pan is designed for street cruising to heavy off road use. Sump at the rear has additional control for power and increased capacity to longevity. Uses a Ford Style screw-in or Milodon CNC stainless steel dipstick. Fits 2 and 4 wheel drive vehicles and vans.
Milodon's Truck and Off-Road Oil Pans are designed with one-piece stamped steel and features ultra straight rails that ensures no gaskets leaks. Built-in horizontal baffle delivers ultimate oil control for light to heavy off-road use. These pans fit 4wd chassis applications.
Features:
- For 4wd chassis applications
- For rear sump
Show More
- One-piece stamped steel
- Ulta straight rails
- Built-in horizontal baffle
- Made in the U.S.A.
JEGS Easy Kits are designed by JEGS professionals so you get all the parts you need.
Part TypeOil Pan
Product LineMilodon Truck and Off-Road Oil Pans
BrandMILODON
Package Height11.7
Package Width12.2
Package Length25.2
Weight12.2 PG
Part CategoryPerformance Parts
Oil Pan Capacity8 quarts
Hardware IncludedNo
Dipstick ProvisionYes
BaffledYes
Sump StyleWet
Pickup IncludedNo
Drain Plug Thread Size (In.)1/2-20
QuantitySold individually
Oil Pan FinishGold iridited
Oil Pan MaterialSteel
Maximum Stroke With Oe Rod4.125 in (104.775 mm)
Gaskets IncludedNo
Oil Pan Depth10.75 in (273.1 mm)
Rear Main Seal Style2-piece
Sump LocationRear
Crank Scraper IncludedNo
Windage Tray IncludedNo
Dipstick LocationDriver
Part FitmentSemi Universal
Kicked OutNo
Stroker ClearancedYes
Vendor Part Number30980
Package Qty1
Package TypeEA
