Vehicle Info NeededMILODONPART NUMBER: 697-31065

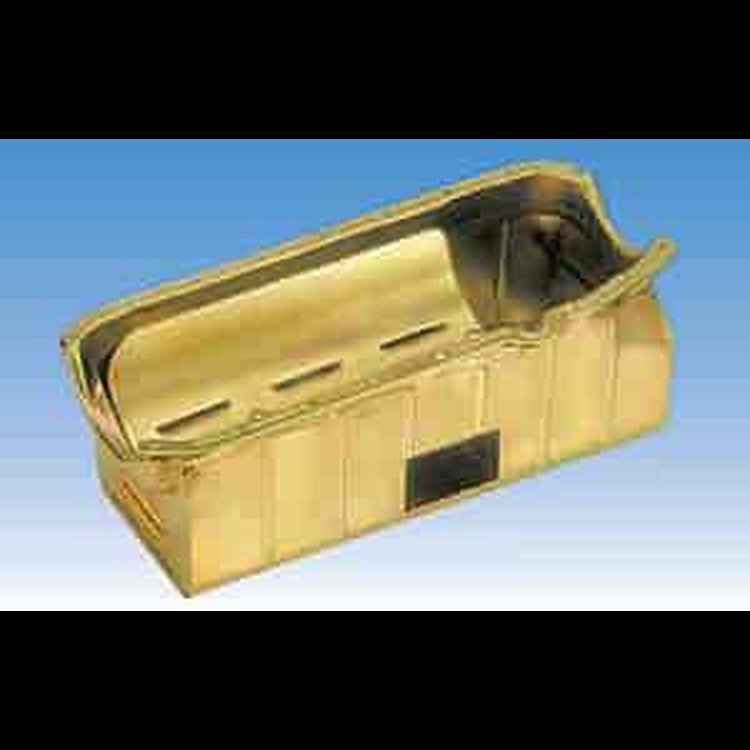

Drag Racing Oil Pan 1962-67 Chevy II
$68995
Ships on 09/11/2026
Lowest Price GuaranteeSmall Block Chevy
- Drag Racing Oil Pan
- 1962-67 Chevy II
- Small Block Chevy (1955-79)
- Left Hand Dipstick
- Pan Capacity: 7 Quarts Plus Filter
- Front Depth: 7-1/2"
- Rear Depth: 8-1/2"
Designed for stock chassis 1962-67 Chevy II cars competing in Super Stock, Super Gas and bracket classes. A full length sump design is used with a tube through the pan to allow use of the stock drag link location. The full length louvered windage tray and double trap doors provide a positive oil control system resulting in consistent oil pressure and significant horsepower output increases. Will not allow power steering.
Part TypeOil Pan
BrandMILODON
Package Height9.7
Package Width12.2
Package Length25.5
Weight15.4 PG
Part CategoryPerformance Parts
Oil Pan Capacity7 quarts
Hardware IncludedNo
Dipstick ProvisionYes
BaffledYes
Sump StyleWet
Pickup IncludedNo
Drain Plug Thread Size (In.)1/2-20
QuantitySold individually
Oil Pan FinishGold iridited
Oil Pan MaterialSteel
Maximum Stroke With Oe Rod4 in (101.6 mm)
Gaskets IncludedNo
Oil Pan Depth8.5 in (215.9 mm)
Rear Main Seal Style2-piece
Sump LocationFull
Crank Scraper IncludedNo
Windage Tray IncludedYes
Dipstick LocationDriver
Part FitmentSemi Universal
Kicked OutNo
Stroker ClearancedYes
Vendor Part Number31065
Package Qty1
Package TypeEA
