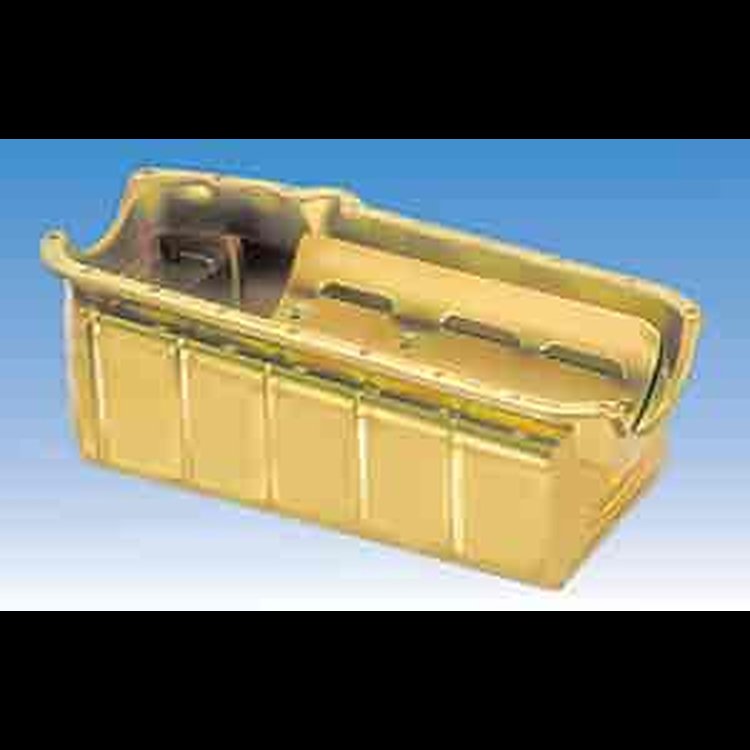

Drag Racing Oil Pan Small Block Chevy (1955-79)
InfoVehicle Info Needed
MILODONPART NUMBER: 697-31170

Drag Racing Oil Pan Small Block Chevy (1955-79)

$68995
ShippingShips on 11/23/2026
Lowest PriceLowest Price Guarantee

Items You Need

Blue RTV, Temperature Resistant up to 500 degrees [3 oz. Tube]

JEGS

Blue RTV, Temperature Resistant up to 500 degrees [3 oz. Tube]

Part Number : 555-28030
$799$8.99
You Save$1.00
Black RTV, Temperature Resistant up to 625 Degrees F [3.8 oz. Tube]

JEGS

Black RTV, Temperature Resistant up to 625 Degrees F [3.8 oz. Tube]

Part Number : 555-28035
$799$8.99
You Save$1.00
Pressure Bead Gasket Maker Silicone 8 oz

JEGS

Pressure Bead Gasket Maker Silicone 8 oz

Part Number : 555-28040
$2099$23.99
You Save$3.00
Pressure Bead Gasket Maker Silicone 8 oz

JEGS

Pressure Bead Gasket Maker Silicone 8 oz

Part Number : 555-28045
$1899$20.99
You Save$2.00

Small Block Chevy
    Drag Racing Oil Pan
  • Small Block Chevy (1955-79)
  • Left Hand Dipstick
  • Pan Capacity: 7 Quarts Plus Filter
  • Front Depth: 6-1/2"
  • Rear Depth: 7-1/2"

    The Pro Competition Series oil pan is one of the highest horsepower output pans on the market today. It is manufactured from lightweight steel that is less prone to crack. These pans come with a full kick-out for maximum horsepower that requires a small style starter or available with a notched kick-out to allow use of the factory starter. Featuring a double trap door assembly and a full length semi-circular louvered windage tray system which 100% controls oil movement to yield consistent oil pressure and significantly increased power.

Milodon's Drag Racing Oil Pans are designed to provide maximum performance and lubrication for your engine during adverse conditions like rapid acceleration. Each pan features a sump and baffling that is engineered to give you more horsepower and oil control. Milodon's distinctive gold irridated finish ensure long lasting durability and reliabilty.

Features:

  • Provides maximum performance and lubrication
  • Ample oil supply under rapid acceleration
  • Sump and baffling for full oil control
Show More
  • Gold irridated finish
  • Includes magnetic drain plug

JEGS Easy Kits are designed by JEGS Professionals to help you get all the performance parts you need.

Part TypeOil Pan
Product LineMilodon Drag Racing Oil Pans
BrandMILODON
Package Height8.7
Package Width12.5
Package Length25.4
Weight14.89 PG
Part CategoryPerformance Parts
Oil Pan Capacity7 quarts
Hardware IncludedNo
Dipstick ProvisionYes
BaffledYes
Sump StyleWet
Pickup IncludedNo
Drain Plug Thread Size (In.)1/2-20
QuantitySold individually
Oil Pan FinishGold iridited
Kickout PositionDriver and passenger side
Oil Pan MaterialSteel
Maximum Stroke With Oe Rod4 in (101.6 mm)
Gaskets IncludedNo
Oil Pan Depth7.5 in (190.5 mm)
Rear Main Seal Style2-piece
Sump LocationFull
Crank Scraper IncludedNo
Windage Tray IncludedYes
Dipstick LocationDriver
Part FitmentSemi Universal
Kicked OutYes
Stroker ClearancedYes
Vendor Part Number31170
Package Qty1
Package TypeEA
