Vehicle Info NeededMILODONPART NUMBER: 697-31180

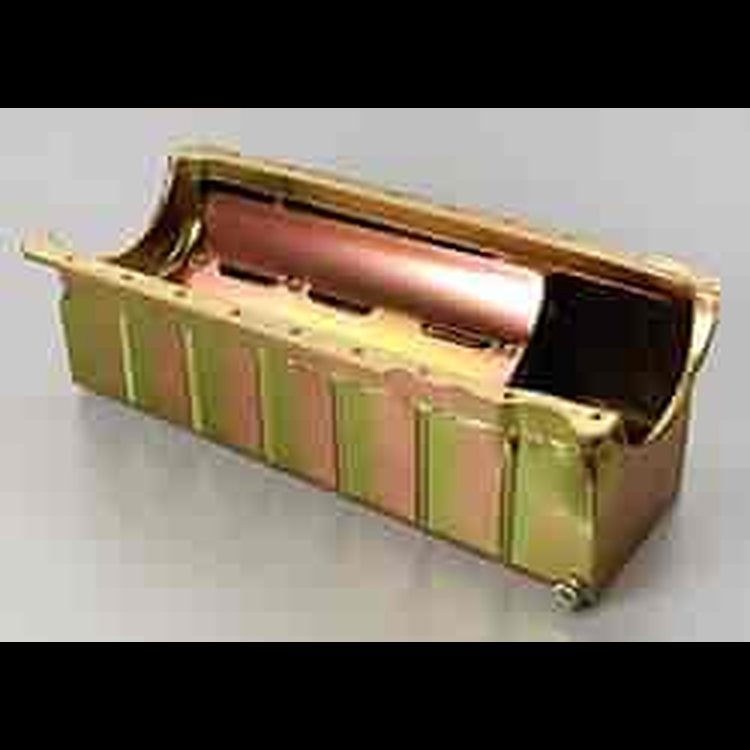

Drag Racing Oil Pan Big Block Chevy Mark V & Gen VI
$84995
Ships on Sep 03, 2026
Lowest Price GuaranteeBig Block Chevy
- Drag Racing Oil Pan
- Big Block Chevy Mark V & Gen VI
- Full Kick-Out
- Pan Capacity: 8 Quarts Plus Filter
- Front Depth: 6-1/2"
- Rear Depth: 7-3/4"
This lightweight steel pan with a starter notch for a large diameter flywheel starter or full length kick-out for maximum horsepower that requires a mini-style starter. Features two trap door assemblies and a full length semi-circular windage tray. With most aluminum rods, pan will fit up to 4-1/2" stroke without modification.
NOTE: For very big stroker engines or engines that see 7-8 second passes with nitrous or blown use, the Extreme Duty pickup 697-18202 should be used.
Milodon's Drag Racing Oil Pans are designed to provide maximum performance and lubrication for your engine during adverse conditions like rapid acceleration. Each pan features a sump and baffling that is engineered to give you more horsepower and oil control. Milodon's distinctive gold irridated finish ensure long lasting durability and reliabilty.
Features:
- Provides maximum performance and lubrication
- Ample oil supply under rapid acceleration
- Sump and baffling for full oil control
Show More
- Gold irridated finish
- Includes magnetic drain plug
JEGS Easy Kits are designed by JEGS Professionals to help you get all the performance parts you need.
Part TypeOil Pan
Product LineMilodon Drag Racing Oil Pans
BrandMILODON
Package Height8.3
Package Width12.4
Package Length25.3
Weight17.0 PG
Part CategoryPerformance Parts
Oil Pan Capacity8 quarts
Hardware IncludedNo
Dipstick ProvisionNo
BaffledYes
Sump StyleWet
Pickup IncludedNo
Drain Plug Thread Size (In.)1/2-20
QuantitySold individually
Oil Pan FinishGold iridited
Kickout PositionPassenger side
Oil Pan MaterialSteel
Maximum Stroke With Oe Rod4.5 in (114.3 mm)
Gaskets IncludedNo
Oil Pan Depth7.75 in (196.9 mm)
Rear Main Seal Style1-piece
Sump LocationFull
Crank Scraper IncludedNo
Windage Tray IncludedYes
Part FitmentSemi Universal
Kicked OutYes
Stroker ClearancedYes
Vendor Part Number31180
Package Qty1
Package TypeEA
