Vehicle Info NeededMILODONPART NUMBER: 697-31275

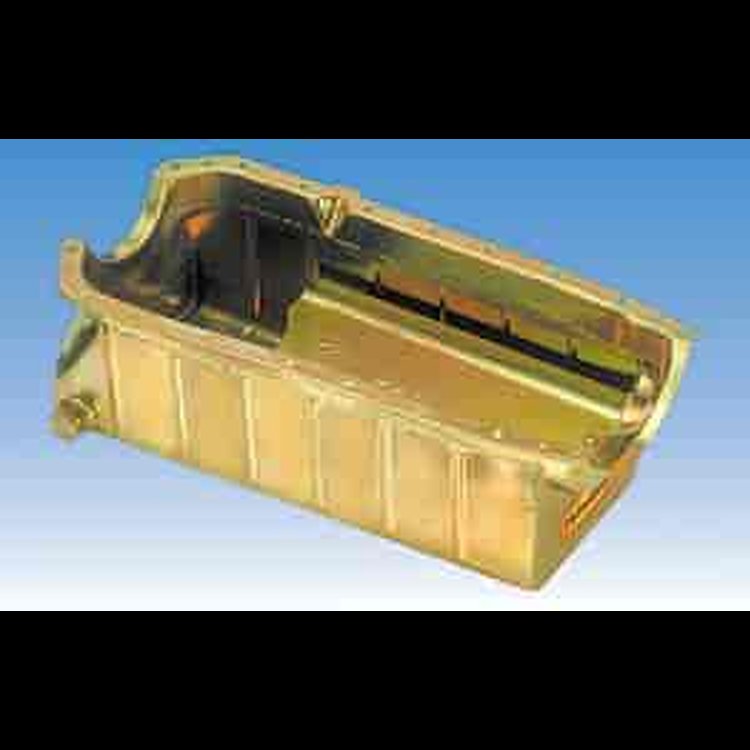

Jet Drive Oil Pan 350-455 Oldsmobile
$65995
Ships on 09/30/2026
Lowest Price GuaranteeJet Drive (Flywheel Aft)
- Jet Drive Oil Pan
- 350-455 Oldsmobile
- 10 Quarts & Filter
- 7-5/8'' Sump Depth
- Rear Main Seal Style: 2-piece
- Sump Style: Wet
- Oil Pan Capacity: 10 quarts
- Oil Pan Depth (in): 7.625 in.
- Oil Pan Material: Steel
- Oil Pan Finish: Gold iridited
- Sump Location: Full
- Baffled: Yes
- Kicked Out: Yes
- Kickout Position: Driver and passenger side
- Stroker Clearanced: No
- Maximum Stroke with OE Rod: 4.250 in.
- Dipstick Provision: Yes
- Windage Tray Included: Yes
- Pickup Included: No
- Crank Scraper Included: No
- Gaskets Included: No
- Hardware Included: No
- Quantity: Sold individually.
Part TypeOil Pan
BrandMILODON
Package Height8.9
Package Width13.7
Package Length25.5
Weight16.25 PG
Part CategoryPerformance Parts
Oil Pan Capacity10 quarts
Drain Plug Thread Size-12 AN
Hardware IncludedNo
Dipstick ProvisionNo
BaffledYes
Sump StyleWet
Pickup IncludedNo
QuantitySold individually
Oil Pan FinishGold iridited
Kickout PositionDriver and passenger side
Oil Pan MaterialSteel
Maximum Stroke With Oe Rod4.5 in (114.3 mm)
Gaskets IncludedNo
Oil Pan Depth7.625 in (193.7 mm)
Rear Main Seal Style2-piece
Sump LocationFull
Crank Scraper IncludedYes
Windage Tray IncludedYes
Part FitmentSemi Universal
Kicked OutYes
Stroker ClearancedYes
Vendor Part Number31275
Package Qty1
Package TypeEA
