Vehicle Info NeededMILODONPART NUMBER: 697-31470

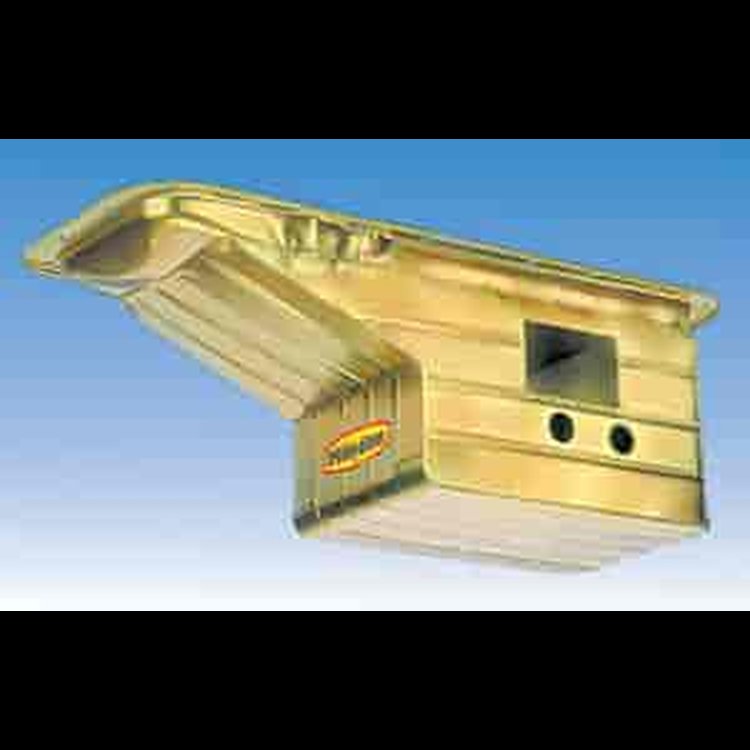

Drag Racing Oil Pan Big Block Chrysler 383 / 426 / 440
$68995
Ships on 09/18/2026
Lowest Price GuaranteeBig Block Chrysler
- Drag Racing Oil Pan
- Big Block Chrysler 383 / 426 / 440
- Pan Capacity: 9 Quarts Plus Filter
- Sump Depth: 8-1/4"
Originally designed for Super Stock campaigners and today used on all Super Comp, Super Gas and bracket classes as well, this design moves the sump completely to the rear, where it should have been in the first place, and where the oil wants to go! Fits '65 and later chassis for all Wedge and Hemi engines. Pan and a Milodon oiling system will allow the 8500 RPM plus range. Uses a tie rod tube through which the drag link is inserted after engine installation. Minor drag link modification may be necessary due to frame, steering and engine mount misplacement or movement from stock.
Part TypeOil Pan
BrandMILODON
Package Height8.8
Package Width12.2
Package Length25.6
Weight12.0 PG
Part CategoryPerformance Parts
Oil Pan Capacity9 quarts
Hardware IncludedNo
Dipstick ProvisionNo
BaffledYes
Sump StyleWet
Pickup IncludedNo
Drain Plug Thread Size (In.)1/2-20
QuantitySold individually
Oil Pan FinishGold iridited
Oil Pan MaterialSteel
Maximum Stroke With Oe Rod4.75 in (120.65 mm)
Gaskets IncludedNo
Oil Pan Depth8.25 in (209.6 mm)
Rear Main Seal Style2-piece
Sump LocationRear
Crank Scraper IncludedNo
Windage Tray IncludedNo
Part FitmentSemi Universal
Kicked OutNo
Stroker ClearancedYes
Vendor Part Number31470
Package Qty1
Package TypeEA
