Vehicle Info NeededMILODONPART NUMBER: 697-31486

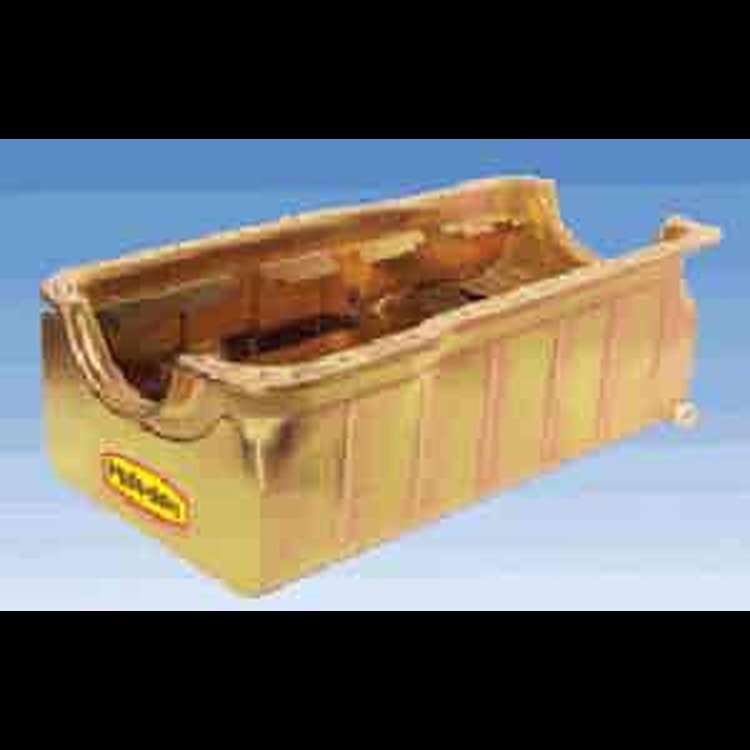

Drag Racing Oil Pan Small Block Ford 302
$73595
Ships on 09/18/2026
Lowest Price GuaranteeFord
- Drag Racing Oil Pan
- Small Block Ford 302
- Pan Capacity: 8 Quarts Plus Filter
- Front Depth: 6-1/2"
- Rear Depth: 7-1/2"
Used in Super Comp, Super Gas and like classes. This maximum power pan has a full kickout and internal crank scraper. The pan features excellent ground clearance and a quick release, louvered, full length windage tray. Double trap door assemblies control oil movement for consistent oil pressure even during shut off. This 302 pan fits standard and SVO blocks. Constructed from durable but light weight steel
Milodon's Drag Racing Oil Pans are designed to provide maximum performance and lubrication for your engine during adverse conditions like rapid acceleration. Each pan features a sump and baffling that is engineered to give you more horsepower and oil control. Milodon's distinctive gold irridated finish ensure long lasting durability and reliabilty.
Features:
- Provides maximum performance and lubrication
- Ample oil supply under rapid acceleration
- Sump and baffling for full oil control
Show More
- Gold irridated finish
- Includes magnetic drain plug
JEGS Easy Kits are designed by JEGS Professionals to help you get all the performance parts you need.
Part TypeOil Pan
Product LineMilodon Drag Racing Oil Pans
BrandMILODON
Package Height8.7
Package Width12.2
Package Length25.4
Weight15.47 PG
Part CategoryPerformance Parts
Oil Pan Capacity8 quarts
Hardware IncludedNo
Dipstick ProvisionNo
BaffledYes
Sump StyleWet
Pickup IncludedNo
Drain Plug Thread Size (In.)1/2-20
QuantitySold individually
Oil Pan FinishGold iridited
Kickout PositionPassenger side
Oil Pan MaterialSteel
Maximum Stroke With Oe Rod3.47 in (88.138 mm)
Gaskets IncludedNo
Oil Pan Depth7.5 in (190.5 mm)
Sump LocationFull
Crank Scraper IncludedYes
Windage Tray IncludedYes
Part FitmentSemi Universal
Kicked OutYes
Stroker ClearancedYes
Vendor Part Number31486
Package Qty1
Package TypeEA
