MILODONPART NUMBER: 697-31506

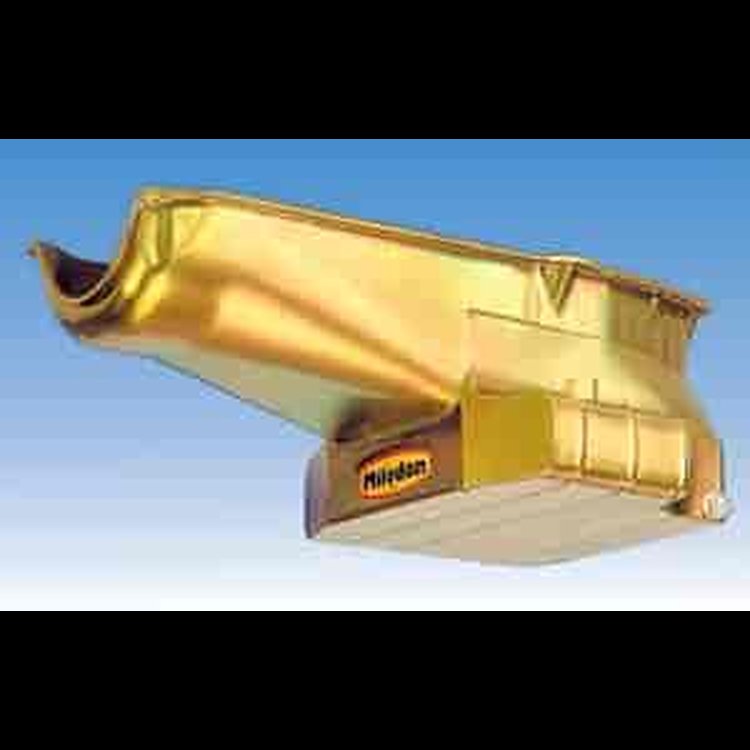

Road Race Oil Pan Small Block Chevy 2-Piece Rear Main
$59595
Chevy
- Road Race Oil Pan
- Small Block Chevy 2-Piece Rear Main
- Dart SHP Block 1980-85
- Right Hand Dipstick
- 7-Quart Capacity Plus Filter
- 10'' Sump Length
- 7-7/8'' Sump Depth
Requires pickup 697-18465.
Milodon's Road Race Oil Pans are proven highly effective in SCCA and other road race competitions, delivering good oil supply on left and right turns due to the trap door baffles. The windage tray within the oil pan keeps oil under control and reduced splash-back onto the crank for maximum performance. These pans fit the most popular chassis and offer low-profile clearance for pro-touring style lowered suspension.
Part TypeOil Pan
Product LineMilodon Road Race Oil Pans
BrandMILODON
Package Height8.7
Package Width15.3
Package Length25.3
Weight14.1 PG
Part CategoryPerformance Parts
Oil Pan Capacity7 quarts
Hardware IncludedNo
Dipstick ProvisionYes
BaffledYes
Sump StyleWet
Pickup IncludedNo
Drain Plug Thread Size (In.)1/2-20
QuantitySold individually
Oil Pan FinishGold iridited
Kickout PositionDriver and passenger side
Oil Pan MaterialSteel
Maximum Stroke With Oe Rod3.75 in (95.25 mm)
Gaskets IncludedNo
Oil Pan Depth7.875 in (200 mm)
Rear Main Seal Style2-piece
Sump LocationRear
Crank Scraper IncludedNo
Windage Tray IncludedNo
Dipstick LocationPassenger side
Part FitmentSemi Universal
Kicked OutYes
Stroker ClearancedNo
Vendor Part Number31506
Package Qty1
Package TypeEA
