MILODONPART NUMBER: 697-31507

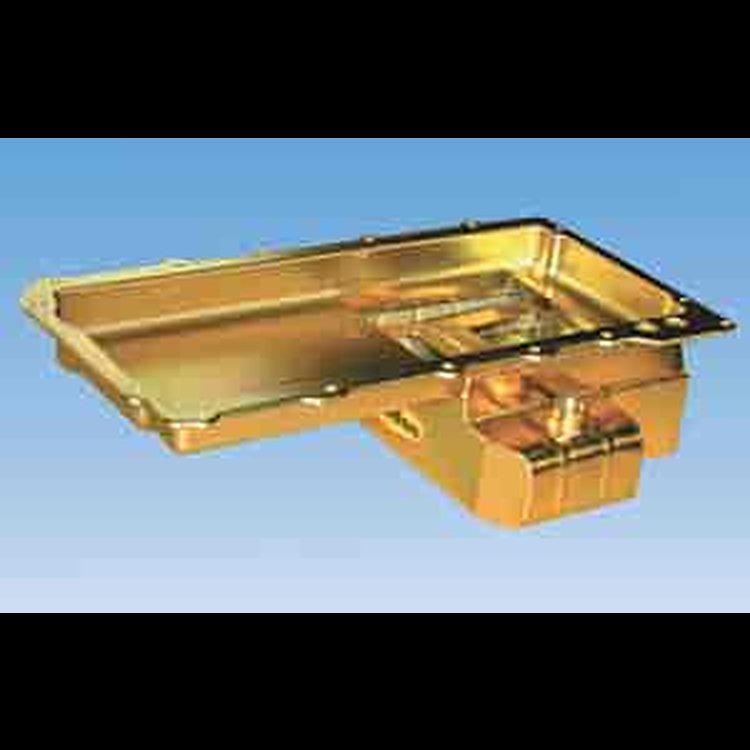

Road Race Oil Pan LS1/LS2/LS6/LS7
$61495
Chevy
- Road Race Oil Pan
- LS1/LS2/LS6/LS7
- 7-Quart Capacity Plus Filter
- 9-1/2'' Sump Length
- 5-3/8'' Sump Depth
Requires pickup 697-18292.
Milodon's Road Race Oil Pans are proven highly effective in SCCA and other road race competitions, delivering good oil supply on left and right turns due to the trap door baffles. The windage tray within the oil pan keeps oil under control and reduced splash-back onto the crank for maximum performance. These pans fit the most popular chassis and offer low-profile clearance for pro-touring style lowered suspension.
Part TypeOil Pan
Product LineMilodon Road Race Oil Pans
BrandMILODON
Package Height8.6
Package Width13.9
Package Length25.3
Weight14.31 PG
Part CategoryPerformance Parts
Oil Pan Capacity6 1/2 quarts
Hardware IncludedNo
Dipstick ProvisionNo
BaffledYes
Sump StyleWet
Pickup IncludedNo
Drain Plug Thread Size (In.)1/2-20
QuantitySold individually
Oil Pan FinishGold iridited
Kickout PositionDriver and passenger side
Oil Pan MaterialSteel
Maximum Stroke With Oe Rod4.25 in (107.95 mm)
Gaskets IncludedNo
Oil Pan Depth5.375 in (136.5 mm)
Rear Main Seal Style1-piece
Sump LocationRear
Crank Scraper IncludedNo
Windage Tray IncludedNo
Part FitmentSemi Universal
Kicked OutYes
Stroker ClearancedYes
Vendor Part Number31507
Package Qty1
Package TypeEA
Items You Need
Some parts are not legal for use in California or other states with similar laws / regulations
