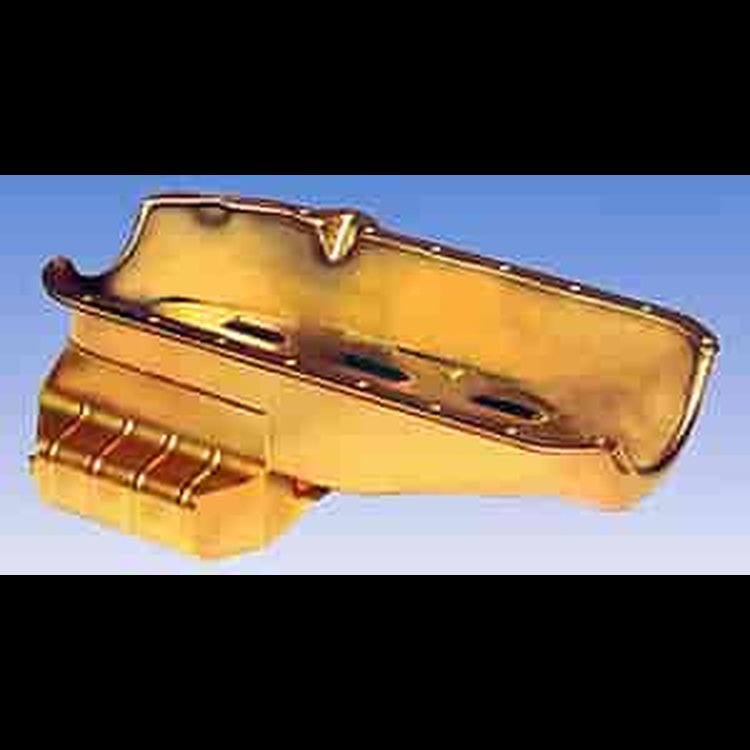

Oil Pan - Street Stock/Hobby Stock Small Block Chevy 86-Up

Name: Oil Pan - Street Stock/Hobby Stock Small Block Chevy 86-Up
Brand: MILODON
SKU: 697-31511
Price: 249.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Small Block Chevy

Small Block Chevy 86-Up
Right Hand Dipstick
7-1/2" Sump Depth
6 Quarts Plus Filter

Designed with a right side kickout for higher level IMCA Modifieds and Street Stocks. It contains sufficient horizontal baffling to 100% control 6 quarts of oil, assuring an ample oil supply even on very rough tracks. A Dzus-fastened, full-length windage tray is mounted in the oil pan. Matched pick-up locates in the right rear corner position for maximum oil pressure supply.Pan will fit a 3-3/4' stroke crank and Carillo or Eagle style rod. One-piece rear main seal.
Oil Pump and Pick-Up Required.
Pickup (Melling:689-M55HV/689-10550): 697-18308
Oil Pump: 697-18750
Pump Shaft: 697-23050
Oil Pan Gasket: 697-40100
Oil Pan Gasket, 1-Piece: 697-41000
Rear Pan Baffle: 697-32500
Oil Pan Bolts (Vibration Resistant): 697-85000
