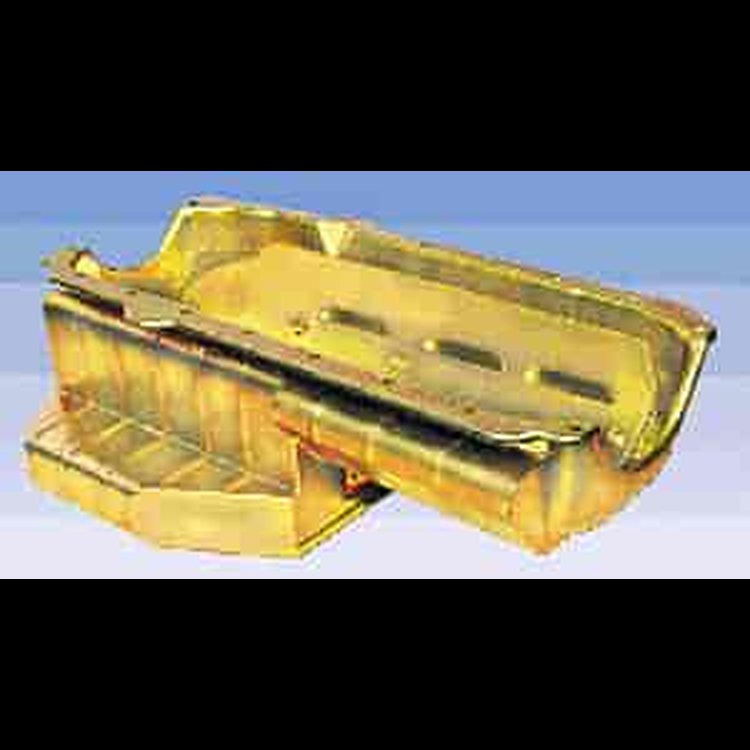

Oil Pan - Late Model & Sprint/Pro-Competition Small Block Chevy/Dart SHP Block

Name: Oil Pan - Late Model & Sprint/Pro-Competition Small Block Chevy/Dart SHP Block
Brand: MILODON
SKU: 697-31516
Price: 679.95 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Small Block Chevy

Small Block Chevy/Dart SHP Block
Passenger Side Dip Stick
7 Quarts Plus Filter
7" Sump Depth

This high output pan design has a full kickout and a full length tray. It is designed for cars that don't use a stock crossmember location. The highly effective tray door system and the quick release windage tray assembly that is fastened into the pan provide 100% oil control at all times. This results in consistent oil pressure both in and out of the corners, as well as increases power output. A temperature sender bung is also welded into the pan. Part 697-31515 has a sealed, dirt-proof screw-in dipstick.
Pan will fit a 4" stroke crank with Carillo or Eagle style rods.
Oil Pump and Pick-Up Required.
Pickup with 697-18750 (Melling: 689-M55HV): 697-18306
Oil Pump: 697-18750
Pump Shaft: 697-23050
Rear Pan Baffle:
Rear Pan Baffle: 697-32500
Oil Pan Bolts (Vibration Resistant): 697-85000
Note: Pick-Up to Pan Bottom Clearance MUST Be Checked and Adjusted from 1/4" to 3/8".
