Product Discontinued
MILODONPART NUMBER: 697-31524

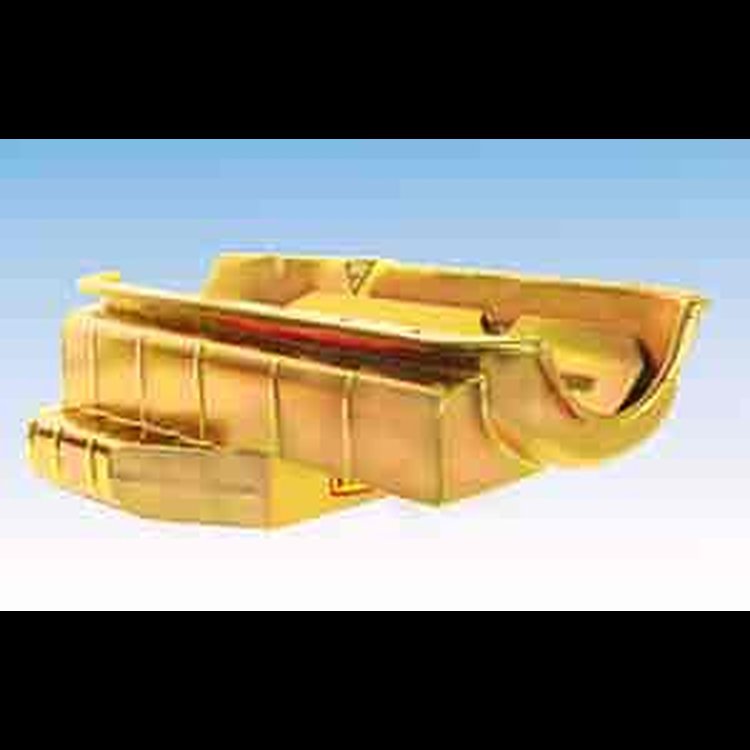

Oil Pan - Late Model/Sprint/Pro Competition 1955-1979 Small Block Chevy
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Small Block Chevy
- Milodon Oil Pan - Late Model/Sprint/Pro Competition
- 1955-1979 Small Block Chevy
- Left Hand Dipstick
- 7 Quarts Plus Filter
- 6-1/2" Sump Depth
This high output pan design has a full kickout and full length tray. It is designed for cars that don't use a stock crossmember location. The highly effective tray door system and the quick release windage tray assembly fastened into the pan provide 100% oil control. This results in consistent oil pressure both in and out of the corners, as well as increases power output. The sprint car style pan is available with a seales, dirt proof, screw is style dipstick where the late model style does not but both feature a 1/2' temp. sender bung welded into the pan.
Will fit a 4.00' stroke crank with Eagle style rods. - Pickup Tube For Pump (697-18750) 697-18309
- Oil Pump 697-18750 (Melling 689-M55HV Oil Pump)
- Pump Shaft 697-23050
- Oil Pan Gasket 1955-85 697-40100
- One Piece Gasket 1955-79 697-41000
- Rear Pan Baffle 697-32500
- Oil Pan Bolts 697-85000
Part TypeOil Pan
BrandMILODON
Package Height8.5
Package Width15.3
Package Length25.6
Weight16.2 PG
Part CategoryPerformance Parts
Oil Pan Capacity7 quarts
Hardware IncludedNo
Dipstick ProvisionYes
BaffledYes
Sump StyleWet
Pickup IncludedNo
Drain Plug Thread Size (In.)1/2-20
QuantitySold individually
Oil Pan FinishGold iridited
Kickout PositionDriver and passenger side
Oil Pan MaterialSteel
Maximum Stroke With Oe Rod4 in (101.6 mm)
Gaskets IncludedNo
Oil Pan Depth6.5 in (165.1 mm)
Rear Main Seal Style2-piece
Sump LocationRear
Crank Scraper IncludedNo
Windage Tray IncludedYes
Dipstick LocationDriver
Part FitmentSemi Universal
Kicked OutYes
Stroker ClearancedYes
Vendor Part Number31524
Package Qty1
Package TypeEA
