Vehicle Info NeededMILODONPART NUMBER: 697-31557

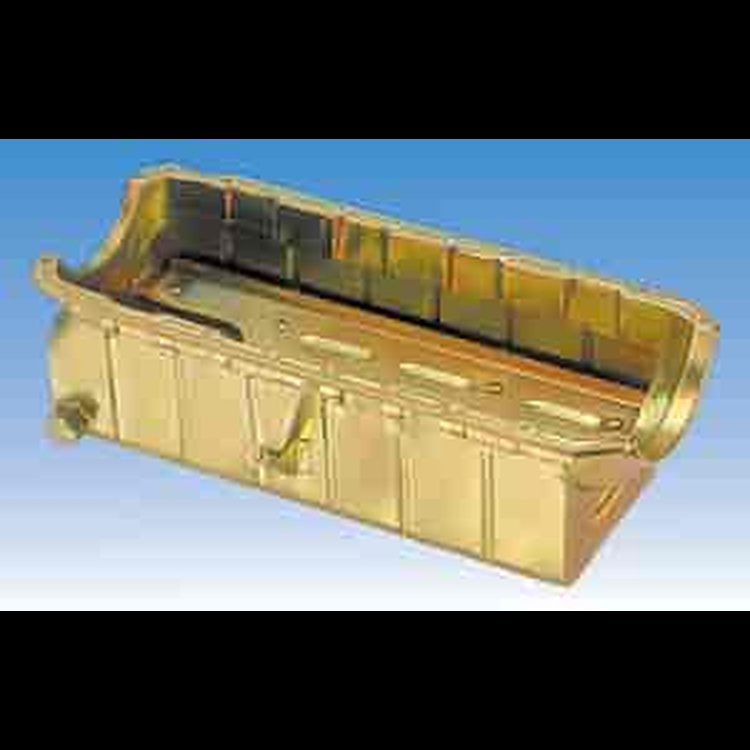

Offshore/Jet Drive Oil Pan Big Block Chevy Mark IV 66-90
$66995
2 left in stock
Ships Tomorrow
Lowest Price GuaranteeOffshore & Jet Drive
- Offshore/Jet Drive Oil Pan
- Big Block Chevy Mark IV 66-90
- 10 Quarts & Filter
- 7-1/2'' Sump Depth
Designed for multi-engined all-out racing, as well as, jet drive boats used for skiing and recreational uses. Built from super heavy duty 16 gauge steel to withstand all types of abuse and severe racing conditions. Designed with ample bilge clearance in mind, as well as 100% oil control as a priority. This pan's full length windage tray and double trap door system provide complete oil control yielding increased power, reduced oil temperatures and consistent oil supply and pressure. With most aluminum rods, pan will fit up to 4-1/2" stroke with modification.High oil capacity is required due to the high loads placed on the engine by a jet drive and the resulting engine killing high oil temperatures. Features a water-tight, screw-in dipstick which does not allow bilge water to enter the pan and contaminate the oil.
Requires - Milodon Oil Pump p/n 697-18760
- Oil Pump Pickup p/n 697-18302
Milodon's Marine Oil Pans are specially designed for marine applications, available for Flywheel Aft and Flywheel Forward installations. These marine pans are fully baffled, trap-doored and include full length windage trays for maximum performance and oil control under severe boat handling. Pans are made from extra heavy 16 gauge steel to withstand harsh marine conditions and extreme use. A large 12AN oil drain is suitable for installing external oil drain line.
Show More
Features:
- For Flywheel Aft and Flywheel Forward
- Fully baffled, trap-doored and include full length windage trays
- Extra heavy 16 gauge steel
- Large 12AN oil drain
- 8 quart plus filter oil capacities
Part TypeOil Pan
Product LineMilodon Marine Oil Pans
BrandMILODON
Package Height8.7
Package Width12.2
Package Length25.3
Weight16.95 PG
Part CategoryPerformance Parts
Oil Pan Capacity10 quarts
Drain Plug Thread Size-12 AN
Hardware IncludedNo
Dipstick ProvisionYes
BaffledYes
Sump StyleWet
Pickup IncludedNo
QuantitySold individually
Oil Pan FinishGold iridited
Oil Pan MaterialSteel
Maximum Stroke With Oe Rod4.5 in (114.3 mm)
Gaskets IncludedNo
Oil Pan Depth7.5 in (190.5 mm)
Rear Main Seal Style2-piece
Sump LocationFull
Crank Scraper IncludedNo
Windage Tray IncludedYes
Dipstick LocationPassenger side
Part FitmentSemi Universal
Kicked OutNo
Stroker ClearancedYes
Vendor Part Number31557
Package Qty1
Package TypeEA
