Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

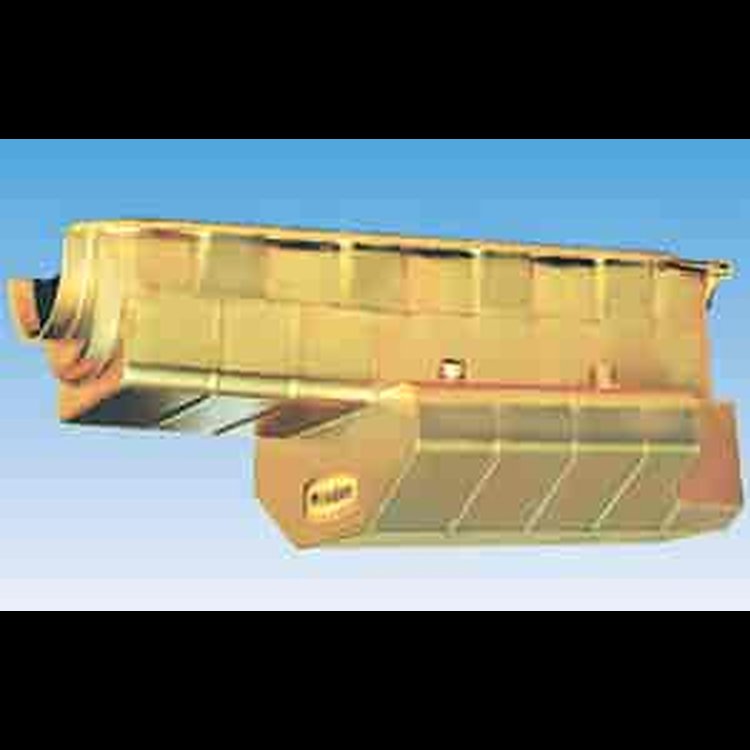

Offshore & Jet Drive
- Offshore Oil Pan
- Big Block Chevy Mark IV 65-90
- 12 Quarts & Filter
- 9-1/2'' Sump Depth
Part TypeOil Pan
BrandMILODON
Package Height11.4
Package Width15.6
Package Length25.5
Weight21.35 PG
Part CategoryPerformance Parts
Oil Pan Capacity12 quarts
Drain Plug Thread Size-12 AN
Hardware IncludedNo
Dipstick ProvisionYes
BaffledYes
Sump StyleWet
Pickup IncludedNo
QuantitySold individually
Oil Pan FinishGold iridited
Oil Pan MaterialSteel
Maximum Stroke With Oe Rod4.5 in (114.3 mm)
Gaskets IncludedNo
Oil Pan Depth9.5 in (241.3 mm)
Rear Main Seal Style2-piece
Sump LocationRear
Crank Scraper IncludedNo
Windage Tray IncludedYes
Dipstick LocationDriver
Part FitmentSemi Universal
Kicked OutNo
Stroker ClearancedYes
Vendor Part Number31560
Package Qty1
Package TypeEA
