Vehicle Info NeededMILODONPART NUMBER: 697-31595

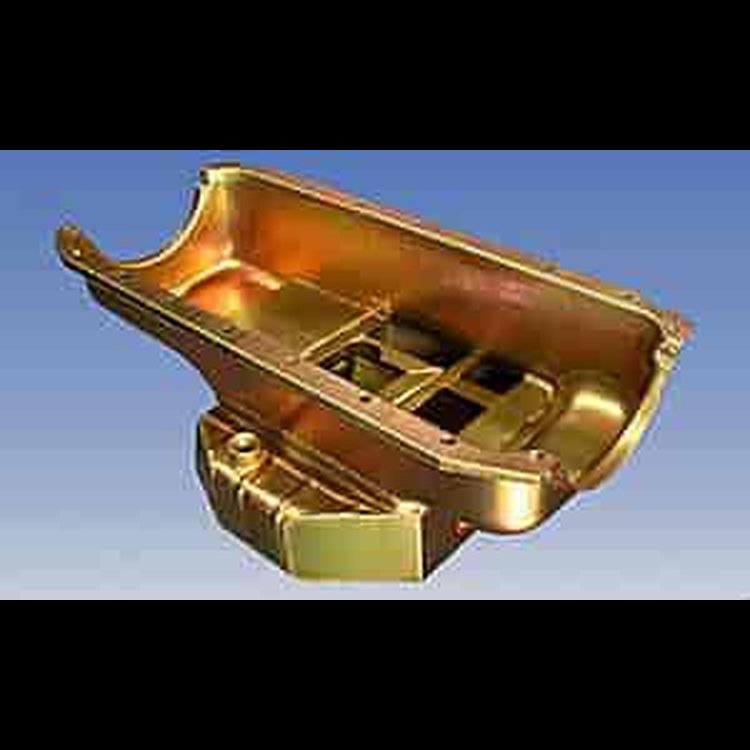

Road Race Oil Pan Chrysler 360
$65995
Ships on 09/11/2026
Lowest Price GuaranteeChrysler
- Road Race Oil Pan
- Chrysler 360
- A/B/E Body Cars
- 6-Quart Capacity Plus Filter
- 7'' Sump Depth
A stock location sump pan designed for use in a A, B or E body stock Chrysler chassis where maximum ground clearance is required without sacrificing performance. Road Race sump increases capacity and allows ample ground clearance. Five highly effective trap doors provide 100% oil control. This results in consistent oil pressure under heavy acceleration and in & out of the corners, as well as increases power output. Has 1/2" pipe fitting for an oil temp sender. Stock steering will not interfere with this pan. Pan is shallower than any others and sits above the k-member.Requires pickup 697-18343.
- Will fit 1967-1972 chassis, 1973-1976 chasis and early 67-72 chassis with the 73-76 K-member.
- Pan Capacity is 6 Quarts Plus Filter
- 7 1/4" Deep, 9" Long, 13" Wide Sump
Note: For oil pan to work correctly, engine must have adequate oil return to the pan. Use of the Milodon windage tray adjusted properly is highly recommended.
Part TypeOil Pan
BrandMILODON
Package Height8.5
Package Width13.9
Package Length25.5
Weight12.9 PG
Part CategoryPerformance Parts
Oil Pan Capacity6 quarts
Hardware IncludedNo
Dipstick ProvisionNo
BaffledYes
Sump StyleWet
Pickup IncludedNo
Drain Plug Thread Size (In.)1/2-20
QuantitySold individually
Oil Pan FinishGold iridited
Kickout PositionDriver and passenger side
Oil Pan MaterialSteel
Gaskets IncludedNo
Oil Pan Depth7.25 in (184.2 mm)
Rear Main Seal Style2-piece
Sump LocationCenter
Crank Scraper IncludedNo
Windage Tray IncludedNo
Part FitmentSemi Universal
Kicked OutYes
Stroker ClearancedYes
Vendor Part Number31595
Package Qty1
Package TypeEA
