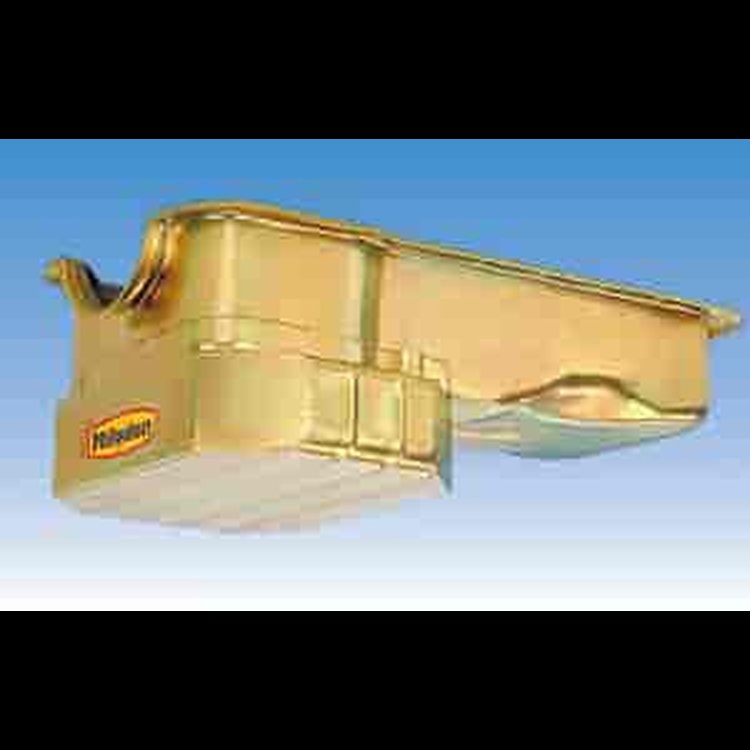

Road Race Oil Pan Ford 289/302
InfoVehicle Info Needed
MILODONPART NUMBER: 697-31600

Road Race Oil Pan Ford 289/302

$55995
ShippingShips on 09/11/2026
Lowest PriceLowest Price Guarantee

Ford
    Road Race Oil Pan
  • Ford 289/302
  • Pre-1974 Chassis
  • Front Sump
  • 7-Quart Capacity Plus Filter
  • Sump Depth 7-1/2"

    Front sump design for use in road race applications in stock pre-74 chassis and all Cobras . Features multiple baffles to provide oil supply during violent turns, acceleration and deceleration. Fits most stock chassis using front sump pan. Features multiple baffles and trap doors to provide oil supply during violent turns, acceleration and high speed deceleration. Has a 1/2" pipe oil temperature sender bung.

    Requires pickup 697-18485.

    Milodon's Road Race Oil Pans are proven highly effective in SCCA and other road race competitions, delivering good oil supply on left and right turns due to the trap door baffles. The windage tray within the oil pan keeps oil under control and reduced splash-back onto the crank for maximum performance. These pans fit the most popular chassis and offer low-profile clearance for pro-touring style lowered suspension.

Part TypeOil Pan
Product LineMilodon Road Race Oil Pans
BrandMILODON
Package Height8.5
Package Width15.2
Package Length25.2
Weight14.35 PG
Part CategoryPerformance Parts
Oil Pan Capacity7 quarts
Hardware IncludedNo
Dipstick ProvisionNo
BaffledYes
Sump StyleWet
Pickup IncludedNo
Drain Plug Thread Size (In.)1/2-20
QuantitySold individually
Oil Pan FinishGold iridited
Kickout PositionDriver and passenger side
Oil Pan MaterialSteel
Maximum Stroke With Oe Rod3.47 in (88.138 mm)
Gaskets IncludedNo
Oil Pan Depth7.5 in (190.5 mm)
Sump LocationFront
Crank Scraper IncludedNo
Windage Tray IncludedNo
Part FitmentSemi Universal
Kicked OutYes
Stroker ClearancedYes
Vendor Part Number31600
Package Qty1
Package TypeEA
