Vehicle Info NeededMILODONPART NUMBER: 697-31660

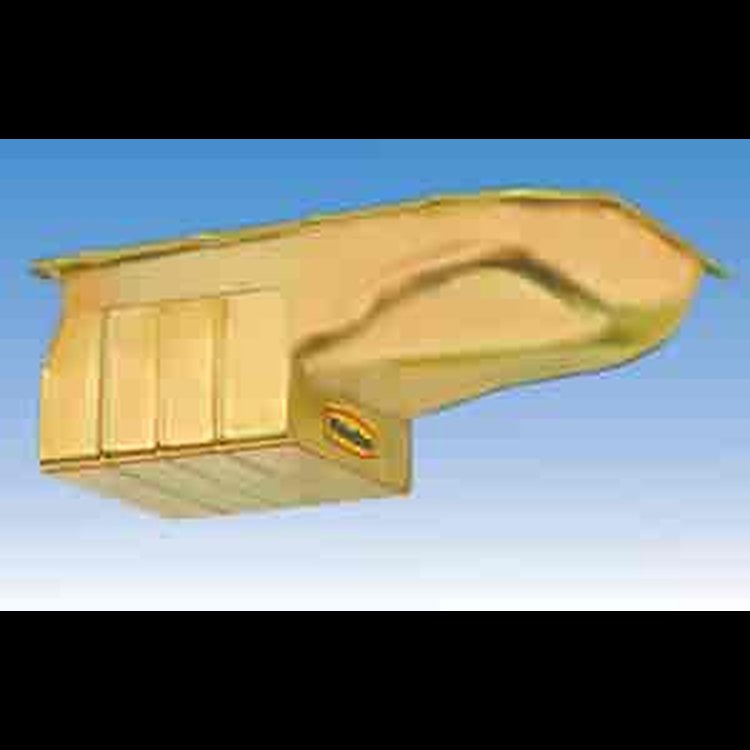

Road Race Oil Pan Pontiac 389-455
$53995
Ships on 09/14/2026
Lowest Price GuaranteePontiac
- Road Race Oil Pan
- Pontiac 389-455
- 1970-1974 Firebird
- 6-Quart Capacity Plus Filter
- Sump Depth 7-3/4"
Designed originally for performance street and road racing in the 1967 to 74 Firebird with 389-455 engines, where heavy acceleration, deceleration and hard turns are involved. Features trap door, baffle system and increased oil capacity to ensure ample oil supply. Pan has straight, non-kicked out sides to allow starter removal and extra header clearance in the tight Firebird chassis. Pan fits well with Doug's Headers with all size header tubes.Requires pickup 697-18525.
Part TypeOil Pan
BrandMILODON
Package Height8.7
Package Width13.9
Package Length25.4
Weight12.05 PG
Part CategoryPerformance Parts
Oil Pan Capacity6 quarts
Hardware IncludedNo
Dipstick ProvisionNo
BaffledYes
Sump StyleWet
Pickup IncludedNo
Drain Plug Thread Size (In.)1/2-20
QuantitySold individually
Oil Pan FinishGold iridited
Oil Pan MaterialSteel
Maximum Stroke With Oe Rod4.5 in (114.3 mm)
Gaskets IncludedNo
Oil Pan Depth7.75 in (196.9 mm)
Rear Main Seal Style2-piece
Sump LocationRear
Crank Scraper IncludedNo
Windage Tray IncludedNo
Part FitmentSemi Universal
Kicked OutNo
Stroker ClearancedYes
Vendor Part Number31660
Package Qty1
Package TypeEA
