Vehicle Info NeededMILODONPART NUMBER: 697-31665

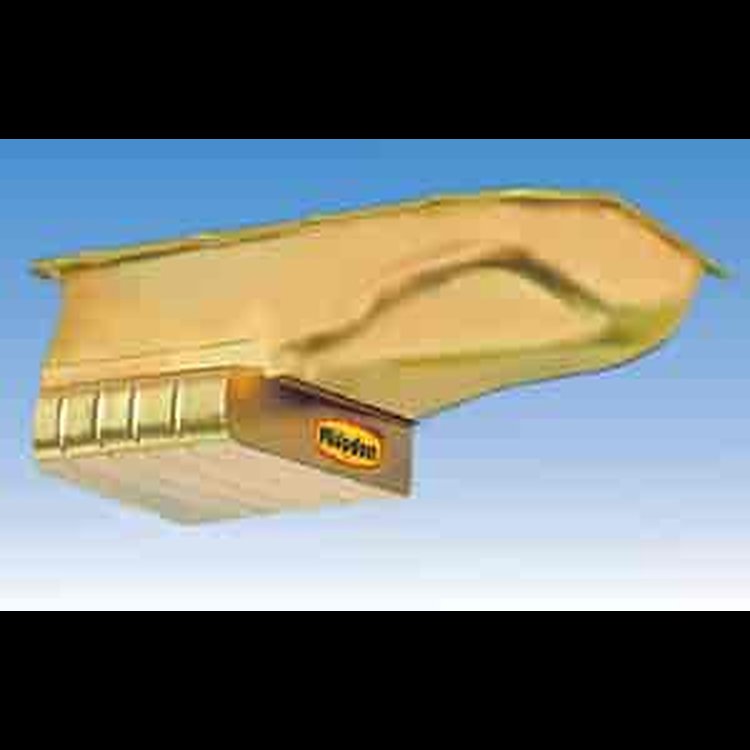

Road Race Oil Pan Pontiac 389-455
$55995
Ships on 09/15/2026
Lowest Price GuaranteePontiac
- Road Race Oil Pan
- Pontiac 389-455
- 1964-1973 GTO/LeMans
- 7-Quart Capacity Plus Filter
- Sump Depth 7-3/4"
Designed for 1964 to 73 GTO, LeMans and 1967 to 1973 Firebird with 389-455 engines in performance street and road racing where heavy acceleration, deceleration and hard turns are involved. Features trap door, baffle system and increased oil capacity to ensure ample oil supply. Angled sump front allows adequate crossmember clearance to install the engine and trans together. Fits well with Doug's Headers with all size header tubes.Requires pickup 697-18525.
Part TypeOil Pan
BrandMILODON
Package Height8.7
Package Width15.3
Package Length25.4
Weight13.3 PG
Part CategoryPerformance Parts
Oil Pan Capacity7 quarts
Hardware IncludedNo
Dipstick ProvisionNo
BaffledYes
Sump StyleWet
Pickup IncludedNo
Drain Plug Thread Size (In.)1/2-20
QuantitySold individually
Oil Pan FinishGold iridited
Kickout PositionPassenger side
Oil Pan MaterialSteel
Maximum Stroke With Oe Rod4.5 in (114.3 mm)
Gaskets IncludedNo
Oil Pan Depth7.75 in (196.9 mm)
Rear Main Seal Style2-piece
Sump LocationRear
Crank Scraper IncludedNo
Windage Tray IncludedNo
Kicked OutYes
Stroker ClearancedNo
Vendor Part Number31665
Package Qty1
Package TypeEA
