Lowest Price GuaranteeAMC

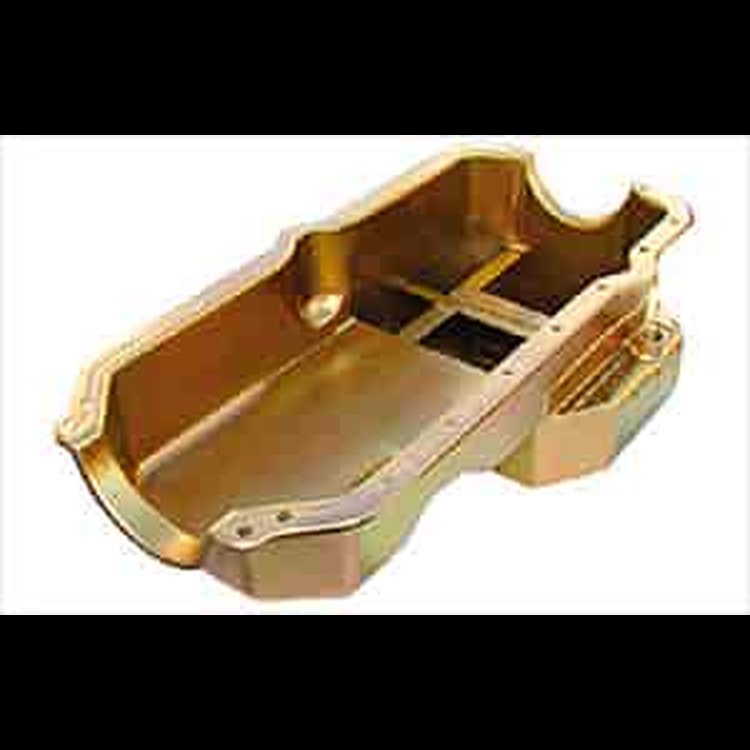

- Road Race Oil Pan
- AMC
- Internal Oil Pick-Up
- 6-Quart Capacity Plus Filter
- 7'' Sump Depth
A stock location sump pan designed for use in AMX, Javelin, Hornet and all AMC chassis where maximum ground clearance is required without sacrificing performance. Road Race design sump increases capacity and is shallower than stock to allow maximum ground clearance. Five highly effective trap doors plus two baffles provide 100% oil control. This results in consistent oil pressure under heavy acceleration and in & out of the corners, as well as increases power output. Has 1/2" pipe fitting for an oil temp sender. Stock steering will not interfere with this pan.Internal Pickup Version 697-31681 -For cruising or occational racing, this pan provides adequate street ground clearence with increased oil volume and control. Using an internal pickup this pan is adequate up to 6500-7000 RPM. Requires pickup 697-18401.
Part TypeOil Pan
BrandMILODON
Package Height8.2
Package Width13.8
Package Length25.5
Weight14.26 PG
Part CategoryPerformance Parts
Oil Pan Capacity6 quarts
Drain Plug Thread Size-12 AN
Hardware IncludedNo
Dipstick ProvisionNo
BaffledYes
Sump StyleWet
Pickup IncludedNo
QuantitySold individually
Oil Pan FinishGold iridited
Kickout PositionDriver and passenger side
Oil Pan MaterialSteel
Gaskets IncludedNo
Oil Pan Depth7 in (177.8 mm)
Rear Main Seal Style2-piece
Sump LocationRear
Crank Scraper IncludedNo
Windage Tray IncludedNo
Part FitmentSemi Universal
Kicked OutYes
Stroker ClearancedNo
Vendor Part Number31681
Package Qty1
Package TypeEA
