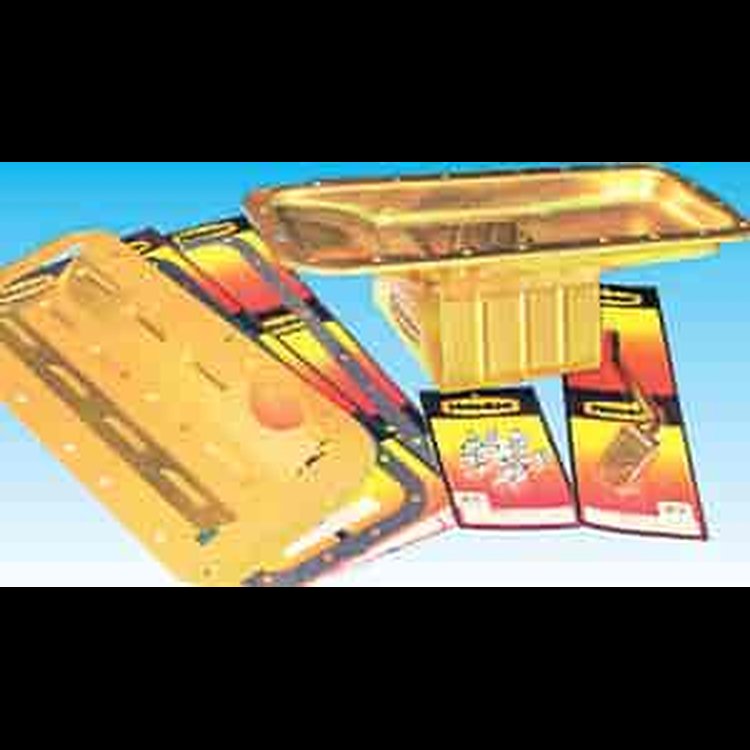

Oil Pan Kit Big Block Chrysler 383/400/440
Product Discontinued
MILODONPART NUMBER: 697-31930

Oil Pan Kit Big Block Chrysler 383/400/440

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Chrysler
    Milodon Oil Pan Kit
  • Big Block Chrysler 383/400/440
  • All Car Chassis 1965-Up
  • Will Not Fit Trucks

    Deep-Sump Oil Pans Maximize Engine Performance

    Milodon Street/Strip Oil Pans are designed to provide maximum performance for your vehicle. These well-engineered oil pans release additional horsepower, increase engine life and oil control. Deep sumps provide ample oil supply and low profiles provide maximum ground clearance (clears stock chassis, steering, and most headers as listed). Street/Strip Oil Pans are a necessity where high-volume oil pumps and increased RPM ranges are used.

    Show More

    Street/Strip: Low-Profile
    Low-profile "triangulated" sump design gives both adequate ground clearance and sufficient oil capacity for any high-performance use. This pan is equally suited for use on the street or strip. Oil control baffles 100% subdue oil movement and provide increased horsepower.

    Street/Strip: Low-Profile Stroker
    High-horsepower output design, front of the oil pan is deeper to allow the use of a full-length, competition-style tray (Tray is attached in the pan by quick-release fasteners to allow easy removal). The pan fits stock cross members without modification, as well as stock starters and oil filters.

    Street/Strip: Street Performance
    Appearing stock on the outside contains sufficient horizontal baffling to 100% control oil movement. Pan mounted windage tray provides increased power yet requires no mounting to the block. A complete low-cost performance package with a magnetic drain plug.

Part TypeOil Pan
Product LineMilodon Street/Strip Oil Pans
BrandMILODON
Package Height8.7
Package Width12.5
Package Length25.6
Weight14.76 PG
Part CategoryPerformance Parts
Oil Pan Capacity7 quarts
Hardware IncludedYes
Dipstick ProvisionYes
BaffledYes
Sump StyleWet
Pickup IncludedYes
Oil Pump Driveshaft IncludedNo
QuantitySold as a kit
Oil Pan FinishGold iridited
Dipstick IncludedNo
Kickout PositionDriver and passenger side
Oil Pump IncludedNo
Oil Pan MaterialSteel
Maximum Stroke With Oe Rod3.75 in (95.25 mm)
Gaskets IncludedYes
Oil Pan Depth7 in (177.8 mm)
Rear Main Seal Style2-piece
Sump LocationCenter
Crank Scraper IncludedNo
Windage Tray IncludedYes
Dipstick LocationDriver
Kicked OutNo
Stroker ClearancedNo
Vendor Part Number31930
Package Qty1
Package TypeEA
