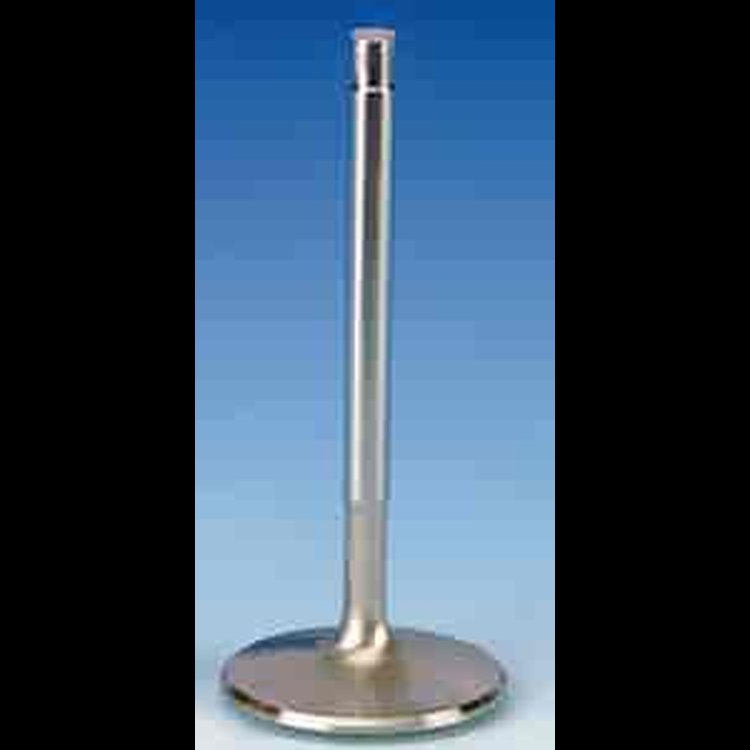

Megaflow Intake Valves Small Block Chevy
InfoVehicle Info Needed
MILODONPART NUMBER: 697-45027-8

Megaflow Intake Valves Small Block Chevy

$26495
ShippingShips on 09/08/2026
Lowest PriceLowest Price Guarantee

Small Block Chevy
    Megaflow Intake Valves
  • Small Block Chevy
  • Head Diameter: 2.08''
  • Length: 4.910''
  • 8/pkg

    Specs:
  • Type: Intake
  • Head Diameter: 2.08'
  • Stem Diameter: .341'
  • Length: 4.910'
  • Tip Length: .250'
  • Head Angle/Radius: 12° 3/8'R
  • Margin: .050'
  • Seat: .060'
  • Grams: 121.7

Milodon's Megaflow Competition Valves are independently tested to flow better, increase horsepower and extended valve spring life. These valves are much lighter than OEM and most aftermarket valves bringing quicker and higher RPM's. All valves are made of premium quality 21-4N material with one-piece forging. With a 1600°F operating temperature, megaflow valves offer high tensile strength to hold up to high valve train loads. Megaflow valves feature tulipped heads, stellite tips, undercut stems and are swirl polished, all for better flow and weight savings and resistance to wear. Megaflow competition valves are proven second to none for performance and reliability.

Show More

Features:

  • Premium Quality 21-4N Material on All Valves
  • One-Piece Forging
  • 1600ºF Operating Temperature
  • Swirl Polished for Better Flow
  • Tulipped Heads for Weight Savings
  • Undercut Stems for Greatest Flow and Lightness
  • Satellite Tips Hardened to 5S-60 Rc.
  • Holds Up to High Valve Train Loads
  • Quicker and Higher RPM Rev's
Part TypeValve
Product LineMilodon Megaflow Competition Valves
BrandMILODON
Package Height2.7
Package Width6.8
Package Length12.1
Weight2.65 PG
Part CategoryPerformance Parts
Valve Stem Diameter (Mm)8.661
Valve Head Diameter2.08 in (52.8 mm)
Overall Valve Length (Mm)124.714
Lock Groove Quantity1-groove
QuantitySold as a set of 8
Valve Seat Width0.06 in (1.5 mm)
Overall Valve Length4.91 in (124.7 mm)
Valve Material21-4N stainless steel
Valve Head Diameter (Mm)52.832
Valve Head Style12 degree dish
Valve Tip Length0.25 in (6.4 mm)
Valve Tip Length (Mm)6.35
Undercut StemYes
Valve Stem Diameter0.341 in (8.7 mm)
Part FitmentSemi Universal
Swirl-PolishedYes
Lock Groove StyleConventional
Vendor Part Number45027-8
Package Qty1
Package TypeEA
