Small Block Chrysler

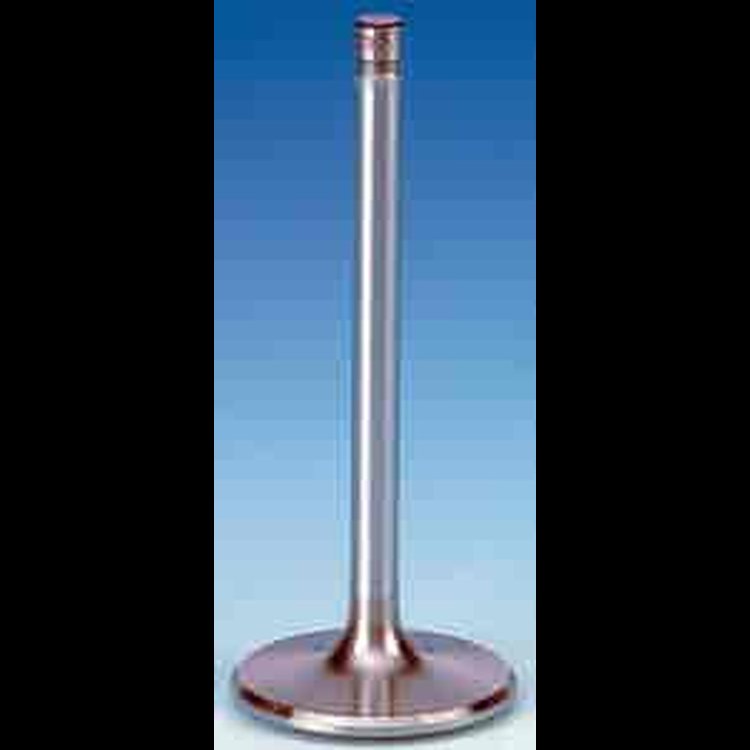

    Street Stainless Valves
  • Small Block Chrysler
  • Intake: 2.02''
  • 8/pkg

Milodon's Street Stainless Valves are independently tested to flow better and produce more horsepower, right out of the box. These street valves feature one-piece quality forgings, premium 21-4N material on the exhaust and high-grade stainless on the intake. Smooth machined valve heads ensures high, effecient flow and hard chromed stems reduce wear for long lasting performance. A single keeper groove gives greater valve tip strength. In cases of regrinding, a large seat margin allows for many regrinds. These street stainless valves are perfect for the Sportsman racer or everyday rebuild. Available for popular GM, Ford, Chrysler applications.

Show More

Features:

  • One-piece quality forgings
  • Exhaust valves - premium 21-4N material that operate at 1600°F
  • Intake valves - high-grade stainless steel
  • Smooth machined valve heads
  • Hard chromed stems
  • Single keeper grooves
  • Large seat margin for many regrinds
  • Available for GM, Ford, Chrysler
  • Sold in quantity of 8
Part TypeValve
Product LineMilodon Street Stainless Valves
BrandMILODON
Package Height2.5
Package Width6.8
Package Length6.8
Weight2.65 PG
Part CategoryPerformance Parts
Valve Stem Diameter (Mm)9.423
Valve Head Diameter2.02 in (51.3 mm)
Overall Valve Length (Mm)125.222
Lock Groove Quantity1-groove
QuantitySold as a set of 8
Valve Seat Width0.06 in (1.5 mm)
Overall Valve Length4.93 in (125.2 mm)
Valve Material21-4N stainless steel
Valve Head Diameter (Mm)51.308
Valve Head Style12 degree dish
Valve Tip Length0.25 in (6.4 mm)
Valve Tip Length (Mm)6.35
Undercut StemNo
Valve Stem Diameter0.371 in (9.4 mm)
Swirl-PolishedNo
Lock Groove StyleConventional
Vendor Part Number45640-8
Package Qty1
Package TypeEA
