Baffled Oil Catch Can
Product Discontinued
MISHIMOTOPART NUMBER: 690-BCCCAM416CBK

Baffled Oil Catch Can

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

GM
    Baffled Oil Catch Can
  • 2016-Up Chevrolet Camaro 2.0T
  • CCV Side
  • Black Silicone Hoses

    Do you want to keep your turbocharged Camaro even more bulletproof from oil blow-by harm? You can accomplish this with the addition of the Mishimoto Camaro 2.0T CCV Side Baffled Oil Catch Can Kit. This secondary system can only mount to your already purchased PCV Side Kit, providing extra protection from blow-by!

    While the majority of the Camaro's blow-by can be extracted from the internal PCV valve, there is still more to be removed from the external CCV system. For those of you who want nothing short of the highest level of protection for your LTG, the Mishimoto Camaro 2.0T CCV Side Catch Can Kit supplements your PCV can with an additional Billet 6061 aluminum can that has a 50-micron bronze filter to remove even more blow-by from the system. This can mounts directly to your pre-existing PCV can bracket, and includes silicone hoses, available in blue, black, or red. The Mishimoto Camaro 2.0T CCV Side Catch Can Kit includes all mounting and installation hardware, and ships with the Mishimoto Lifetime Warranty.

    Mishimoto catch cans are different from most air-oil-separator (AOS) systems on a few levels. First, their catch cans are not heated. This means that all of the blow-by is able to condense in the can, including low-octane oil vapors and contaminated fuel vapors. Most AOS systems also drain the blow-by back into the oil pan, while their catch cans trap the blow-by and keep it out of the engine permanently. If you've seen what Mishimoto engineers have seen in the bottom of their catch cans, you won't want that draining back into your oil either.

    Features:
  • Direct fit for the 2016+ Chevrolet Camaro 2.0T (can only be used in conjunction with Mishimoto PCV Side Catch Can Kit)
  • Installs in under 30 minutes
  • Mounts directly to Mishimoto PCV Side Catch Can Kit bracket
  • Can mounts in line with the CCV system to separate oil from air using a 50 micron bronze filter
  • Helps maintain proper octane levels to reduce potential detonation
  • Reduces carbon build-up on the intake valves
  • Internal air diverter increases air turbulence to improve oil separation
  • Application-specific bracket mounts the can in a serviceable location near the main fuse box
  • Billet 6061 aluminum sealed can
  • Filter and can are fully serviceable
  • Catch can has a 2 oz. capacity for longer servicing intervals
  • Application-specific black, blue, or red pre-molded silicone hoses
  • Hoses include OEM style quick-disconnect fittings for easy installation and special tool to remove original fittings without damage
  • Mishimoto Lifetime Warranty

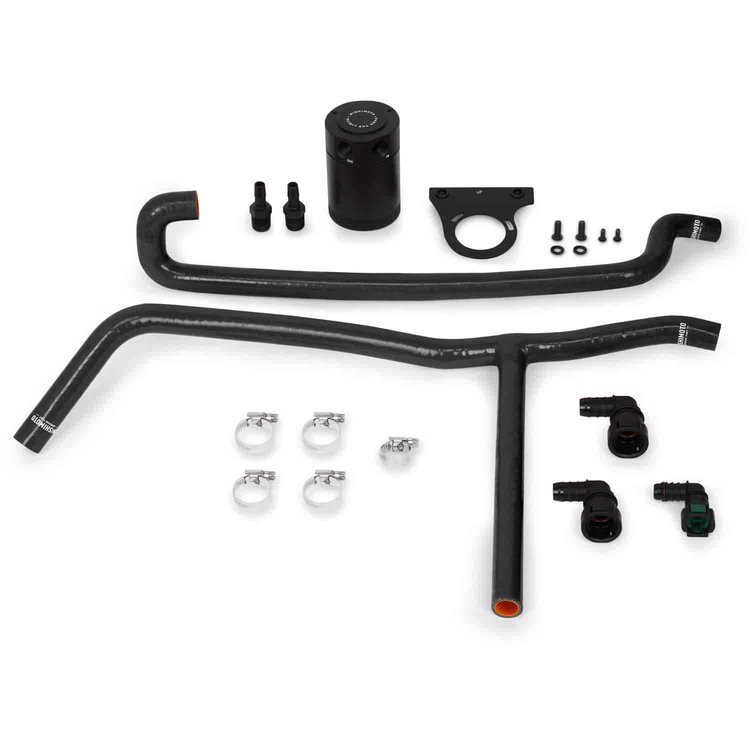

    Purchase Includes:
  • (1) Application-specific mounting bracket w/ hardware
  • (1) Black, Anodized 6061 Aluminum Catch Can
  • (2) Direct-fit Silicone Hoses w/ quick-disconnect fittings
  • (5) High-quality worm gear clamps
  • (2) Metal Tool for removing stock fittings
  • (2) Plastic Barb Fittings
  • (1) Air Diverter
  • (1) Internal Baffle & Rod
  • (1) 3/8" NPT Plug
  • (1) Large O-ring
  • Mounting Hardware
  • Mishimoto Lifetime Warranty

    Note: After installation, Mishimoto recommends checking the contents of the baffled catch can every 1,000 miles until a baseline is established. Oil blow-by accumulation will vary with ambient temperatures and driving conditions. It is important that the contents of the can do not rise above the internal baffle.
Part TypeEngine Oil Catch Can
BrandMISHIMOTO
Package Height8.0
Package Width10.0
Package Length14.0
Weight10.0 PG
Part CategoryPerformance Parts
Vendor Part NumberMMBCC-CAM4-16CBK
Package Qty1
Package TypeEA
