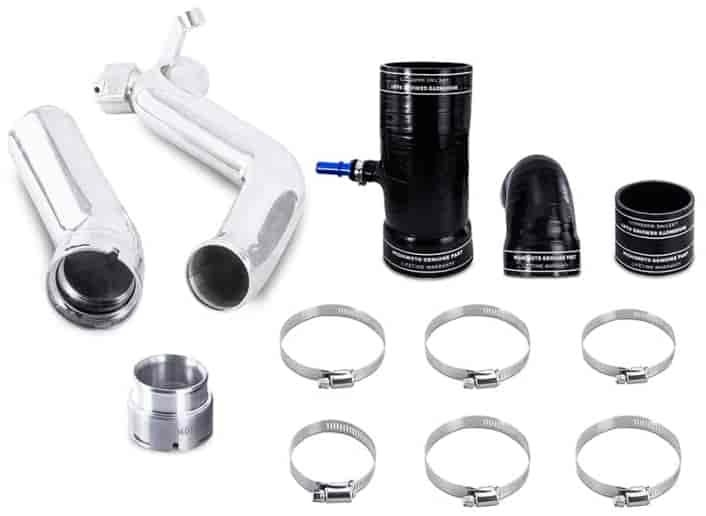

Breakdown of Included Items

Features:

• 2.830 in. diameter, larger-than-stock mandrel-bent piping eliminates restrictive bends and provides better turbocharger flow and power potential
• Hot-side intercooler flow is increased by 25.6%, and the cold-side intercooler flow is increased by 16.6%
• Hot-side internal volume is increased by 26.4%, and the cold-side internal volume is increased by 13.7%
• The cold-side intercooler pipe includes (1) bung for a sensor or boost gauge - can be drilled and tapped

Mishimoto DuraCore Technology: The innermost synthetic material of the coupler that provides superior resistance to heat, pressure, fuel, and oil, and increases longevity by preventing leaks and blowouts.

Installation Notes:

• 22 in.-lbs. (2.5N*M) is recommended for all worm-gear clamps (18-27 in.-lbs. 2-3N*M operating range). Do NOT exceed the maximum torque rating of 27 in.-lbs. (3N*M).
