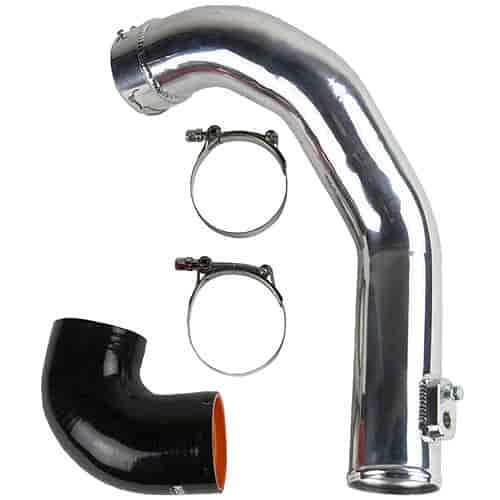

Cold-Side Intercooler Pipe and Boot Kit
• 2016-2017 Chevrolet Camaro 2.0T
• 2013-2017 Cadillac ATS 2.0T
• Polished Finish
• MFG p/n MMICP-CAM4-16CP



  Expose your 2.0T LTG engine to improved airflow with the Mishimoto Cold-Side Intercooler Pipe Kit for the 2.0T Chevrolet Camaro. The stock intercooler pipe is plagued by bends and a restrictive diameter. Both slow the airflow to your intercooler. The stock piping is also constructed of plastic and rubber, which will deteriorate over time. The Mishimoto intercooler pipe, on the other hand, is constructed of mandrel-bent aluminum and has a 2.75" diameter to minimize any airflow restrictions. This pipe can handle the power you throw at it when you're turning up the boost on your LTG.

  Plastic is a material Mishimoto always strives to replace with new products, and the stock cold-side intercooler pipe needed some work. Half of the stock cold-side pipe is constructed of plastic, which is prone to cracks and leaks. The Mishimoto cold-side pipe is a single section of mandrel-bent, aluminum piping featuring a CNC-machined sensor flange for use of the stock pressure sensor, a port for methanol injection, or a port for a boost gauge sensor.

  Mishimoto's cold-side Camaro 2.0T intercooler pipe also includes a durable 90-degee silicone coupler and stainless steel T-bolt clamps to ensure a leak free connection. Installation can be completed without modification to the engine bay as it is compatible with the stock intercooler. The Mishimoto cold-side intercooler pipe is available in either wrinkle black or a polished finish, and like all of Mishimoto's Camaro 2.0T performance parts, includes the Mishimoto Lifetime Warranty.

  Features:
• Direct fit
• Dyno-proven maximum gains up to 7 whp and 10 wtq on a stock tune
• 31% greater internal volume than stock
• Aluminum intercooler pipe replaces weak stock plastic and rubber pipe
• Utilizes stock quick-disconnect fittings for easy installation
• 2.75" mandrel-bent aluminum piping
• CNC-machined port for stock sensor connection
• Pre-welded NPT port allows for quick install of aftermarket meth injection or boost gauge
• Includes Mishimoto silicone coupler and Mishimoto T-bolt clamps
• Mishimoto Lifetime Warranty


  Installation Note:
  There is an O-ring inside of the stock intercooler pipe on the end that connects to the intercooler. This O-ring must be removed and installed into your Mishimoto intercooler pipe. Take note when removing it from the stock pipe as the O-ring must be installed in the correct direction.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
