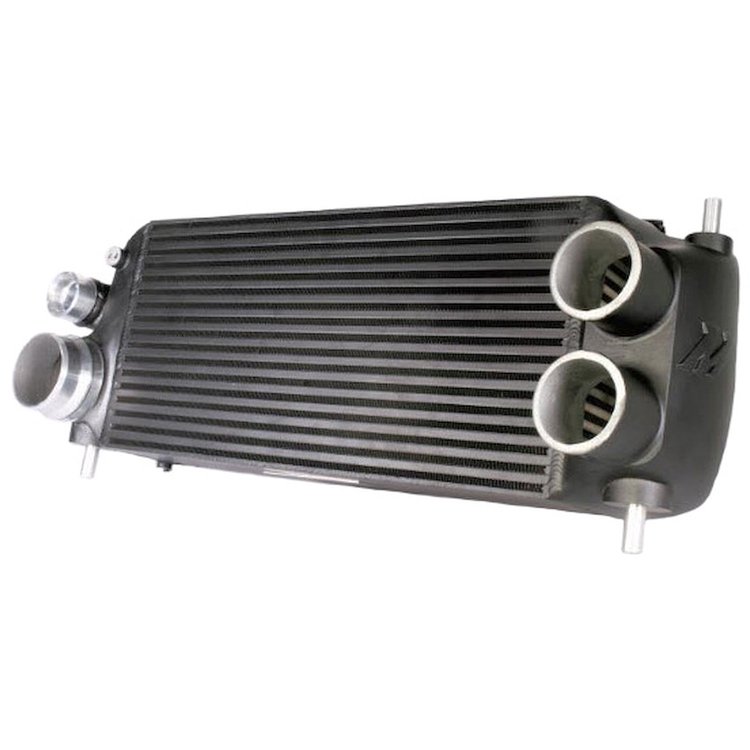

Keep those air intake temps down! With Mishimoto’s Performance Intercooler for the 2015-up Ford F-150 EcoBoost, your engine will reach a better level of cooling from the help of both an increase in core volume by 77% over stock and external fin surface area by 163%. They put their core through some grueling tests to see how the new design can alleviate the effects of heat soak. With temperature drops averaging 10-degrees under the stock numbers, your F-150 will take in cooler air, providing better performance and increased tuning potential.

This intercooler design also focuses on strength. With cast end tanks and bar-and-plate construction, this core has a much greater resistance to the outside elements. Whether you need an upgraded core for the work truck or an intercooler that can efficiently handle high boost, Mishimoto has you covered. This intercooler will also come with the coveted Mishimoto Lifetime Warranty.

Features:

• Direct fit for the 2015-Up Ford F-150 EcoBoost
• 10°F (5.5°C) reduction in AIT
• 77% increase in internal core volume
• 163% increase in external fin surface area
• All-aluminum, TIG-welded construction
• Internal fin design for maximum heat transfer with minimal pressure drop
• Fits with stock, upcoming Mishimoto, and most aftermarket intercooler pipe kits
• Mishimoto Lifetime Warranty

Tech Specs:

• Engine Codes: 2.7L EcoBoost / 3.5L EcoBoost
• Coating: Powder Coated
• Tank Wall Thickness: 0.157"
• Max Rec. PSI: 50 psi
• Outlet: 3.0" Diameter
• Inlet: 2.5" Diameter
• Core Size: 20" x 5" x 9.5"
• Overall Width: 7"
• Overall Height: 9.5"
• Overall Length: 29"
• Construction: Bar-and-Plate

Emissions Note:

This part is legal for sale and use on Emissions Controlled Vehicles, in all 50 states, when used in accordance with the manufacturer's application guide because it has a California Air Resources Board (CARB) Executive Order (EO) # D-759-6

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
