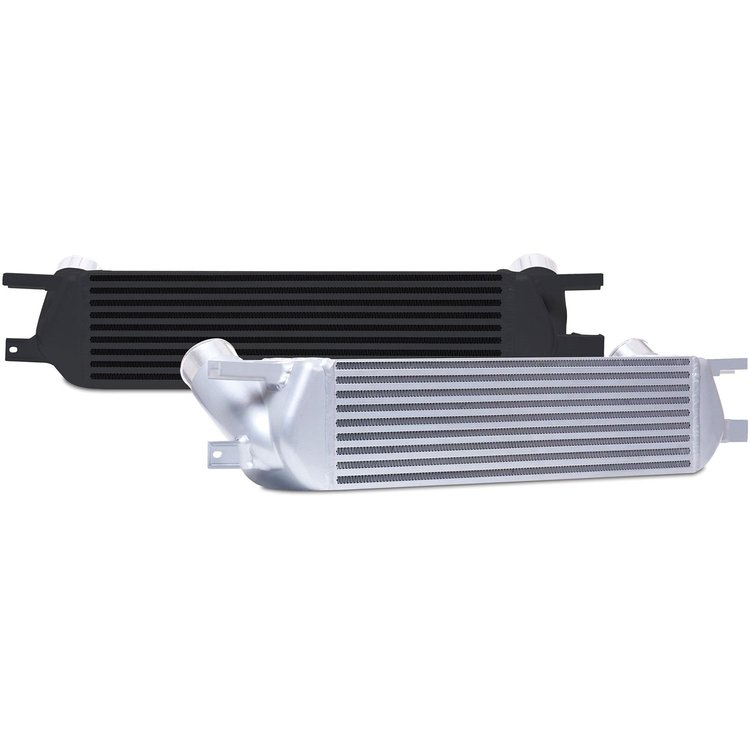

- Direct-Fit Intercooler
- 2015-Up Mustang 2.3L EcoBoost
- Silver Finish
For the first time in over 30 years, the iconic Ford Mustang is available with a turbocharged 4-cylinder engine producing over 300 horsepower in the form of the 2.3L Mustang EcoBoost! Turbocharged 4-cylinder engines produce extremely hot charge air temperatures very quickly, and the stock tube-and-fin EcoBoost intercooler can also suffer from heat soak after a short time. To help offset these high temps, Mishimoto is proud to introduce their line of performance EcoBoost Mustang parts, including a highly efficient bar-and-plate intercooler engineered specifically for the 2015 Mustang EcoBoost.
This Mustang EcoBoost intercooler is a direct-fit unit requires no modification to your 2015 Mustang, add the cold side or hot side pipe kit for extra cooling power. The engineers at Mishimoto designed the EcoBoost Mustang intercooler to fit with the stock active grille shutters, as well as prevent airflow blockage to the radiator and AC condenser by mounting it in the stock location. The Mustang EcoBoost intercooler is constructed with cast end tanks that are CFD-tested for maximum airflow. This EcoBoost intercooler also includes an in-tank air diverter on the hot side to provide optimal flow through the core. The Mustang EcoBoost Intercooler reduces intake temperatures by 35°F (19.45°C) with minimal pressure loss, has a 25% increase in core volume, and a 165% increase in external fin surface area, providing maximum cooling for your pony.
The EcoBoost Mustang intercooler features precision TIG-welding. The 2015 EcoBoost intercooler mates perfectly with the Mishimoto 2015 EcoBoost intercooler pipe kit. As with all their 2015 Mustang parts, the Mishimoto Mustang EcoBoost Intercooler includes the Mishimoto Lifetime Warranty.
Features: - Direct fit for the 2015+ Ford Mustang EcoBoost
- 35°F (19.45°C) reduction in AIT
- 58% increase in core size
- 25% increase in internal core volume & 165% increase in external fin surface area

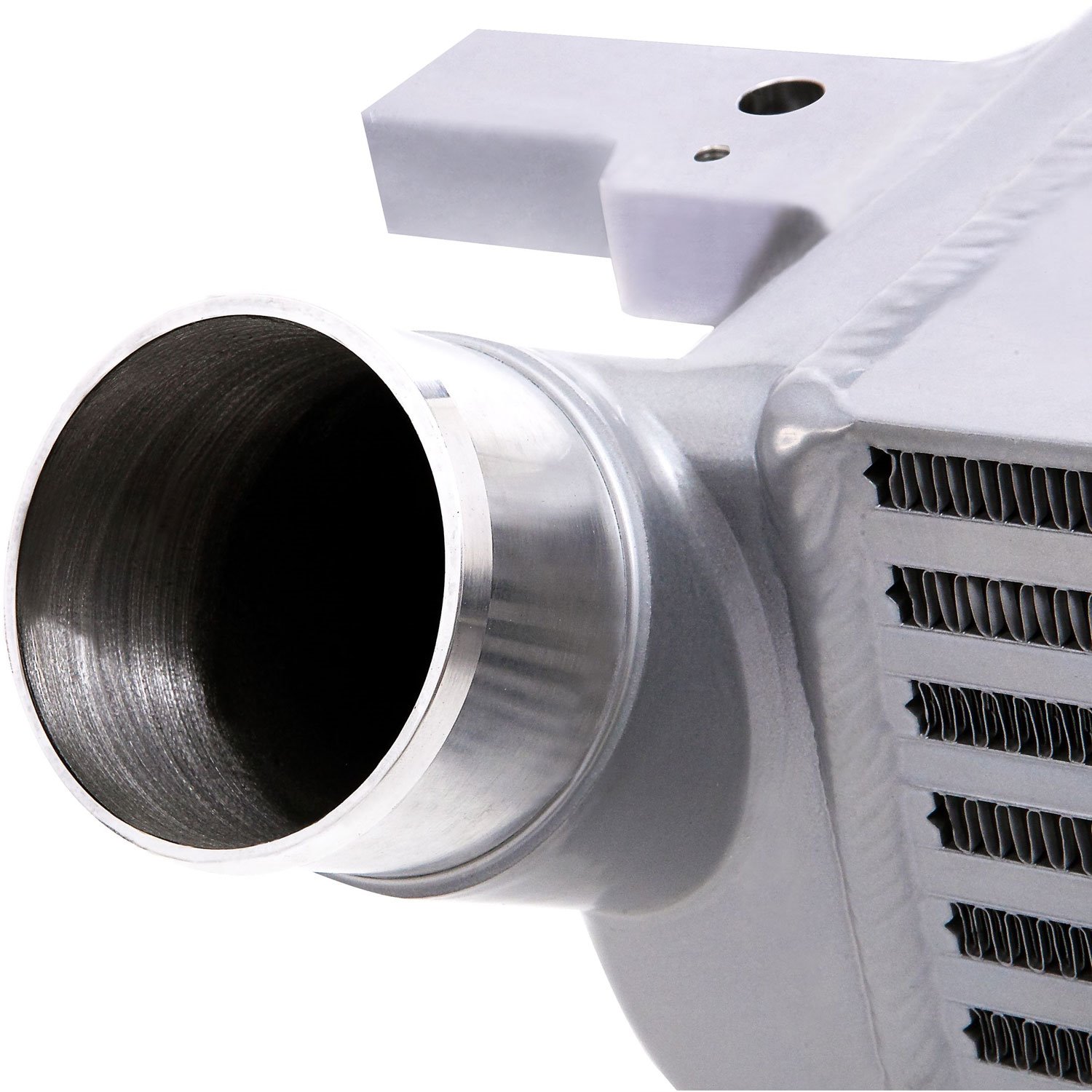

- Cast end tanks and in-tank diverter provide optimal flow through intercooler
- Stock location prevents airflow blockage to radiator and AC condenser
- Installs in under 2 hours without having to remove front bumper cover
- Retains stock active grille shutters, maintaining ideal aerodynamics when cooling demands are lower
- Bar-and-plate construction
- All-aluminum, TIG-welded
- Fits with the Mishimoto Mustang EcoBoost Oil Cooler Kit
- CARB Compliant EO#: D-759
- Mishimoto Lifetime Warranty
TECH SPECS: - Construction: Bar-and-plate with cast end tanks
- Overall Size: 30.3" x 6.8" x 8.0"
- Core Size: 21.06" x 5.75" x 5.28"
- Weight: 19.85 lbs / 9.00 kgs
- Tank Wall Thickness: 4mm
- Inlet/Outlet: 2.56"
- CARB Compliant EO#: D-759
- Note: This intercooler is rated for approximately 550 whp. Exceeding these horsepower limits could require a custom-sized front-mount intercooler.
Emissions Note:
This part is legal for sale and use on Emissions Controlled Vehicles, in all 50 states, when used in accordance with the manufacturer's application guide because it has a California Air Resources Board (CARB) Executive Order (EO) number D-759.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
