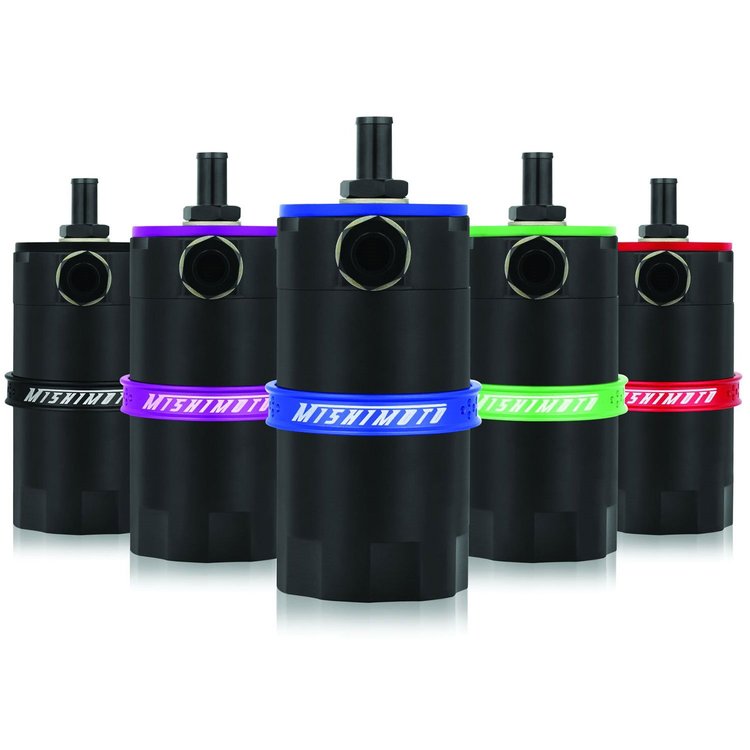

Baffled Oil Catch Can
• 6'' Body Height
• 3'' Body Diameter
• 9 fl oz. Capacity
• Black Anodized Body
• Blue Anodized Mounting Brackets


  Features:
• Overall Height: 6.00" (without fittings)
• Overall Diameter: 3.06" (without fittings)
• Inlet: M20 x 1.5 (for accepting -10AN)
• Outlet: M20 x 1.5
• Drain Plug Thread Size: M20 x 1.5
• Assembled Weight: 1.6 lbs (0.73 kgs)
• Installation Torque Specs: 22 in-lbs (2.5N*M) recommended for all worm-gear clamps. (These clamps have an operating range of 18-27 in-lbs 2-3N*M. Do not exceed the maximum torque rating of 27 in-lbs (3N*M).)
Purchase Includes:

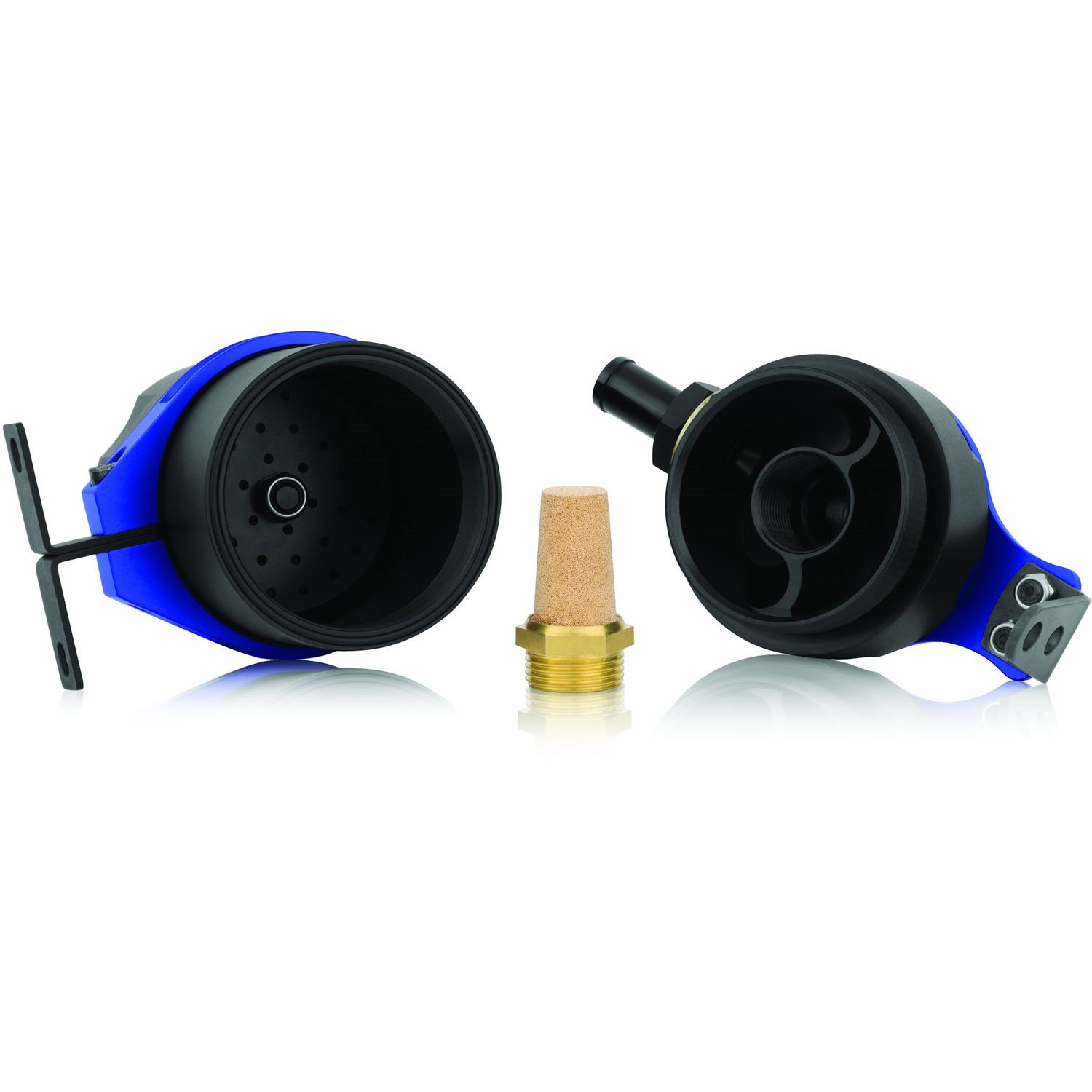

• (1) Black, Anodized 6061 Aluminum Catch Can
• (2) Aluminum Mounting Brackets
• (1) Bronze Filter
• (1) Internal Baffle
• (3) Dowty Oil Seals
• (2) Push-on Fittings
• (1) Drain Plug
• (6) Black Rubber Oil Line
• (4) Worm-gear Clamps
• (1) Black Rubber Band
• Mounting Hardware & Brackets
• Mishimoto Lifetime Warranty

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
