This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

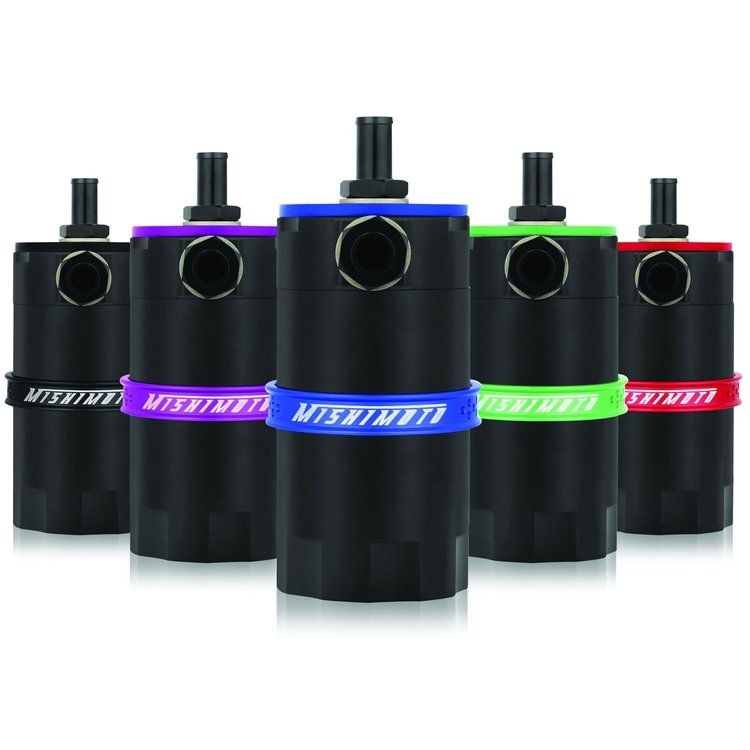

- Baffled Oil Catch Can
- 6'' Body Height
- 3'' Body Diameter
- 9 fl oz. Capacity
- Black Anodized Body
- Purple Anodized Mounting Brackets
Features: - Overall Height: 6.00" (without fittings)
- Overall Diameter: 3.06" (without fittings)
- Inlet: M20 x 1.5 (for accepting -10AN)
- Outlet: M20 x 1.5
- Drain Plug Thread Size: M20 x 1.5
- Assembled Weight: 1.6 lbs (0.73 kgs)
- Installation Torque Specs: 22 in-lbs (2.5N*M) recommended for all worm-gear clamps. (These clamps have an operating range of 18-27 in-lbs 2-3N*M. Do not exceed the maximum torque rating of 27 in-lbs (3N*M).) Purchase Includes:

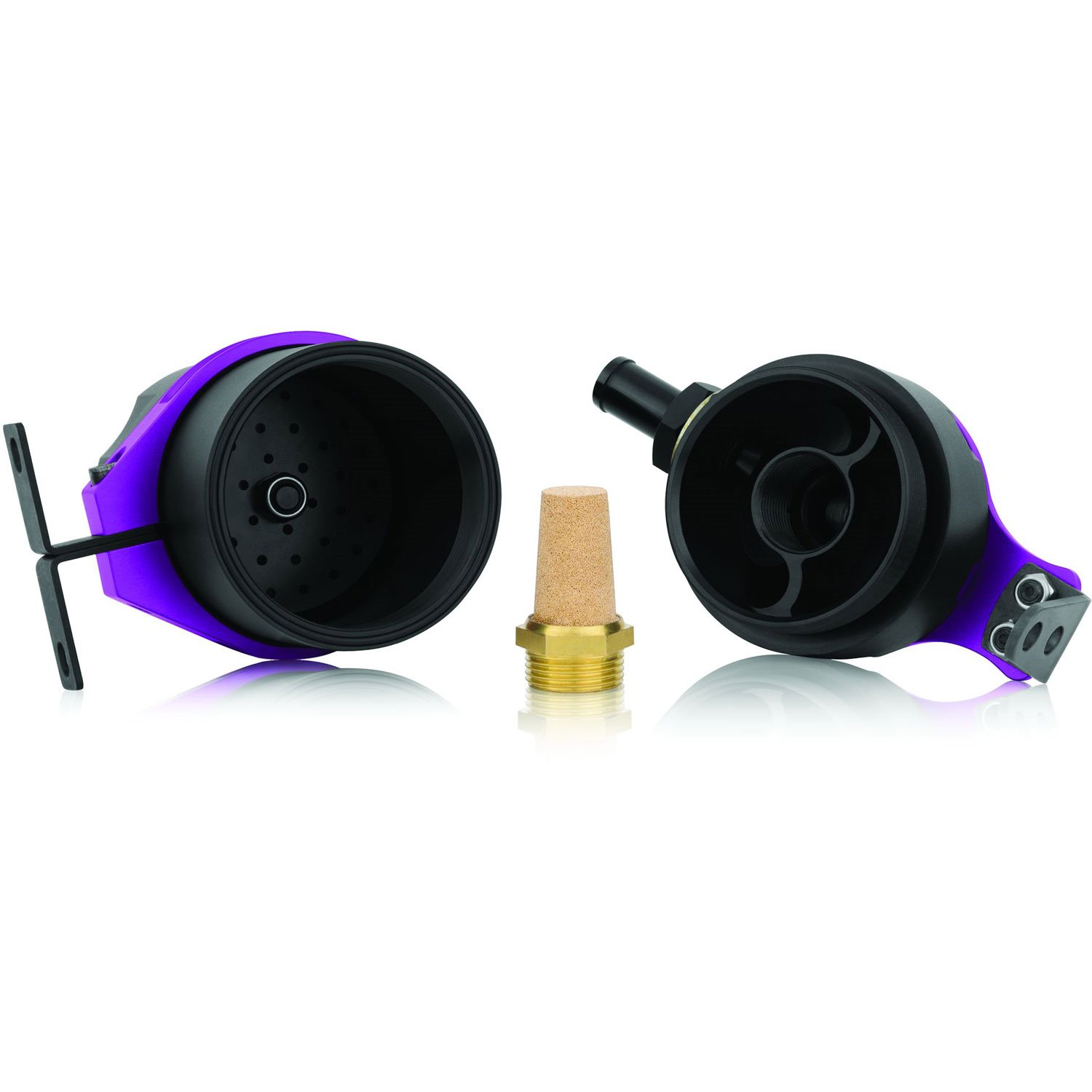

- (1) Black, Anodized 6061 Aluminum Catch Can
- (2) Aluminum Mounting Brackets
- (1) Bronze Filter
- (1) Internal Baffle
- (3) Dowty Oil Seals
- (2) Push-on Fittings
- (1) Drain Plug
- (6) Black Rubber Oil Line
- (4) Worm-gear Clamps
- (1) Black Rubber Band
- Mounting Hardware & Brackets
- Mishimoto Lifetime Warranty
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Mishimoto, with over a year of research and development time, has created one of the most effective oil catch can on the market. The Mishimoto Baffled Oil Catch Can was designed to separate oil particles from the PCV air that would normally have just been routed back to your intake. Custom grooves in the catch can inlet spins the air longer and ensures all the oil sinks to the bottom of the can, leaving nothing but clean air to pass through the 40 micron bronze filter to the intake. An internal baffle keeps the collected oil from splashing around under race conditions.
Show More
The 100% billet, 6061 aluminum can accepts -AN fittings at the inlet, outlet, and drain area allowing over 27 possible configurations. For maximum fitment options, the top cog mounting setup allows the can to be mounted from multiple angles. To make maintenance easy, the drain plug can be removed to allow for -AN return to the oil pan. The can is also 100% washable, unlike many other cans that require you to replace your filtration system. The Mishimoto Baffled Oil Catch Can is available in a variety of colors and, as with all our catch cans, comes with the unparalleled Mishimoto Lifetime Warranty you know and trust.
Features:
- 40-micron bronze filter blocks oil from depositing in ventilation system
- Special engineered inlet pattern "floats" the air longer, allowing oil to condense
- Internal baffle ensures no oil escapes during high-speed cornering
- Replaceable single-unit filter is easy to maintain
- Inlet and outlet accept -AN fittings for various configurations
- 100% billet anodized 6061 aluminum with laser etched finish
- Safe to use in pressurized systems
- Drain plug can be removed to allow for -AN return to oil pan
- Unique upper mounting bracket cogs provide versatile mounting options
- Includes push-on fittings for easy installation
