3-Port Compact Baffled Oil Catch Can

Name: 3-Port Compact Baffled Oil Catch Can
Brand: MISHIMOTO
SKU: 690-MMBCCMSTHRBK
Price: 136.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

3-Port Catch Cans

Three-Port (Two Inlets / One Outlet)
3.8'' Body Height
2.5'' Body Diameter
2 fl. oz. Capacity
Black Anodized Finish

Features:
Overall Height: 3.80" (without fittings)
Overall Diameter: 2.50" (without fittings)
Inlets: 3/8" NPT
Outlet: 3/8" NPT
Drain Plug Thread Size: 3/8" NPT
Assembled Weight: 0.9 lbs (0.41 kgs)

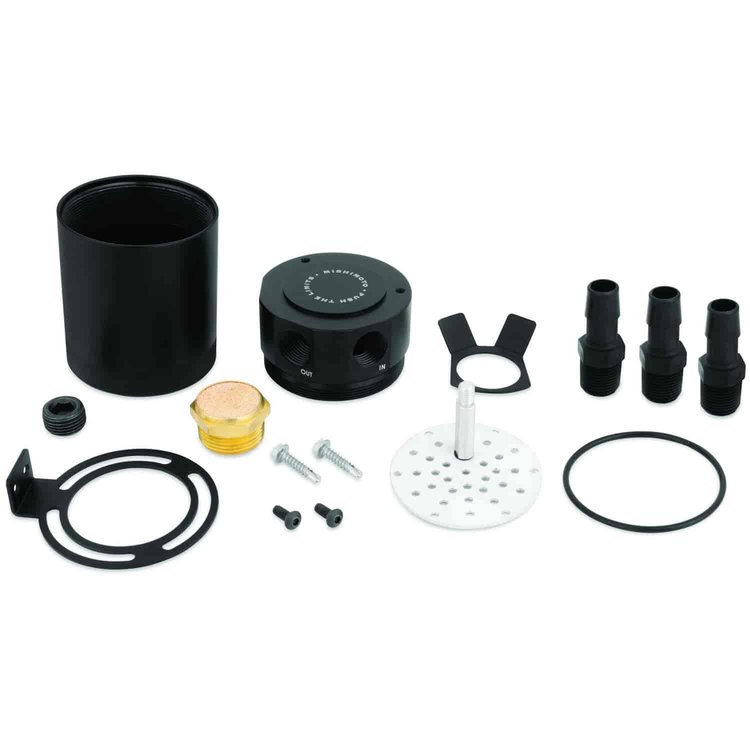

(1) Black, Anodized 6061 Aluminum Catch Can
(1) Universal Mounting Bracket
(1) Bronze Filter
(1) Air Diverter
(1) Internal Baffle & Rod
(3) Plastic Barbed Fittings for 1/2" Hose
(1) 3/8" NPT Plug
(1) Large O-Ring
Mounting Hardware
Mishimoto Lifetime Warranty

Mishimoto's Compact Baffled Oil Catch Can is available in a three-port or two-port catch can design. With years of oil catch can research and development time, Mishimoto has created the most effective compact oil catch can on the market. The Mishimoto Compact Baffled Oil Catch Can was designed to separate oil particles from the PCV/CCV air that would normally have just been routed back to your intake. The internal air diverter spins the air longer and ensures all the oil sinks to the bottom of the can, leaving nothing but clean air to pass through the 50 micron bronze filter to the intake. An internal baffle keeps the collected oil from splashing around under race conditions. The two port oil catch can features one inlet and one outlet, three port oil catch can features two inlets and one outlet, for easy installation on CCV and PCV systems.

The 100% billet, 6061 aluminum can features 3/8" NPT threads at the inlet, outlet, and drain area and includes three black nylon fittings to make installation effortless. For maximum fitment options, the top mounting setup allows the can to be mounted from multiple angles. To make maintenance easy, the drain plug can be removed to allow for a return to the oil pan. The can is also 100% washable, unlike many other cans that require you to replace your filtration system.
