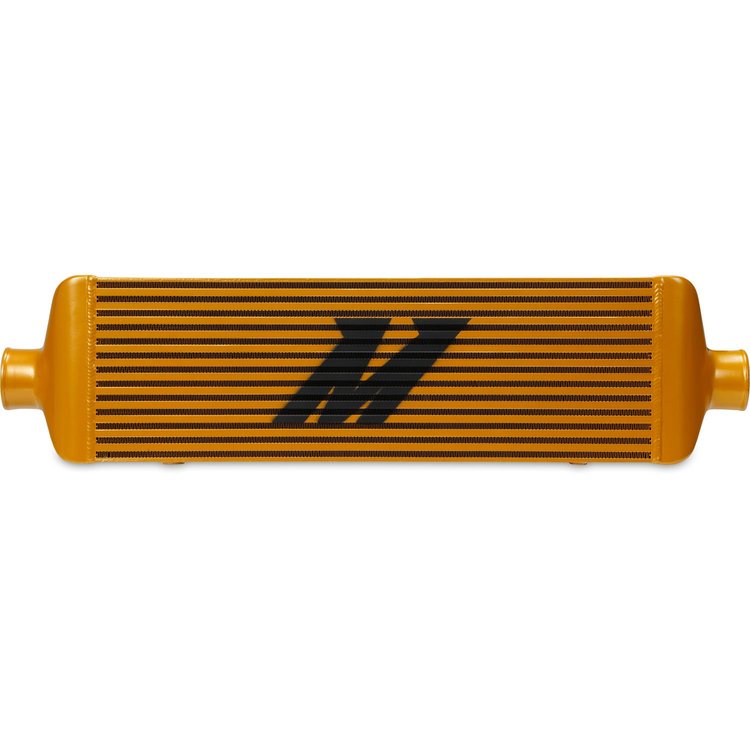

J-Line Universal Fit Intercooler

Name: J-Line Universal Fit Intercooler
Brand: MISHIMOTO
SKU: 690-MMINT-UJG
Price: 383.95 USD
Availability: InStock

^$383⁹⁵

4 left in stock

Ships on Sep 08, 2026

Lowest Price Guarantee

Universal Fit
Gold Finish

TECH SPECS:
Overall Length: 29.5"
Overall Height: 7.5"
Overall Width: 3.75"
Core Length: 22.0"
Core Height: 7.2"
Core Width: 3.75"
Inlet: 2.5"
Outlet: 2.5"
Construction: Bar-and-Plate
Core Thickness: 3.75"
CFM: N/A
Tank Wall Thickness: 4mm
Fin Pitch: 7 Fins/Inch
Max Rec. PSI: 40 psi
Threaded Universal Mounting Points: Two M12 x 1.25 Bungs

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

The Mishimoto J-Line is a small cooler packing a big punch, this universal front-mount intercooler has been engineered to handle 500HP, even with its compact size. Tested on the highest HP Hyundai Genesis Coupe in the world, the Mishimoto J-Line intercooler is perfect for cars with limited front-end space. In most instances, the J-Line will allow you to run more power while preventing you from having to remove your crash bar. The J-Line intercooler will efficiently reduce induction air temperatures, while significantly improving engine output. Mishimoto is dedicated not only to quality and precision tuning, but also to a superior looking product that will please every enthusiast.

These intercoolers are constructed of aircraft-quality 6061 aluminum with precision TIG welding. Mishimoto intercoolers provide the ideal cooling capacity for your turbo application, while safely increasing horsepower and giving that extra boost that every driver appreciates. An intercooler is a key component in any turbocharged vehicle, so it makes sense to equip your vehicle with the most efficient unit possible. Mishimoto engineers spend considerable time ensuring that these intercoolers perform to their high standards. For your racing intercooler look no further than Mishimoto!

Note: For your taste, only one side of the intercooler has the Mishimoto logo.

Features:

Core Size: 22" L x 7-3/16" H x 3-3/4" W
Overall Size: 29-1/2" L x 7-1/2" H x 3-3/4" W

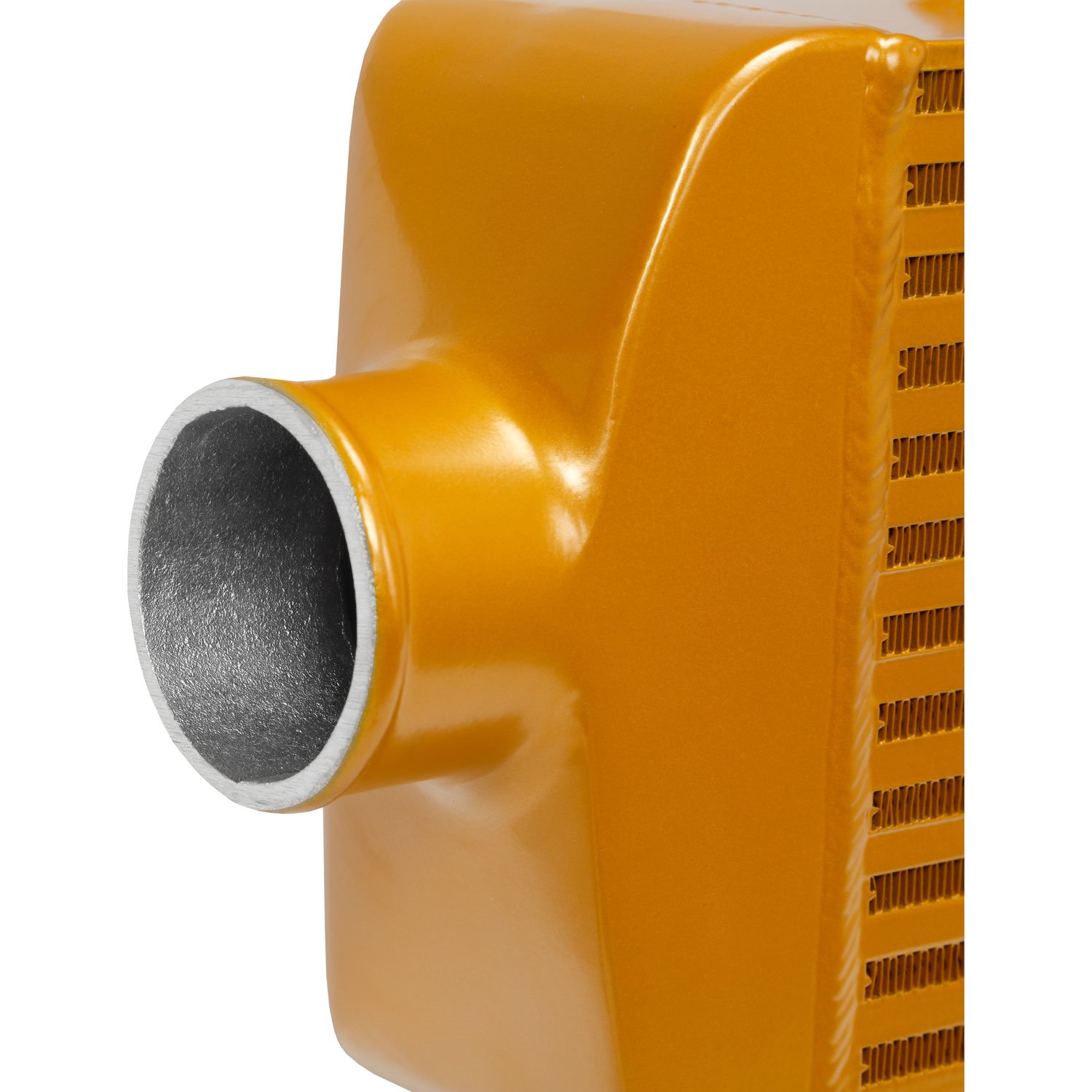

2-1/2" Inlet / Outlet
Durable Bar-and-Plate Core Provides Superior Heat Transfer While Effectively Reducing Air Inlet Temp's
Robust, One-Piece Cast Aluminum End Tanks Withstand High Boost Pressures
Two M12 x 1.25 Threaded Universal Mounting Points
Constructed with 6061 Aluminum
TIG Welded to Perfection
Powder Coated Finishes
