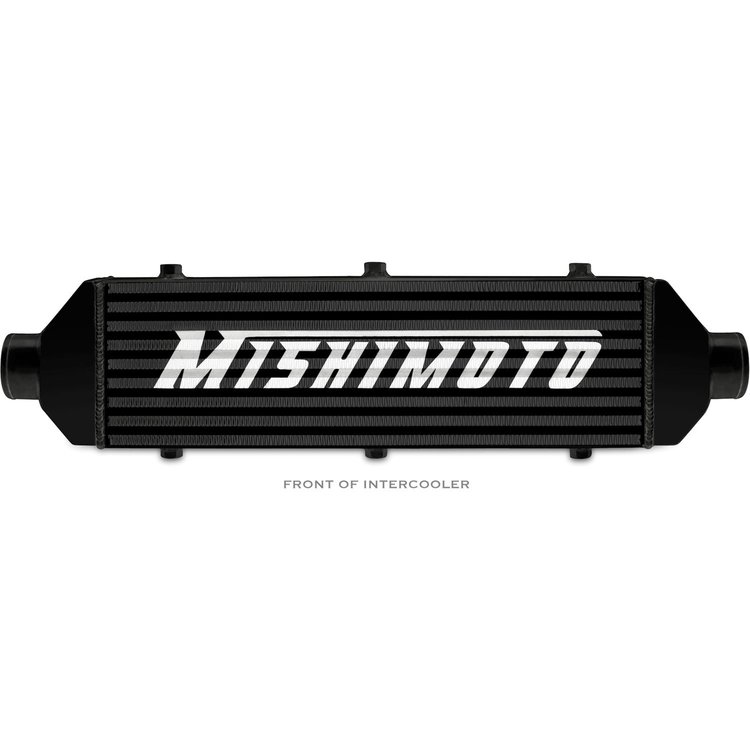

Z-Line Universal Fit Intercooler
- Z-Line Intercooler
- Universal Fit
- Black Finish
TECH SPECS: - Overall Length: 28.0"
- Overall Height: 7.5"
- Overall Width: 2.5"
- Core Length: 20.5"
- Core Height: 6.25"
- Core Width: 2.5"
- Inlet: 2.5"
- Outlet: 2.5"
- Construction: Bar-and-Plate
- Core Thickness: 2.5"
- CFM: N/A
- Tank Wall Thickness: 5mm
- Fin Pitch: 15 Fins/Inch
- Max Rec. PSI: 22 psi
- Threaded Universal Mounting Points: Six M12 x 1.75 Bungs
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
The Mishimoto Z-Line universal front-mount intercooler will provide the perfect cooling capacity needed for larger turbo applications. The Z-Line intercooler will efficiently reduce induction air temperatures, while significantly improving engine output. Mishimoto is dedicated not only to quality and precision tuning, but also to a superior looking product that will please every enthusiast. These intercoolers are constructed of aircraft-quality 6061 aluminum with precision TIG welding. Mishimoto intercoolers provide the ideal cooling capacity for your turbo application, while safely increasing horsepower and giving that extra boost that every driver appreciates. An intercooler is a key component in any turbocharged vehicle, so it makes sense to equip your vehicle with the most efficient unit possible. Mishimoto engineers spend considerable time ensuring that these intercoolers perform to their high standards. For your racing intercooler look no further than Mishimoto!
Show More

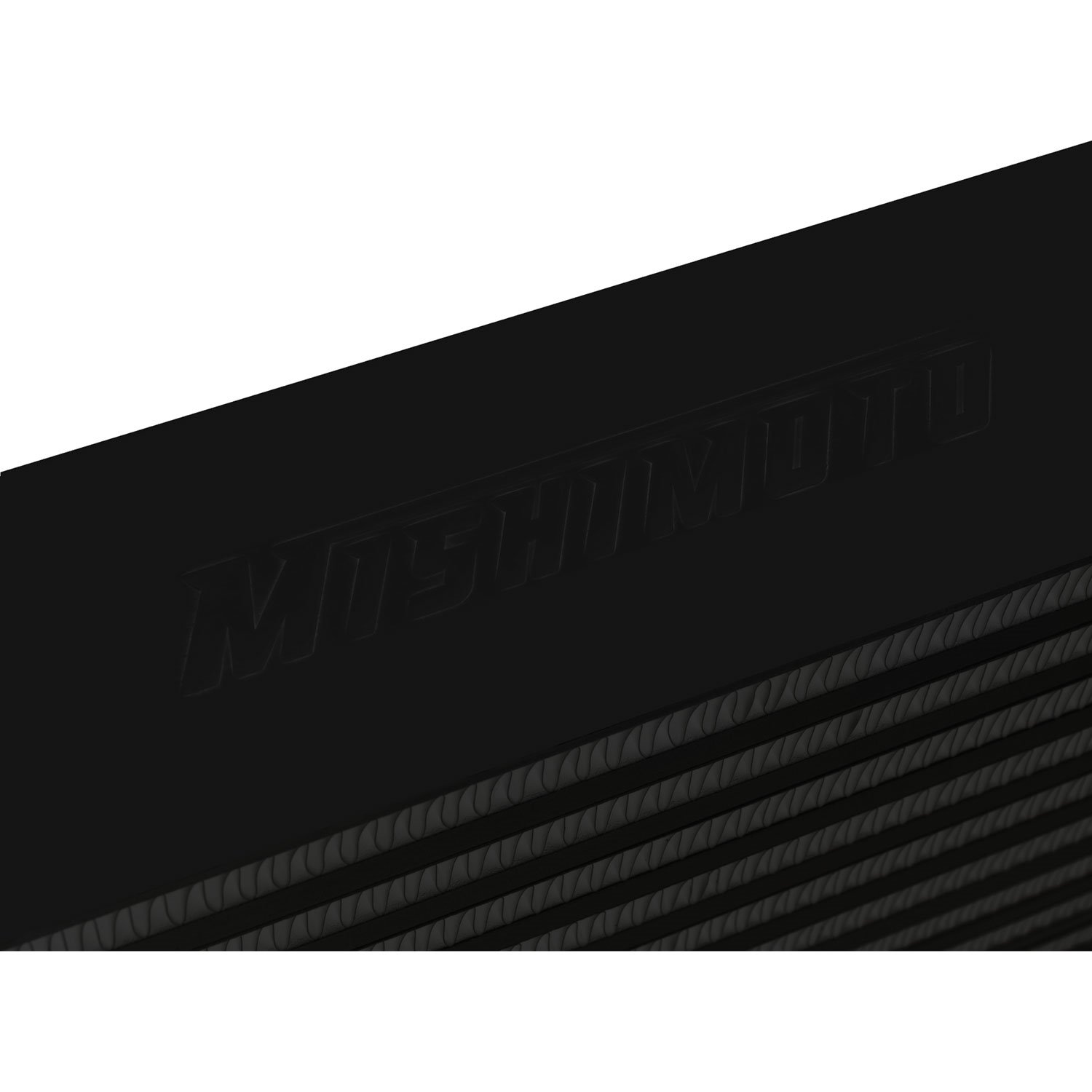

Note: For your taste, only one side of the intercooler has the Mishimoto logo.
Features:
- Core Size: 20-1/2" L x 6-1/4" H x 2-1/2" W
- Overall Size: 28" L x 7-1/2" H x 2-1/2" W
- 2-1/2" Inlet / Outlet
- Durable Bar-and-Plate Core Provides Superior Heat Transfer While Effectively Reducing Air Inlet Temp's
- Robust, One-Piece Cast Aluminum End Tanks Withstand High Boost Pressures
- Six M12 x 1.75 Threaded Universal Mounting Points
- Constructed with 6061 Aluminum
- TIG Welded to Perfection
- Powder Coated Finishes
