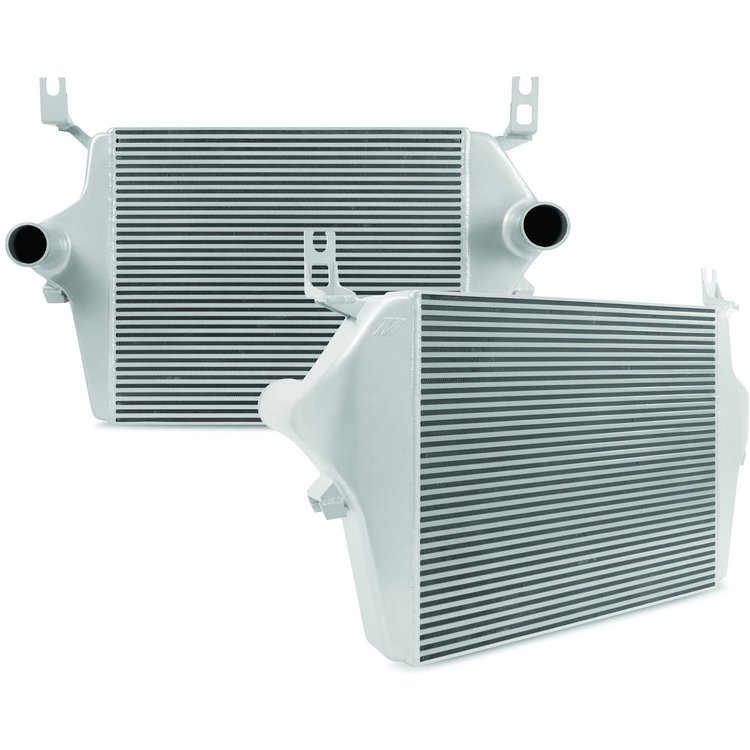

Direct-Fit Intercooler
• 2003-2007 Ford F-Series 6.0L Powerstroke
• Silver Finish



  Mishimoto has released a performance intercooler for the 2003-2007 Ford 6.0L Powerstroke. A high-powered 6.0L engine needs an intercooler that can effectively reduce intake temperatures and withstand high pressures. The Mishimoto 6.0L Powerstroke intercooler is manufactured with heavy-duty cast aluminum end tanks and a stout bar-and-plate core, designed to decrease intake temperatures, improve airflow, and reduce pressure drop. By decreasing pressure drop this intercooler will extend the life of your turbocharger and improve the efficiency of your Powerstroke.

  The Mishimoto Powerstroke intercooler features a core with greater volume than the factory cooler; this results in numerous performance benefits including increased pressure tolerance and lower EGTs. They engineered this intercooler to provide substantial benefits on a stock truck, and also to support the power and boost levels of a highly modified truck. The Mishimoto 6.0L Powerstroke intercooler, like all of their Powerstroke performance parts, comes protected by Mishimoto's signature Lifetime Warranty.

  Features:
• Direct fit for the 2003-2007 Ford 6.0L Powerstroke
• 3.35" bar-and-plate core is 33% thicker than factory
• 32.5% increase in core volume
• End tanks strategically designed for optimal airflow
• Air diverter in hot-side end tank reduces turbulence and evenly distributes airflow across core
• Reduces turbo stress and extends life
• Mishimoto Lifetime Warranty


  TECH SPECS:
• Construction: Bar/Plate
• Overall Size: 38.5" x 25.2" x 7.5"
• Core Size: 25.75" x 21.54"
• Inlet: 3.25" (83mm)
• Outlet: 3.00" (76mm)
• Fin Pitch: 15 Fins/Inch
• Tank Wall Thickness: 4mm
• Core Thickness: 3.35"








Emissions Note:

This part is legal for sale and use on Emissions Controlled Vehicles, in all 50 states, when used in accordance with the manufacturer's application guide because it has a California Air Resources Board (CARB) Executive Order (EO) # D-759-4

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
