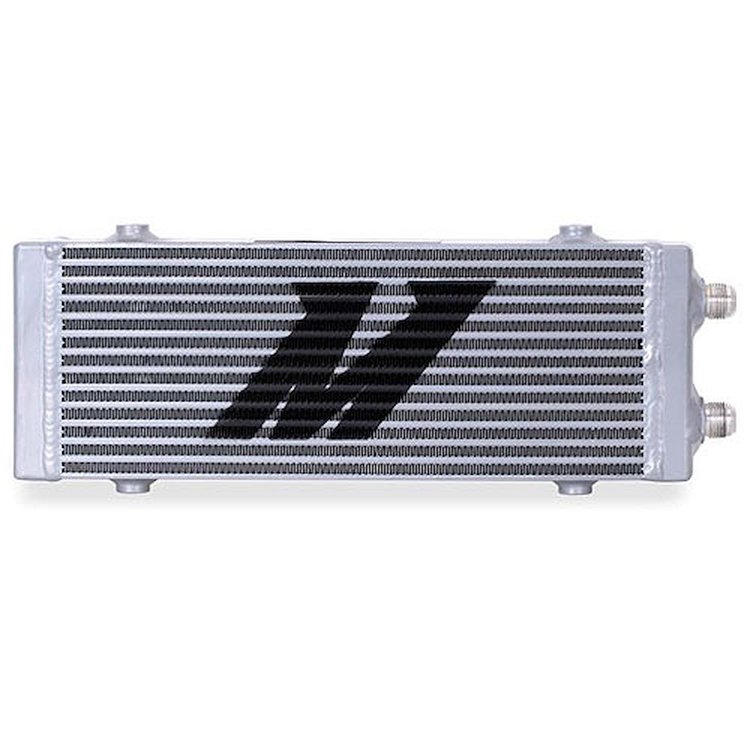

Universal Dual Pass Race Oil Cooler - Medium
InfoVehicle Info Needed
MISHIMOTOPART NUMBER: 690-MMOC-DP-MSL

Universal Dual Pass Race Oil Cooler - Medium

$34095
ShippingShips on 09/15/2026
Lowest PriceLowest Price Guarantee

Universal Race-Series Oil Coolers
    Universal Dual Pass Race Oil Cooler - Medium
  • Bar-and-Plate Construction
  • 17.01" x 6.30" x 1.57" Overall Size
  • 13.98" x 5.51" x 1.57" Core Size
  • -10 AN Inlet/Outlet Fittings
  • Silver Finish

    As anyone who's spent some time on the track will tell you, one of the most important things to keep under control while pushing the limits of your vehicle is oil temperature. Oil that gets too hot will lose its viscosity, which is the very characteristic that makes it thick, slippery, and useful for lubrication. Adding a Mishimoto race oil cooler to your ride will ensure that your oil stays cool enough to do its job, extending the life of the high-wear components within your block and letting you focus not on keeping things cool, but taking home the checkered flag. Available in your choice of sleek silver or stealth black, this particular oil cooler features a dual pass core - oil enters one side, travels around the core, and exits again on the same side. Sized for maximum cooling power, Mishimoto's large dual pass oil cooler will help keep temperatures in check while you shoot for the podium finish.

    Features:
  • Durable Bar & Plate cooler design for use in custom applications
  • Dual Pass design for optimal fluid temperature reduction
  • M8 x 1.25 Welded bungs to use for attaching brackets
  • -10 AN fittings for attaching oil lines
  • 100% aluminum construction with CNC end tanks
  • Reduces oil temperatures with minimal pressure loss
  • Increased oil system capacity for increased cooling capability
  • Available in Sleek Silver or Stealth Black
  • Mishimoto Lifetime Warranty
Part TypeFluid Cooler
BrandMISHIMOTO
Package Height3.0
Package Width8.4
Package Length24.0
Weight5.78 PG
Part CategoryPerformance Parts
Part FitmentUniversal
Vendor Part NumberMMOC-DP-MSL
Package Qty1
Package TypeEA
