Engine Oil Cooler Kit 2015-Up Mustang GT
InfoVehicle Info Needed
MISHIMOTOPART NUMBER: 690-MMOC-MUS815T

Engine Oil Cooler Kit 2015-Up Mustang GT

$80595
ShippingShips on 09/16/2026
Lowest PriceLowest Price Guarantee

Ford
    Engine Oil Cooler Kit
  • 2015-Up Mustang GT
  • Thermostatic
  • Sleek Silver Finish
  • MFG p/n MMOC-MUS8-15T

    Nobody likes being sidelined at the track due to high engine oil temperatures. Mishimoto is here to help with a new line of efficient Mustang GT parts. Forced induction setups and some track miles can significantly overheat your oil and wear out your engine, so our engineers have developed an oil cooling solution for your Mustang GT! The Mishimoto engineers designed the heat exchanger for this project from scratch to create the largest oil cooler that they offer, and mounted it in the front of the vehicle where it receives the most airflow. Application-specific braided stainless steel lines transfer the oil from the cooler to the engine and feature -10AN fittings for an easy installation. This 2015 Mustang GT oil cooler kit is available with either a Sleek Silver or Stealth Black cooler and the Mishimoto Thermostatic Oil Sandwich Plate. As with all their 2015 Mustang parts, the Mishimoto Mustang GT Oil Cooler Kit includes the Mishimoto Lifetime Warranty.

    Features:
  • Direct-fit for the 2015+ Ford Mustang GT

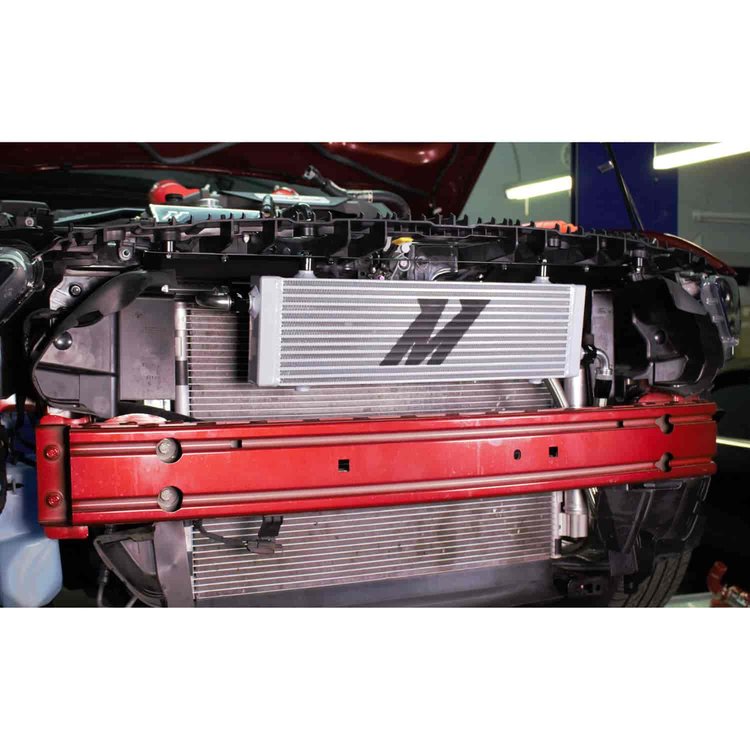

  • Innovative bar and plate oil cooler mounts in the upper grille, allowing more room for supercharger heat exchangers
  • Mounting bracket also serves as an air diversion panel, directing the maximum amount of ambient air through the oil cooler
  • Pre-made stainless steel braided oil lines with durable -AN fittings
  • Comes with replacement lower radiator hose to bypass the stock fluid-based oil cooler
  • Removes the stock fluid-based oil cooler for less stress on the engine's cooling system
  • Billet aluminum thermostatic oil sandwich plate
  • Increases oil capacity by 1-quart
  • Mishimoto Lifetime Warranty


    TECH SPECS:
  • Cooler Rows: 12
  • Cooler Construction: Bar-and-Plate
  • Core Length: 18.5"
  • Fitting Size: -10AN
  • Engine Codes: 5.0 Coyote
  • Chassis Codes: S-550
  • Increase In Oil Capacity: 1 qt
  • Overall Length: 5.5"
  • Overall Width: 1.57"
  • Inlet: -10AN
  • Outlet: -10AN
  • Caution: Requires the removal of the stock coolant based oil cooler. Recommended torque specification for all straight fittings and banjo bolts: 15-25 ft/lbs (operating range). Do not exceed the maximum torque rating of 35 ft/lbs


    PURCHASE INCLUDES:
  • (1) Application Specific Mounting Bracket / Air Diversion Shield
  • (1) Bar and Plate Oil Cooler (Silver or Black)
  • (1) 2ft 5in Stainless Steel Braided Hose w/ -10AN Fittings
  • (1) 4ft 11in Stainless Steel Braided Hose w/ -10AN Fittings
  • (1) M22 Thermostatic Sandwich Plate
  • (1) Application - Specific, M22 x 1.5 extended length center bolt
  • (2) M20 x -10AN Straight Fittings
  • (2) 1/8" NPT Plugs
  • (1) Large O-ring

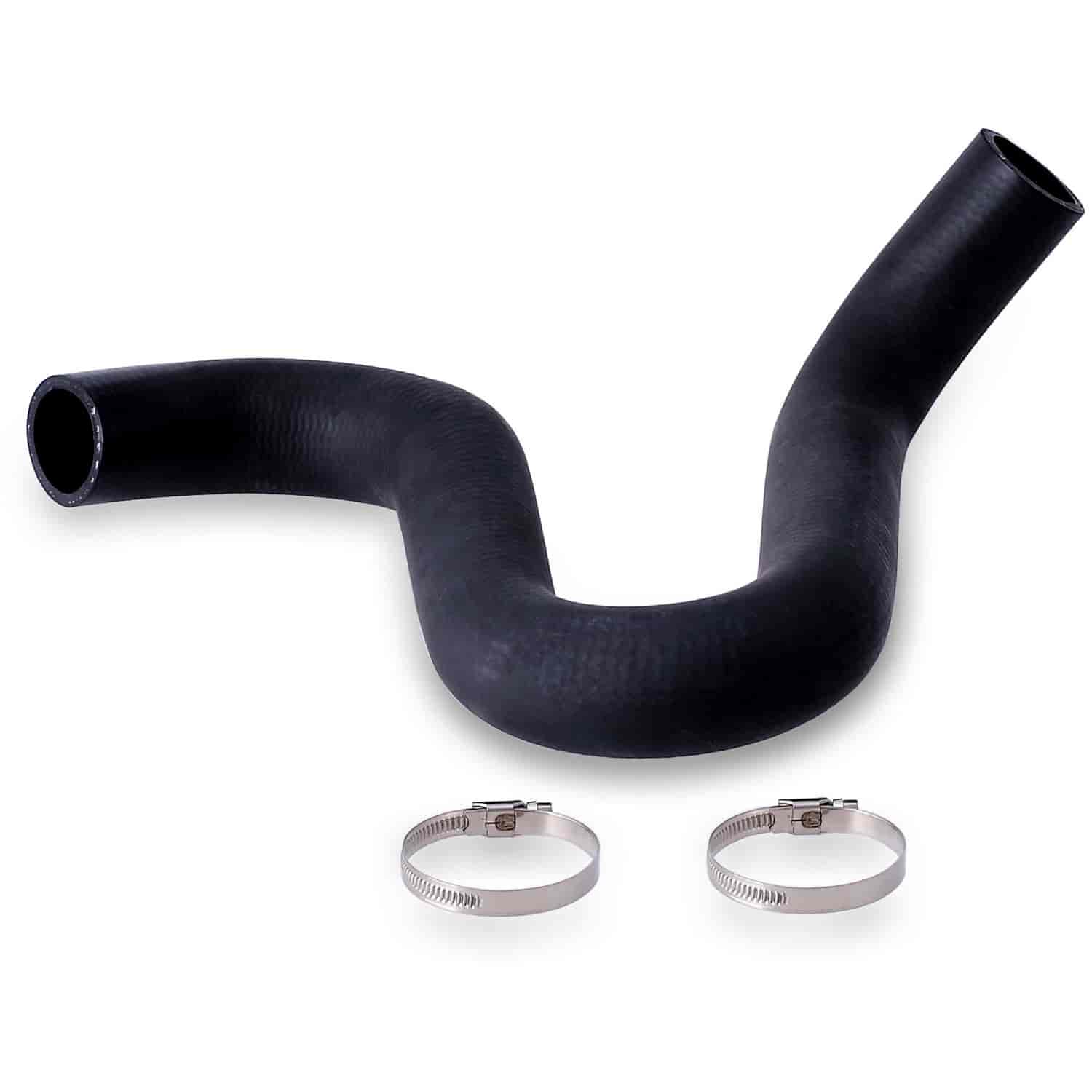

  • (1) Lower Radiator Hose w/ worm gear clamps
  • (1) Mounting Hardware Set
  • Mishimoto Lifetime Warranty


Part TypeFluid Cooler
BrandMISHIMOTO
Package Height8.0
Package Width24.0
Package Length31.0
Weight33.0 PG
Part CategoryPerformance Parts
Part FitmentDirect Fit
Vendor Part NumberMMOC-MUS8-15T
Package Qty1
Package TypeEA
