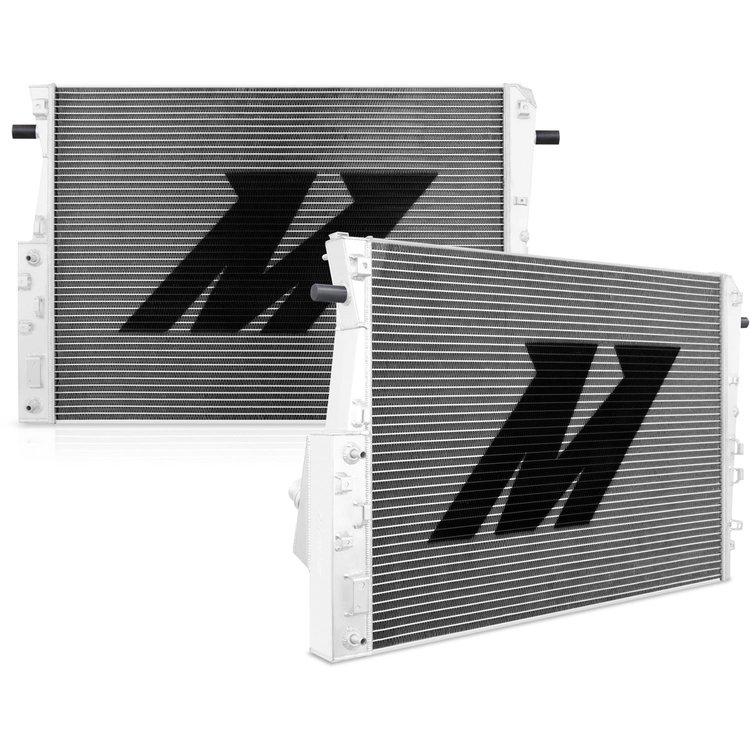

Performance Aluminum Radiator, 2008-2010 Ford F-250-F-550 6.4L PowerStroke
InfoVehicle Info Needed
MISHIMOTOPART NUMBER: 690-MMRADF2D08V2

Performance Aluminum Radiator, 2008-2010 Ford F-250-F-550 6.4L PowerStroke

$1,09595
8 left in stock
ShippingShips on Nov 23, 2026
Lowest PriceLowest Price Guarantee

Items You Need

Aluminum Coolant Reservoir Tank Polished Aluminum Finish

MISHIMOTO

Aluminum Coolant Reservoir Tank Polished Aluminum Finish

Part Number : 690-MMRT-CA
$9695
Liquid Chill Radiator Coolant Additive 4 fl. oz. Bottle

MISHIMOTO

Liquid Chill Radiator Coolant Additive 4 fl. oz. Bottle

Part Number : 690-MMRA-LC
$2095
Liquid Chill Synthetic Engine Coolant Full Strength (Non-Diluted)

MISHIMOTO

Liquid Chill Synthetic Engine Coolant Full Strength (Non-Diluted)

Part Number : 690-MMRALC-FULLF
$8295
16705 Service Pro Antifreeze Concentrate [1 gallon]

GLOCKNER OIL

16705 Service Pro Antifreeze Concentrate [1 gallon]

Part Number : 708-16705
$1999

Ford
Performance Aluminum Radiator
  • 2008-2010 Ford F-250-F-550 6.4L PowerStroke
  • 45.700 in. x 28.700 in. x 8.900 in. Overall
  • 37.010 in. x 27.480 in. x 2.760 in. Core
  • 2-Row
  • Factory-Style Quick Connect Inlet/Outlet

    Tired of constantly filling your 6.4 Powerstroke radiator with coolant because you have a leaking radiator? The engineers at Mishimoto have been hard at work designing an all-aluminum 6.4 radiator to put an end to puddles of coolant under your truck. The Mishimoto 6.4 Powerstroke radiator is constructed from high-quality aircraft-grade aluminum with a 100% brazed aluminum core, TIG-welded to aluminum end tanks for superior durability and longevity. 6.4L Powerstroke radiators have many different mounting designs than their predecessors, with two side mounting pegs that attach the radiator to the upper support. On the factory Ford 6.4L radiator, solid side mounting pegs transfer force from the truck directly to the radiator, causing failures. The engineers at Mishimoto designed rubber mounting pegs, specifically for this truck, to reduce the flex force aimed at the 6.4L radiator end tanks. This aluminum 6.4L Powerstroke radiator retains factory fitment for an easy installation process and includes a magnetic drain plug to catch any debris in your cooling system. Pair this 6.4L radiator with the Mishimoto 6.4L Powerstroke Silicone Coolant Hose Kit for the most durable cooling solution around. As with all their Powerstroke performance parts, this Ford 6.4L radiator is protected by the Mishimoto Lifetime Warranty.

    Features:

    • Increased Coolant Capacity - Factory Radiator: 1.25 Gallons; Mishimoto Radiator 2.5 Gallons
    • Version 2 product design
    • 6.4L Powerstroke
    • Incorporates co-molded aluminum/rubber mounting pegs to reduce the truck's torque transfer to the radiator
    • Incorporates internally strutted tubes in the top and bottom 8 rows for increased strength against high pressure and temperature
    • Strengthened top and bottom core support plates prevent core torquing and bending
    • 100% increase in coolant capacity

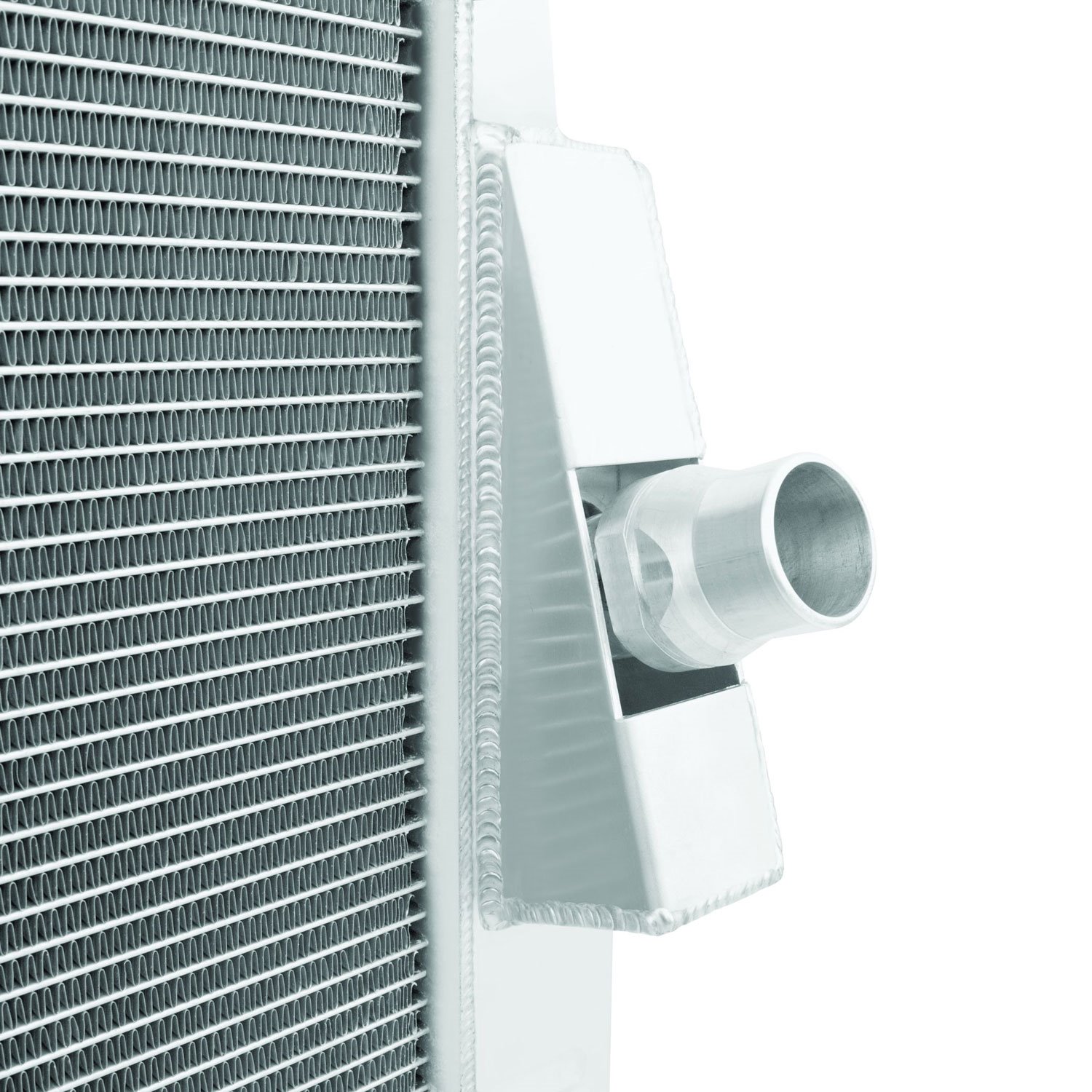

    • CNC-machined factory-style quick-disconnect inlet and outlet
    • 100% brazed aluminum core
    • TIG-welded to perfection
    • Includes magnetic drain plug
    • U.S. Patent Number: D717,702 S
    • Mishimoto Lifetime Warranty





    • Direct Replacement, High-Performance Aluminum Radiators

      Whether you're a daily driver searching for a dependable quality upgrade from your OEM unit, or you're a racer who needs a lightweight, high-performance radiator, Mishimoto has just what you're looking for. Mishimoto performance aluminum radiators are the perfect addition to any street, show, or track vehicle. Fully TIG welded for enhanced durability and polished to a mirror finish, all-aluminum radiators provide a significant increase in cooling efficiency, so you can feel confident in increasing the power levels of your vehicle.

      Show More

    Part TypeRadiator
    Product LineMishimoto Performance Truck Aluminum Radiators
    BrandMISHIMOTO
    Package Height11.0
    Package Width31.2
    Package Length48.5
    Weight57.75 PG
    Part CategoryPerformance Parts
    PositionCenter
    Part FitmentDirect Fit
    Vendor Part NumberMMRAD-F2D-08V2
    Package Qty1
    Package TypeEA
