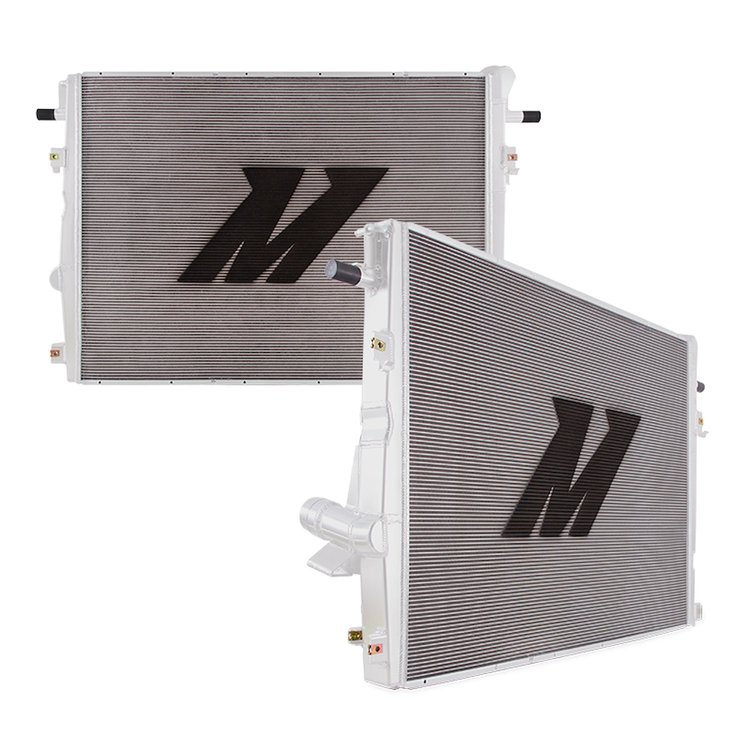

Performance Aluminum Radiator for 2011-2016 Ford F250-F550 6.7L PowerStroke [Primary Radiator]
InfoVehicle Info Needed
MISHIMOTOPART NUMBER: 690-MMRADF2D11V2

Performance Aluminum Radiator for 2011-2016 Ford F250-F550 6.7L PowerStroke [Primary Radiator]

$1,19995
ShippingShips Today
Lowest PriceLowest Price Guarantee

Ford
Performance Aluminum Radiator
  • 2011-2016 Ford F250-F550 6.7L PowerStroke Primary Radiator
  • 48.900 in. x 30.200 in. x 8.000 in. Overall
  • 38.380 in. x 27.750 in. x 1.890 in. Core
  • 2-Row
  • Factory-Style Quick Connect Inlet/Outlet

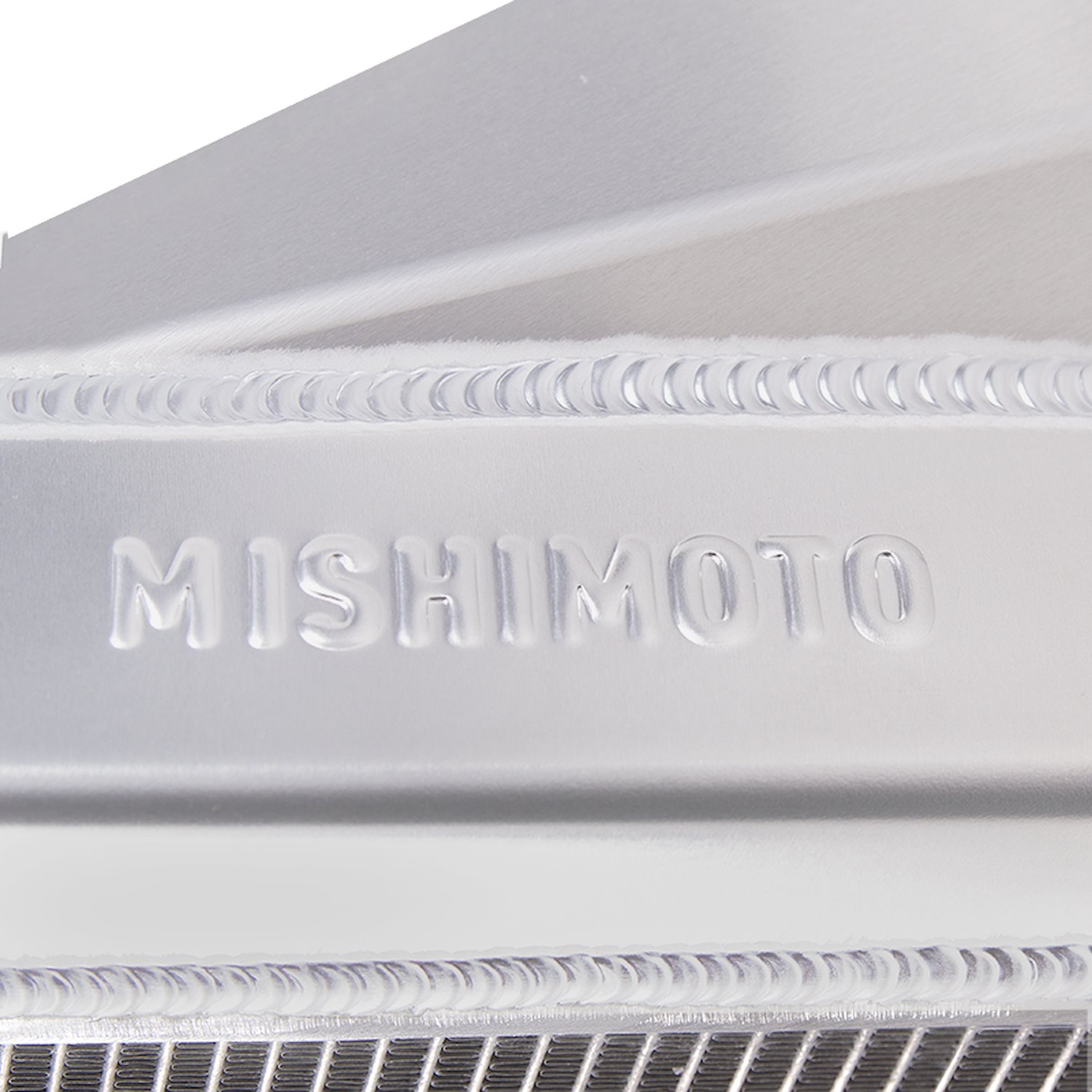

    The 6.7L Ford Powerstroke is plagued with radiator and cooling issues, with no effective solution available. Upgrade your truck with the Mishimoto 6.7 Powerstroke Aluminum Radiator to put an end to puddles of coolant under your truck. This 6.7 Powerstroke radiator is constructed from high-quality aircraft-grade aluminum with a 100% brazed aluminum core. Mishimoto 6.7 Powerstroke aluminum radiator features strong TIG-welded aluminum end tanks for superior durability and longevity that will keep your 6.7 Powerstroke on the road and out of the shop. The Mishimoto Ford 6.7 Powerstroke aluminum radiator retains factory fitment for an easy installation process and includes a Mishimoto M12 x 1.5 Magnetic Oil Drain Plug to catch any debris in your cooling system. As with all their Powerstroke performance parts, this aluminum radiator is protected by the Mishimoto Lifetime Warranty.

    Features:

    • Direct fit for the 6.7L Powerstroke
    • 37% increase in coolant capacity
    • 20% increase in fin area
    • 10% thicker core than factory
    • 100% brazed aluminum core
    • CNC-machined, factory-style, quick-disconnect inlet and outlet
    • TIG-welded to perfection
    • Includes magnetic oil drain plug
    • U.S. Patent Number: D717,218 S
    • Mishimoto Lifetime Warranty
  • Part TypeRadiator
    BrandMISHIMOTO
    Package Height10.0
    Package Width32.0
    Package Length48.0
    Weight30.0 PG
    Part CategoryPerformance Parts
    Core Thickness1.89 in (48.006 mm)
    Core Width27.75 in (704.85 mm)
    Radiator MaterialAluminum
    Drain Valve IncludedYes
    Row Quantity2
    Outlet AttachmentQuick Disconnect
    QuantitySold individually
    Fan IncludedNo
    Inlet AttachmentQuick Disconnect
    Radiator StyleCrossflow
    Core Height38.38 in (974.852 mm)
    Vendor Part NumberMMRAD-F2D-11V2
    Package Qty1
    Package TypeEA
