Vehicle Info NeededMISHIMOTOPART NUMBER: 690-MMTC-K2-14

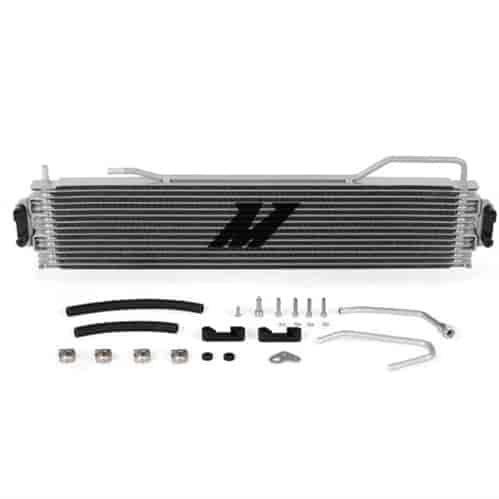

Transmission Fluid Cooler for 2014-2018 GM 1500 Series Trucks Gas V8
$53095
More than 10 available
Ships Today
Lowest Price GuaranteeGM Truck
Transmission Fluid Cooler2014-2019 GM 5.3L, 6.2L 14 Row Silver Cooler Finish
Mishimoto Transmission Oil Cooler Includes:
- (1) Stacked-Plate Transmission Cooler
- (2) Transmission Cooler Lines
- (2) Transmission Cooler Adapter Lines
- (2) Pre-Installed CNC-Machined Aluminum Mounting Brackets
- (2) CNC-Machined Aluminum Mounting Brackets
- (1) Removable Thermal Bypass Valve Delete
- (1) Ambient Air Temperature Sensor Relocation Bracket
- (1) Drilling Template
- (1) Installation Note Card
- Mounting Hardware
Installation Notes:
Drilling two holes into the plastic factory radiator shroud is required to install the adapter lines for this transmission oil cooler.
2014 model year vehicles will require the ambient air temperature sensor to be relocated prior to installation.
Part TypeFluid Cooler
BrandMISHIMOTO
Package Height4.0
Package Width17.0
Package Length37.0
Weight11.0 PG
Part CategoryPerformance Parts
Core Thickness1.25 in (31.75 mm)
Number Of Cooling Rows14
Core Width27 in (685.8 mm)
QuantitySold as a kit
Cooler MaterialAluminum
Cooler ConstructionStacked plate
Part FitmentDirect Fit
Core Height6 in (152.4 mm)
Cooler FinishNatural
Vendor Part NumberMMTC-K2-14
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
