GM Style
Distributor and Plug Wire Kit
  • GM LS
  • Non-Functional (Acts As Wire Pass-Through Only)
  • 9 ft. Long 7 mm Plug Wires
  • Cast Aluminum
  • Black Finish

    Parts Breakdown

    LS distributor and plug wire set is designed to provide a retro look to a modern GM LS engine. The plug wires will connect remote mount coils to the distributor body that acts as a pass-through for the spark plug wires, providing vintage aesthetics.

    Features

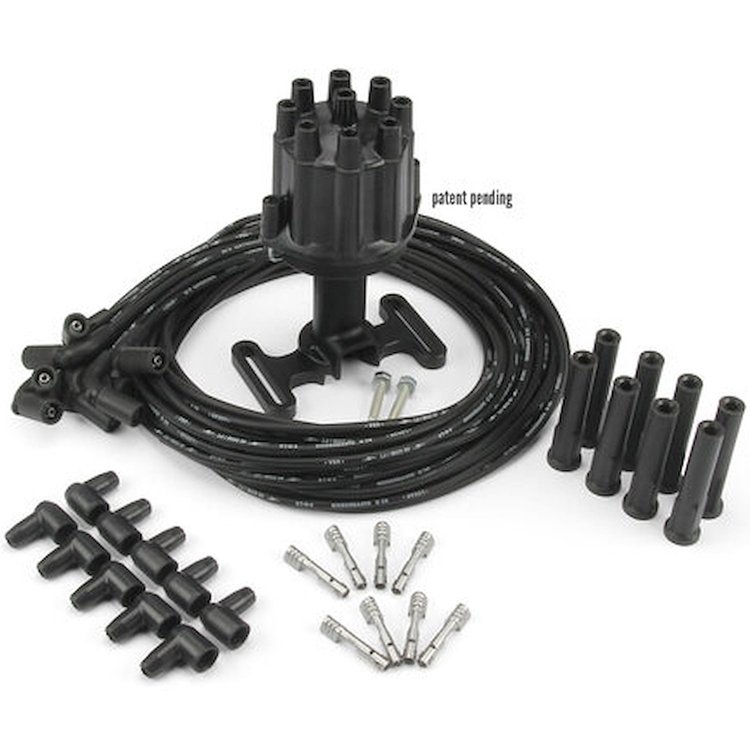

    • Includes distributor housing, cap, terminals, wires with pre-installed 90-degree coil boots, and unterminated spark plug boots (90-degree and straight)
    • Plug wires feature a Kevlar spiral core, High-temp silicone boots, with 40 ohms per foot of resistance

    Notes

    • Distributor bolts to rear two bolts of the valley plate, check clearance with the firewall for fitment
    • Distributor will not fit valley plates with raised ribs or oil pressure sender boss
    • Wires are not assembled and will require plug wire crimpers to complete the install
    • Hide Unsightly LS Ignition Coils

      Modern Classic has quality parts to make a GM LS engine appear like a classic powerplant by remote mounting the ignition coils. Coil relocation is great for those that want vintage looks and the modern performance from a newer engine. Remote mounting the coils will clean up the engine bay and improve the underhood aesthetics by allowing the engine to have a clean and retro appearance.

    Part TypeDistributor
    Product LineModern Classic Ignition Coil Relocation
    BrandMODERN CLASSIC
    Package Height6.0
    Package Width15.0
    Package Length15.0
    Weight7.5 PG
    Part CategoryPerformance Parts
    Part FitmentSemi Universal
    Vendor Part NumberGMLS4002
    Package Qty1
    Package TypeEA
