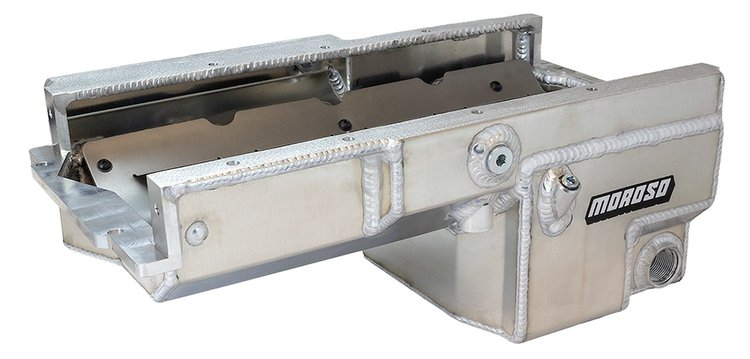

20135 Oil Pan for Dart LS Next and LS Next 2 Non-Skirted Engine Blocks [-16 AN External Wet Sump, Drag Race, Aluminum]
InfoVehicle Info Needed
MOROSOPART NUMBER: 710-20135

20135 Oil Pan for Dart LS Next and LS Next 2 Non-Skirted Engine Blocks [-16 AN External Wet Sump, Drag Race, Aluminum]

$1,35499
ShippingShips on 09/17/2026
Lowest PriceLowest Price Guarantee

Oil Pan
Oil Pan
  • Dart LS Next and LS Next 2 Non-Skirted Engine Blocks
  • -16 AN External Wet Sump
  • Drag Race
  • 6 Quart Capacity
  • 8 in. Deep
  • Aluminum

    Moroso 20135 Oil Pan Features:

    • Clears 4.100 in. stroke with most steel rods
    • Driver/left side -16 AN female pick-up
    • Integrated trap door baffle, louvered windage tray and full-length power kick-out for superior oil control
    • Designed for use with Dart LS Next non-skirted blocks; fully fabricated aluminum construction with billet end caps eliminates the need for billet adapter rails for installation
    • 1/4 in. NPT dipstick provision
    • Dual -8 AN drain-back provisions

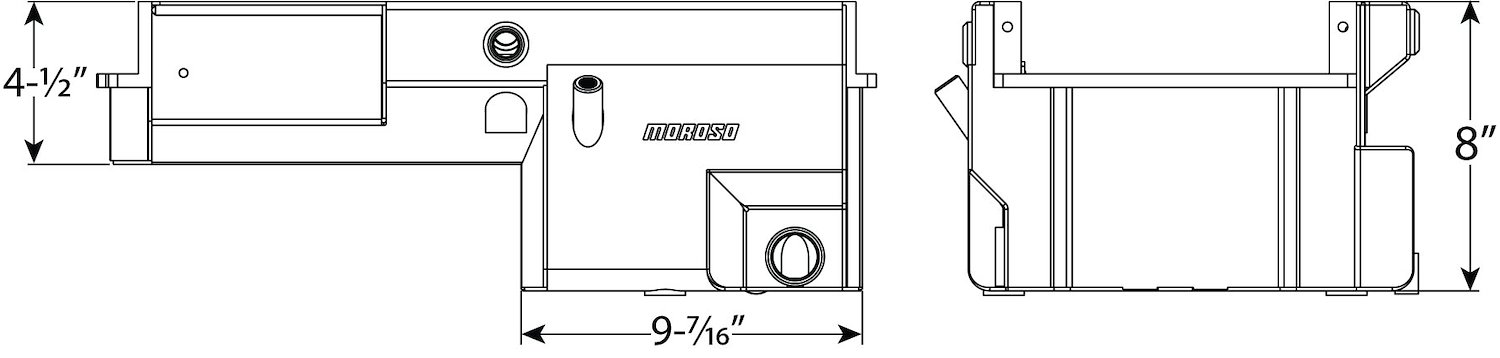

    • Check Dimensions For Chassis Fitment
    • Race-Engineered Oil Control for LS Next Performance

      Moroso Dart LS Next Oil Pans are designed with Moroso’s extensive motorsports expertise, delivering precise oil management tailored specifically for Dart LS Next engine platforms. Engineered from high-quality materials and validated through real-world racing conditions, these pans are built to control oil movement, minimize aeration, and maintain reliable lubrication at high rpm and under heavy load. With durable construction, careful attention to fitment, and a focus on consistent performance, Moroso oil pans provide a dependable foundation for LS Next engines in demanding street, strip, and competition applications.

    Part TypeOil Pan
    Product LineMoroso Dart LS Next Oil Pans
    BrandMOROSO
    Package Height9.12
    Package Width17.25
    Package Length24.62
    Weight17.85 PG
    Part CategoryPerformance Parts
    Oil Pan Capacity6 qt
    Oil Pan MaterialAluminum
    Maximum Stroke With Oe Rod4.10 in.
    Dipstick ProvisionYes
    BaffledYes
    Sump StyleWet
    Windage Tray IncludedYes
    Oil Pan FinishNatural
    Part FitmentSemi Universal
    Vendor Part Number20135
    Package Qty1
    Package TypeEA
