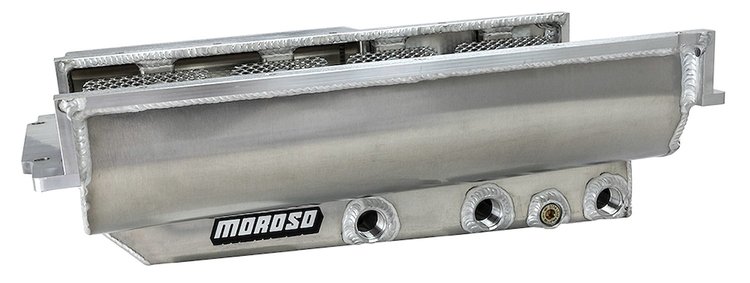

20136 Oil Pan, Dart LS Next/Next 2 Non Skirted, Dry Sump, Drag Race, 3 P/U, Aluminum
InfoVehicle Info Needed
MOROSOPART NUMBER: 710-20136

20136 Oil Pan, Dart LS Next/Next 2 Non Skirted, Dry Sump, Drag Race, 3 P/U, Aluminum

$1,39599
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Oil Pans
Oil Pan
  • Dart LS Next/Next 2 Non Skirted
  • Dry Sump
  • Drag Race
  • (3) -12 AN Pickups
  • 7.500 in. Deep
  • Aluminum

    Moroso 20136 Features:

    • Fits: Drag Race, Check Dimensions For Chassis Fitment
    • Clears 4.100 in. stroke with most steel rods
    • Integrated windage screen and full-length power kick-out for superior oil control
    • Designed for use with Dart LS Next non-skirted blocks; fully fabricated aluminum construction with billet end caps eliminates the need for billet adapter rails for installation
    • (3) -12 AN pickups, driver/left side
    • Compatible with Moroso 22764 pump bracket and No. 22385 dry sump pump
    • Race-Engineered Oil Control for LS Next Performance

      Moroso Dart LS Next Oil Pans are designed with Moroso’s extensive motorsports expertise, delivering precise oil management tailored specifically for Dart LS Next engine platforms. Engineered from high-quality materials and validated through real-world racing conditions, these pans are built to control oil movement, minimize aeration, and maintain reliable lubrication at high rpm and under heavy load. With durable construction, careful attention to fitment, and a focus on consistent performance, Moroso oil pans provide a dependable foundation for LS Next engines in demanding street, strip, and competition applications.

    Part TypeOil Pan
    Product LineMoroso Dart LS Next Oil Pans
    BrandMOROSO
    Package Height10.75
    Package Width12.0
    Package Length25.5
    Weight10.1 PG
    Part CategoryPerformance Parts
    Oil Pan MaterialAluminum
    Oil Pan Depth7.500 in
    Sump StyleDry sump
    Pickup IncludedNo
    QuantitySold Individually
    Oil Pan StyleFabricated
    Part FitmentSemi Universal
    Stroker ClearancedYes
    Vendor Part Number20136
    Package Qty1
    Package TypeEA
    Some parts are not legal for use in California or other states with similar laws / regulations
