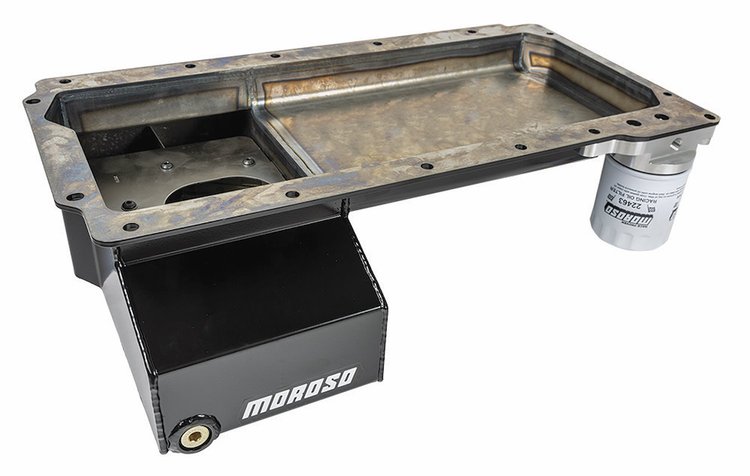

Street/Strip Oil Pan Fits 2004-2006 Pontiac GTO
InfoVehicle Info Needed
MOROSOPART NUMBER: 710-20138

Street/Strip Oil Pan Fits 2004-2006 Pontiac GTO

$52352
1 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

GM LS Series
Street/Strip Oil Pan
  • 2004-2006 Pontiac GTO
  • Fits GM LS Engine Conversions Requiring a Front Sump Oil Pan with a Spin-on Filter
  • Wet Sump 6.5-Quart Capacity
  • 6" D x 14" W x 6.75" L
  • Baffled
  • Black Finish

    Parts Breakdown

    • Use with O.E.M. Oil Pump Pickup, GM 12572654
    • 710-22462 or O.E.M. Spin-On Oil Filter
    • Accepts GM 12558253 Windage Tray with modification
    • Thick Precision Laser-cut Steel Rail
    • Clears 4.25" Stroke
    • Race-proven Diamond Shape 4-Trap Door Assembly w/Removable Anti-slosh Baffle
    • Oil Pan Design Moves Oil Away from the Rotating Assembly for Oil Control and Horsepower Saving
    • Oil Pan Includes a Billet Aluminum Spin-On Oil Filter Adapter That Accepts a 22mm Thread. Moroso 22463 or O.E.M Oil Filter To Be Mounted In The Stock Location

    Applications:

    • Fits GM LS Engine Conversions that require a Front Sump Oil Pan with a Spin-on Filter (check dimensions for clearance)
    • Part TypeOil Pan
    BrandMOROSO
    Package Height8.8
    Package Width15.6
    Package Length24.2
    Weight18.73 PG
    Part CategoryPerformance Parts
    Maximum Stroke With Oe Rod4.25 in (107.95 mm)
    Oil Pan Depth6 in (152.4 mm)
    Part FitmentDirect Fit
    Vendor Part Number20138
    Package Qty1
    Package TypeEA
