Made in USA

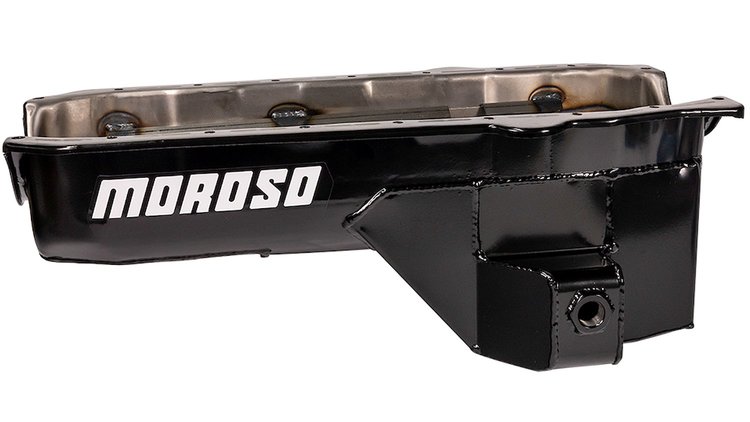

20179 Road Race Oil Pan 1993-1997 GM F-Body/Impala w/Small Block Chevy Engine
InfoVehicle Info Needed
MOROSOPART NUMBER: 710-20179

20179 Road Race Oil Pan 1993-1997 GM F-Body/Impala w/Small Block Chevy Engine

$48399
ShippingShips on 09/21/2026
Lowest PriceLowest Price Guarantee

Small Block Chevy
Road Race Oil Pan
  • 1993-1997 GM F-Body/Impala w/Small Block Chevy Engine
  • 7.5" Deep
  • Road Race Baffled
  • Clear Zinc Finish

    Engine Application: Pre-1980 with driver's side dipstick or 1980-1985 with passenger-side dipstick, 2 piece seal & Dart SHP engine blocks

    Recommended Pickups:

    • 710-24212 Fits 710-22099, 710-22101 or M55 style pumps
    • 710-24213 Fits 710-22109, 710-2210922111 or M55HV style pumps

    Features:

    • 5.5-Quart Capacity
    • Wet Sump
    • Kicked-out sump and trap door baffling
    • Clears 4.125" stroke
    • Crank scraper and removable windage screen
    • 20 mm fitting for oil level sensor
    • Optional 20 mm plug 710-22738 available for use when the factory low oil warning sensor is not going to be utilized
    • Clears stock exhaust and Hedman, Hooker, Borla and similar-type headers
    • Dipstick provision
    • Part TypeOil Pan
    BrandMOROSO
    Package Height8.75
    Package Width15.25
    Package Length23.37
    Weight16.0 PG
    Part CategoryPerformance Parts
    Part FitmentSemi Universal
    Vendor Part Number20179
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
    Please click here to download the instructions PDF file
