Made in USA

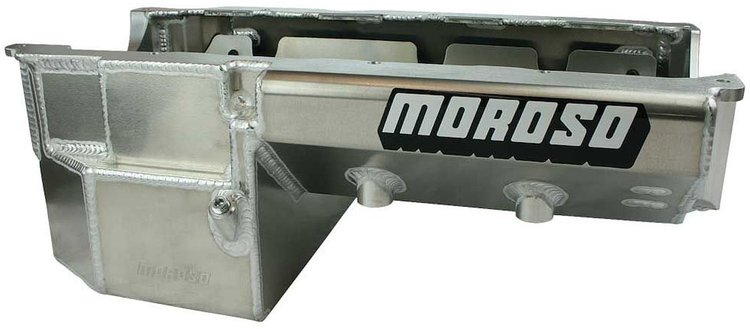

20382 Drag Race Oil Pan with Divided Tray, Big Block Chevy Gen-V/VI - Wet Sump
InfoVehicle Info Needed
MOROSOPART NUMBER: 710-20382

20382 Drag Race Oil Pan with Divided Tray, Big Block Chevy Gen-V/VI - Wet Sump

$1,06899
ShippingShips on Sep 08, 2026
Lowest PriceLowest Price Guarantee

GM
Drag Race Oil Pan with Divided Tray
  • Big Block Chevy Gen-V/VI
  • Wet Sump
  • 7-Quart Capacity
  • Double Kick-Out
  • 8 in. Depth
  • Fabricated Aluminum

    Moroso 20382 Dimensions

    Features:

    • Includes (2) O-ring magnetic drain plugs
    • Fits Competition Eliminator, Super Gas, Super Comp, and Bracket applications
    • Works with Moroso spur gear billet oil pumps
    • For use with a 168-tooth flywheel combination
    • Billet aluminum end seals provide a consistent sealing surface to an engine billet front cover and rear main caps
    • Clearance for up to 4.750 in. stroke with aluminum rods and wide main cap
    • Maximum oil control through a solid-louvered windage tray with main cap partitions

    Notes:

    • Installation may require modifications to the vehicle crossmember
    • The oil pan capacity does NOT include the oil filter
    • Recommended oil pump pickup - Moroso 710-24440
    • Recommended oil pumps - Moroso Billet Standard Volume 710-22164 or Billet High-Volume 710-22163
    • Part TypeOil Pan
    BrandMOROSO
    Package Height12.0
    Package Width13.0
    Package Length27.0
    Weight16.0 PG
    Part CategoryPerformance Parts
    Oil Pan Capacity7 quarts
    Dipstick ProvisionYes
    Maximum Stroke4.750 in.
    Sump StyleWet
    Pickup IncludedNo
    Oil Pan TypeFabricated
    QuantitySold individually
    Oil Pan FinishNatural
    Bolts/Studs IncludedNo
    Drain Plug IncludedYes
    Dipstick IncludedNo
    Oil Pump IncludedNo
    Oil Pan MaterialAluminum
    Gaskets IncludedNo
    Oil Pan Depth8 in (203.2 mm)
    Sump LocationRear
    Crank Scraper IncludedNo
    Windage Tray IncludedYes
    Oil Pan StyleDrag race
    Part FitmentSemi Universal
    Kicked OutYes
    Stroker ClearancedYes
    Vendor Part Number20382
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
    Please click here to download the instructions PDF file
