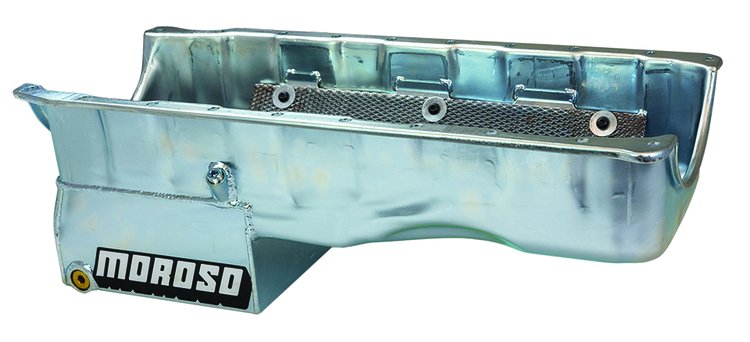

Street/Strip Oil Pan Big Block Chevy Gen V/VI

Name: Street/Strip Oil Pan Big Block Chevy Gen V/VI
Brand: MOROSO
SKU: 710-20409
Price: 509.99 USD
Availability: InStock

^$509⁹⁹

1 left in stock

Ships Today

Lowest Price Guarantee

Big Block Chevy

Street/Strip Oil Pan

Big Block Chevy Gen V/VI

Kicked-Out Sump

Wet Sump 6.5-Quart Capacity

8" Depth

Clear Zinc Finish

Fits most chassis except 1962-67 Chevy II, V8 Vega/Monza, and 1955-57 Chevy
Sump contains flat sides to prevent header clearance problems
Accepts up to a 4.25" stroke with steel rods and a 4.090" stroke with aluminum rods
Features a crank scraper and uni-directional windage tray for horsepower
Trap door baffling and an anti-climb baffle for oil control under hard acceleration and de-acceleration

Note: Oil pan capacities do not include oil filter capacity

Recommended Pickups:

710-24440 -- Fits Moroso Big Block Chevy Race pumps 710-22149, 710-22150, 710-22159, 710-22160, 710-22162 or M77/M77HV Oil Pumps
710-24441 -- Fits Same Pumps as above but is offset to middle of sump for more consistent oil pressure

High-Performance Oil Pans

Moroso Street/Strip Oil Pans are for street-performance vehicles that occasionally see track time. Some tanks are modified with either a deep or a kicked-out sump for increased capacity to improve oil control under hard acceleration and help the engine run cooler. Moroso has designed these oil pans for simple bolt-on installation in a production chassis.

Part TypeOil Pan

Product LineMoroso Street/Strip Oil Pans

BrandMOROSO

Package Height11.5

Package Width12.5

Package Length27.0

Weight16.5 PG

Part CategoryPerformance Parts

Part FitmentDirect Fit

Vendor Part Number20409

Package Qty1

Package TypeEA
