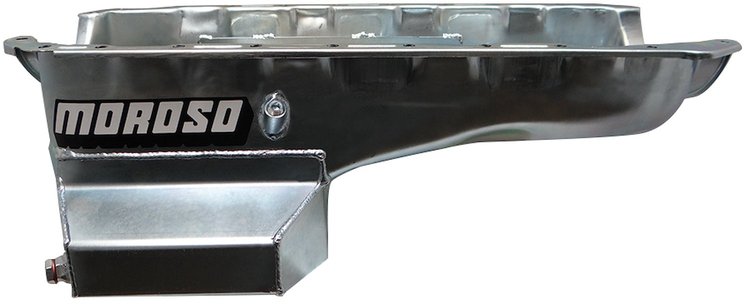

20420 Road Race Oil Pan Big Block Chevy Mark IV Road Race Baffled

Name: 20420 Road Race Oil Pan Big Block Chevy Mark IV Road Race Baffled
Brand: MOROSO
SKU: 710-20420
Price: 568.99 USD
Availability: InStock

^$568⁹⁹

Ships on Sep 08, 2026

Lowest Price Guarantee

Big Block Chevy

Road Race Oil Pan

Big Block Chevy Mark IV

6.5 Quart Capacity

8" Deep

Road Race Baffled

Clear Zinc Finish

Fits Most GM chassis (except 1962-67 Chevy II, V8 Vega/Monza and 1955-57 Chevy)

Recommended Pickups:

710-24440 (Fits: Moroso Big Block Chevy Race Pump 710-22149, 710-22150, 710-22159, 710-22160, 710-22162 or M77/M77HV style pump)

Features:

6.5-Quart Capacity
(3) trap door baffles
(2) runners for oil control in Road Race/Road Race oil pan
Accepts up to a 4.25" stroke with steel rods and a 4.090" stroke with aluminum rods
Built-in crank scraper
Removable screen windage tray
Anti-slosh to free up HP
Compatible with most starter/flywheel combinations

Performance Oil Pans Designed for Road Racing Environments

Moroso has combined their drag racing and oval track experience to develop these Road Race Oil Pans. Each high-performance pan is designed to provide superior oil control when accelerating, braking, or turning in any direction. With fabricated steel construction, thick pan rails, and trap doors that contain the oil in any racing situation, Moroso Road Race Pans supply the right amount of oil to your engine so it can reach its full potential.

Part TypeOil Pan

Product LineMoroso Road Race Oil Pans

BrandMOROSO

Package Height9.7

Package Width18.5

Package Length26.0

Weight16.01 PG

Part CategoryPerformance Parts

Part FitmentSemi Universal

Vendor Part Number20420

Package Qty1

Package TypeEA
