20485K Drag Race Oil Pan Kit, Big Block Chevy Mark IV
InfoVehicle Info Needed
MOROSOPART NUMBER: 710-20485K

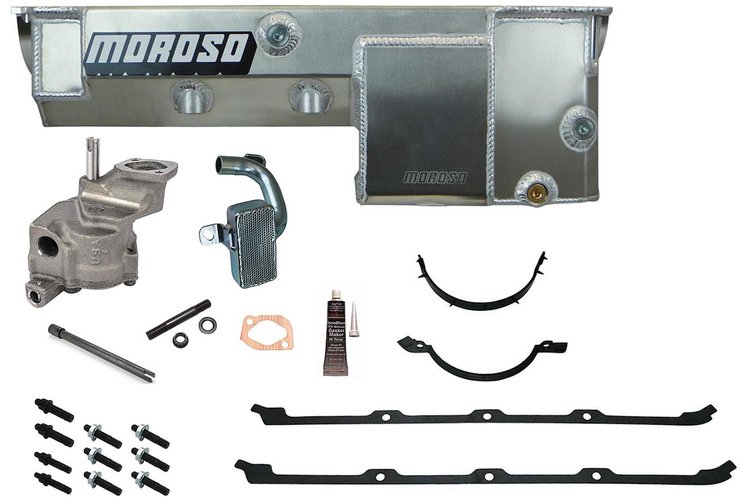

20485K Drag Race Oil Pan Kit, Big Block Chevy Mark IV

$1,23291
ShippingShips on Nov 23, 2026
Lowest PriceLowest Price Guarantee

Items You Need

Gasgacinch 8 oz

JEGS

Gasgacinch 8 oz

Part Number : 555-440-B
$1569$17.09
You Save$1.40
Funnel [8.5 in. Overall Length]

JEGS

Funnel [8.5 in. Overall Length]

Part Number : 555-W4064
$599$6.99
You Save$1.00
Fender Cover with Pocket [23 in. W x 31 1/2 in. L]

JEGS

Fender Cover with Pocket [23 in. W x 31 1/2 in. L]

Part Number : 555-65010
$839$16.99
You Save$8.60
60 LED Work Light

JEGS

60 LED Work Light

Part Number : 555-81927
$2399$31.99
You Save$8.00

GM
Drag Race Oil Pan Kit
  • Big Block Chevy Mark IV
  • Includes:
    • Drag Race Oil Pan
    • Oil Pump Pickup
    • Oil Pan Stud Kit
    • Oil Pan Gasket
    • High-Volume Oil Pump
    • Oil Pump Stud Kit
    • Oil Pump Gasket
    • Oil Pump Driveshaft
    • RTV Silicone

      Kit Includes:

      • (1) Moroso Drag Race Oil Pan - 710-20485
      • (1) Moroso Oil Pump Pickup - 710-24445
      • (1) Moroso Oil Pan Stud Kit - 710-38361
      • (1) Moroso Steel-Reinforced Race-Quality Oil Pan Gasket - 710-93156
      • (1) JEGS High-Volume Oil Pump - 555-23509
      • (1) Moroso Oil Pump Stud Kit - 710-38150
      • (1) JEGS Oil Pump Gasket - 555-23623
      • (1) JEGS High-Strength Oil Pump Driveshaft - 555-23651
      • (1) JEGS Black Hi-Temp RTV Silicone Gasket Maker - 555-28035
    • Oil Pans to Maximize Your Engine's Performance

      Available in both wet and dry sump versions, Moroso Drag Race Oil Pans are intended for the racer looking for maximum horsepower gain and oil control during straight-line acceleration.

      Show More

      Eliminator Pans: For the economy-minded racer. Eliminator oil pans improve oil control for solid horsepower gains. The large power kickout, integral crankshaft scraper, windage tray, and internal baffling ensure quick oil return to the pick-up area under the most severe racing conditions.

      Pro Eliminator Oil Pans: Designed for ultra-high horsepower applications. These box style pans are the result of over 35 years of research and development. Pro Eliminator oil pans offer the right combination of oil control and power-producing features.

      Ultra Pro Dry Sump Oil Pans: For racers who demand the very best! Ultra Pro Dry Sump oil pans offer the ultimate in dry sump technology and are available for 3, 4, 4-1/2, and 5 stage systems. These oil pans feature a maximum size power kickout, block high scraper, uni-directional windage tray screen, and special baffling.

      Super Fueler Oil Pans: These oil pans were the first to break the 300 MPH barrier for nitro-burning and alcohol dragsters and funny cars. Super Fuel oil pans are available for both Chrysler and aftermarket blocks.

      Note: All steel pans will have a clear zinc finish.

    Part TypeOil Pan
    Product LineMoroso Drag Race Oil Pans
    BrandMOROSO
    Part CategoryPerformance Parts
    Maximum Stroke With Oe Rod4.75 in (120.65 mm)
    Oil Pan Depth8 in (203.2 mm)
    Part FitmentSemi Universal
    Package Qty1
    Package TypeEA
